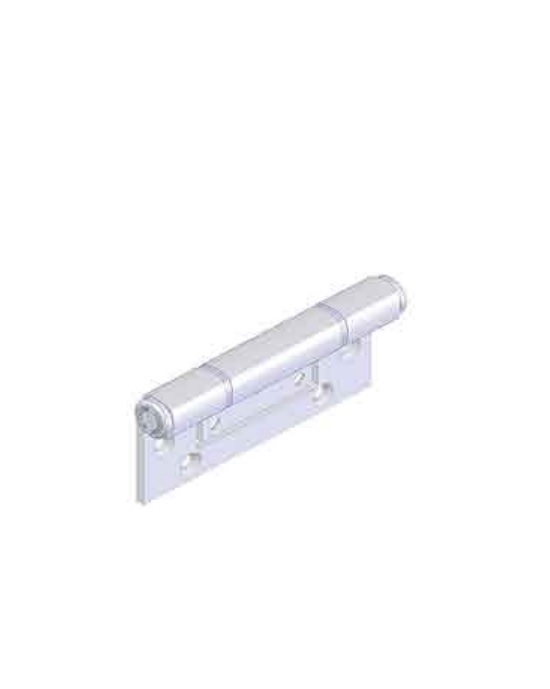

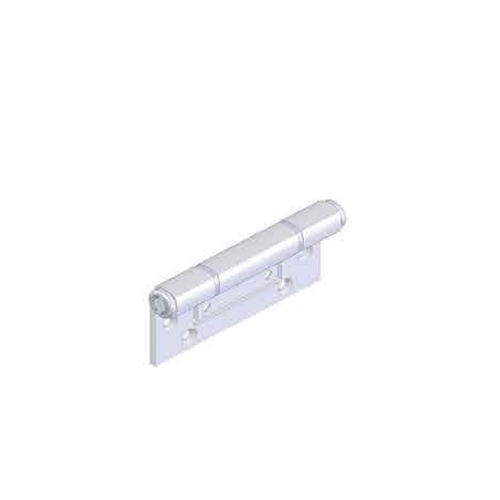

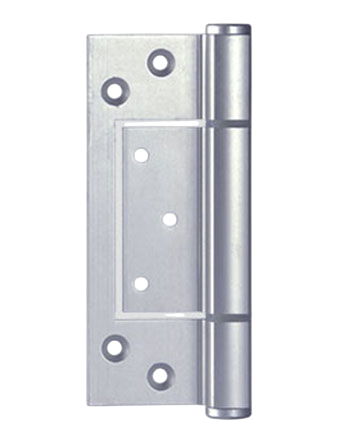

10 Pack McCallum Aluminium Offset Interfold Hinge A107RLF
A107

Application:

• Aluminium doors in high usage situations
• Suitable for some timber door applications
• Offset knuckle

Specification:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Squareline - Heavy Duty
• Knuckle: Round
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 80kg

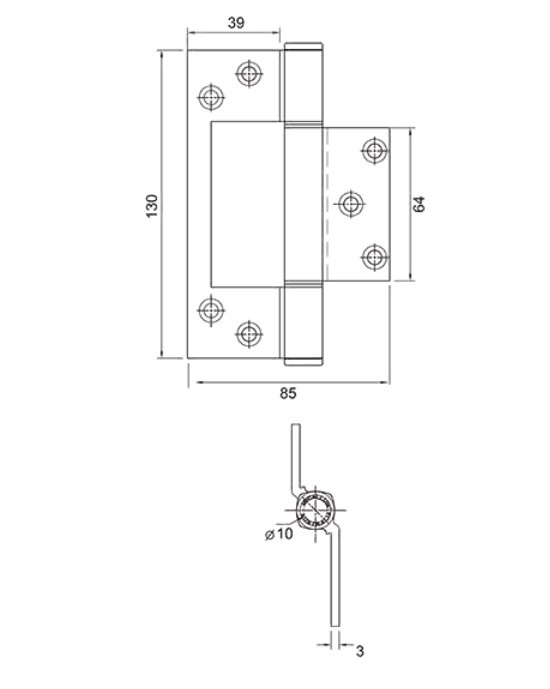

• Dimensions: 130mm x 39mm

Installation Guide Only:

• Door Thickness: Minimum 40mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (Height) x 820 (Width)
• Locator allows for fast fixing

Fixing:

• Fastening Screws supplied
• Pop rivets are not recommended.

Finish:

• SNA - Satin Natural Anodised
• Black - Black Powder Coat
• White - White Powder Coat
