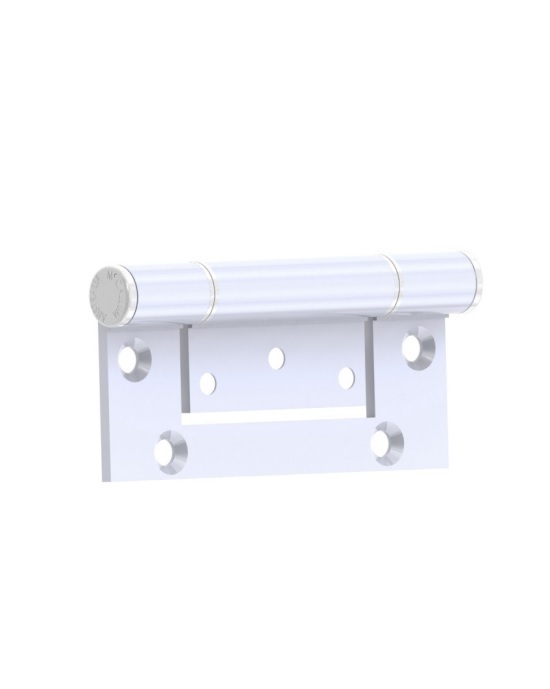

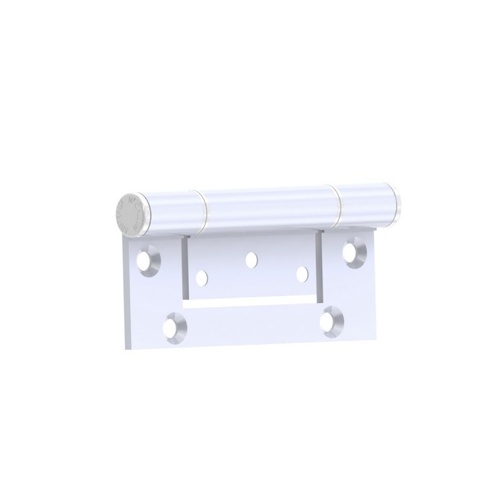

10 Pack McCallum Aluminium Offset Interfold Hinge White A67RF
A165WHT

• 10 x Hinge

Application:

• Aluminium doors in medium usage situations

Specification:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Round
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 20kg

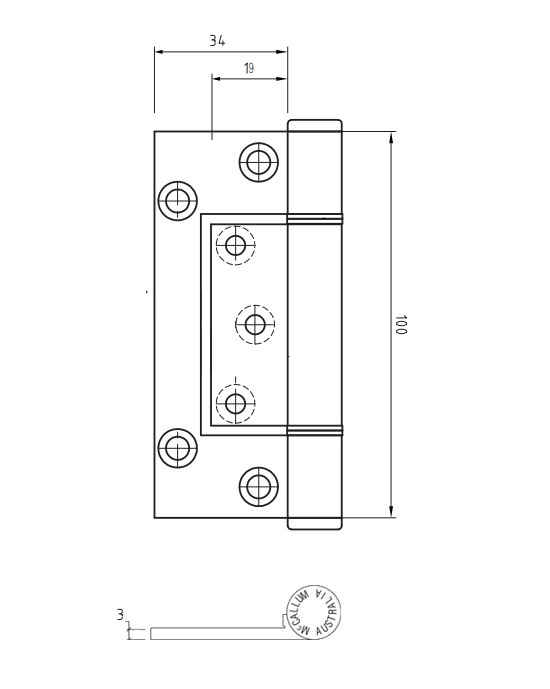

• Size: 100mm

Installation Guide Only:

• Door Thickness: Minimum 32mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (Height) x 820 (Width)
• Locator allows for fast fixing

Fixing:

• Fastening Screws supplied
• Pop rivets are not recommended.

Finish:

• White - White Powder Coat
