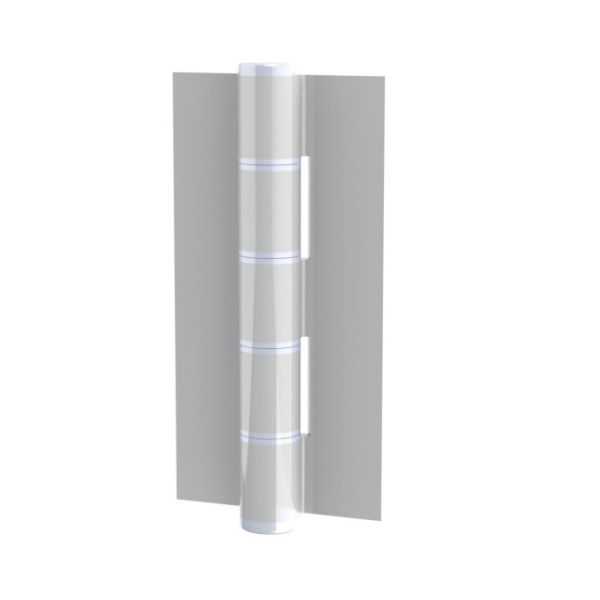

10 Pack McCallum Aluminum Concealed Butt Hinge Satin AB4526
A140

• 10 x Hinge w/ screws

Application:

• Suitable for Aluminum doors and partitions in medium usage
  situations

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa
• Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Round
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 20 kg (turn over for further information)
• Finish: Satin Natural Anodised

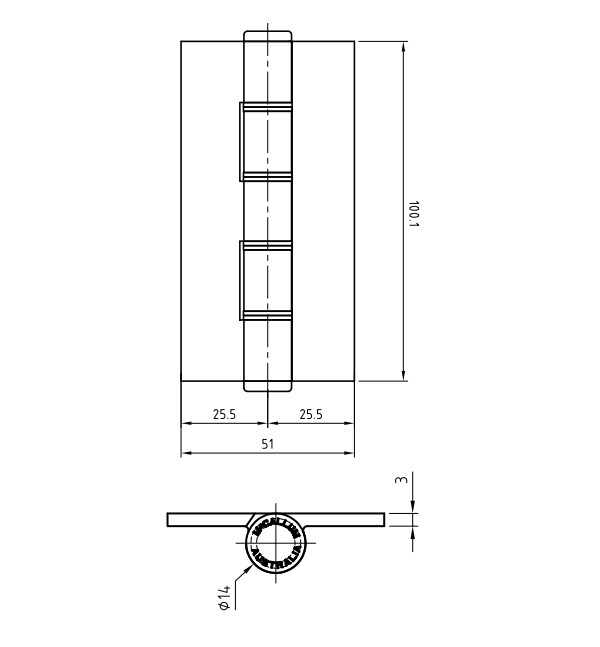

• Dimensions: 100mm x 52mm

Installation Guide Only:

• Door thickness: Minimum 35mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040mm (H) x 820mm (W)

Fixing:

• Fastening screws not supplied
• Concealed fix
• Pop rivets are not recommended
