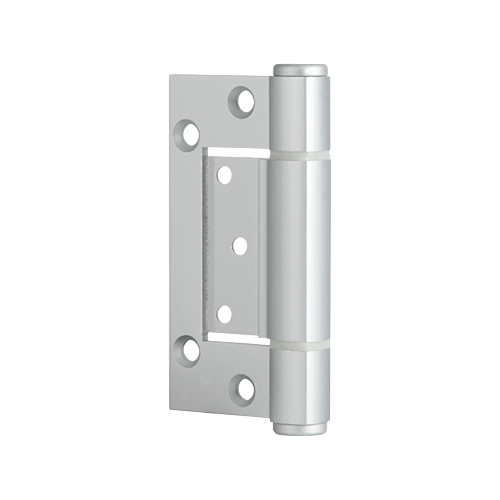

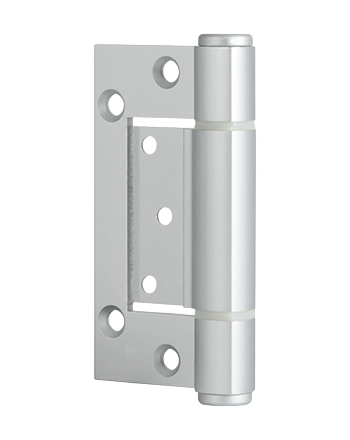

10 Pack McCallum Heavy Duty Aluminium Interfold Hinge Satin Natual Anodised A74HBF
A174

• 10 x Hinge

Application:

• Suitable for Aluminum Entrance Doors in high usage situation
• Suitable for some timber door applications
• Pre-drilling of the holes in the timber may be required

Specification:

• Alloy: High strength T.6 minimum tensile 254 mpa
• Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Squareline - Heavy Duty
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 40 kg
• Size: 100mm

Installation Guide Only:

• Door thickness: Minimum 34mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (Height) x 820 (Width)
• Locator allows for fast fixing.
• This Hinge is designed with a 1.0mm (Approx.) offset.
• You need to allow a 4.5mm space between the door and the jamb due to the offset. This may help compensate for a distorted door when closed. The A115 should be considered if an offset hinge is not required.

Fixing:

• Fastening screws supplied
• Pop rivets are not recommended.

Finish:

• SNA - Satin Natural Anodised
