Austyle Smart Digital Door Lever Entrance Set
59406KIT

Smart Lock is designed to perform locking and unlocking operations on a door when it receives such instructions from an authorized device using a wireless protocol and a cryptographic key to execute the authorization process.

Smart Lock Function - allows you to open your door without a physical key. Can be controlled remotely using a smartphone app.

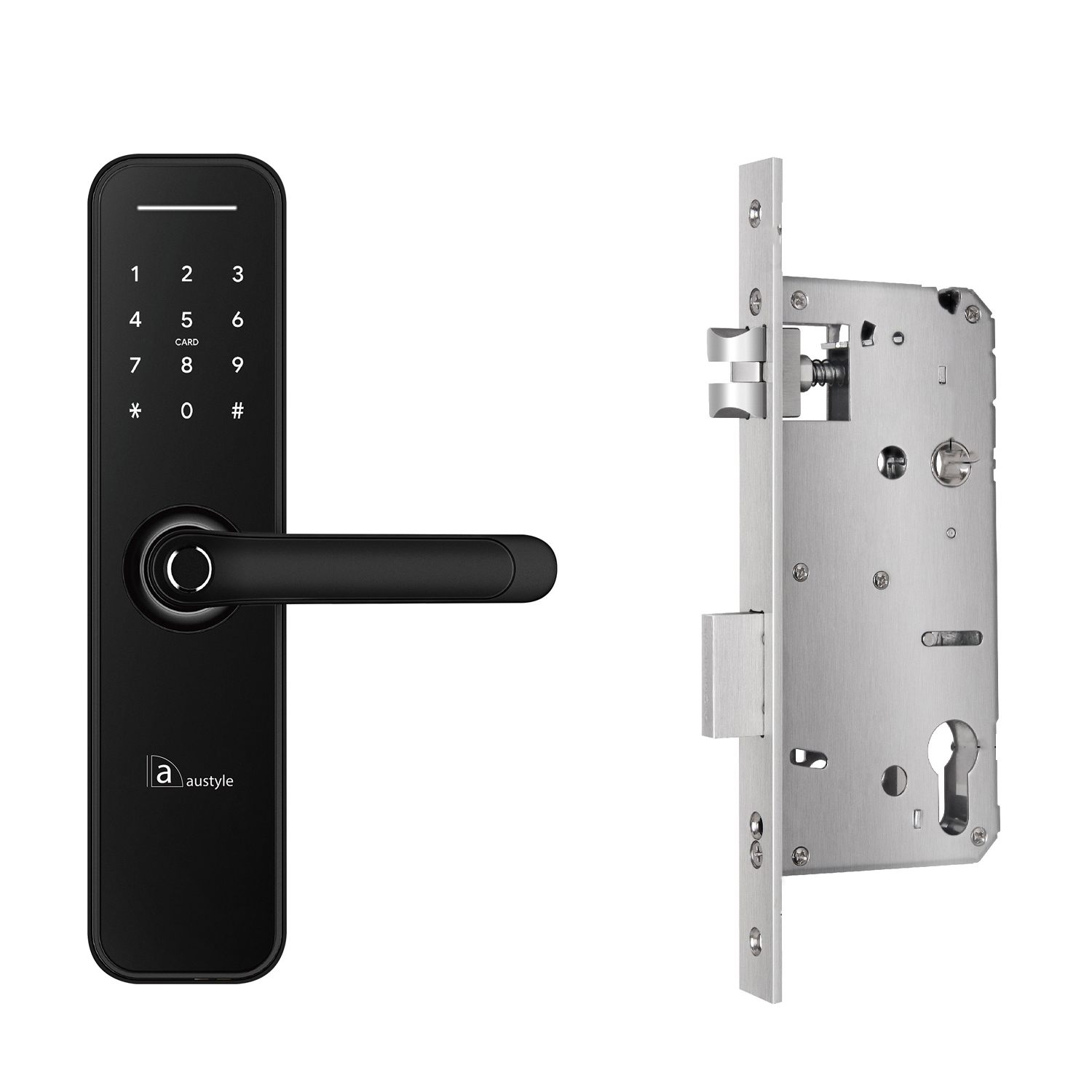

Includes:

• 1 x Austyle Door Entrance Lock Satin Stainless Steel 49429
• 1 x Austyle Digital Lever Latch Set Matt Black 59405

Austyle Door Entrance Lock Set
49429

Features:

• Used in conjunction with Digital Lever 59400 and  59405
• Used with digital lock range 59400 and 59405

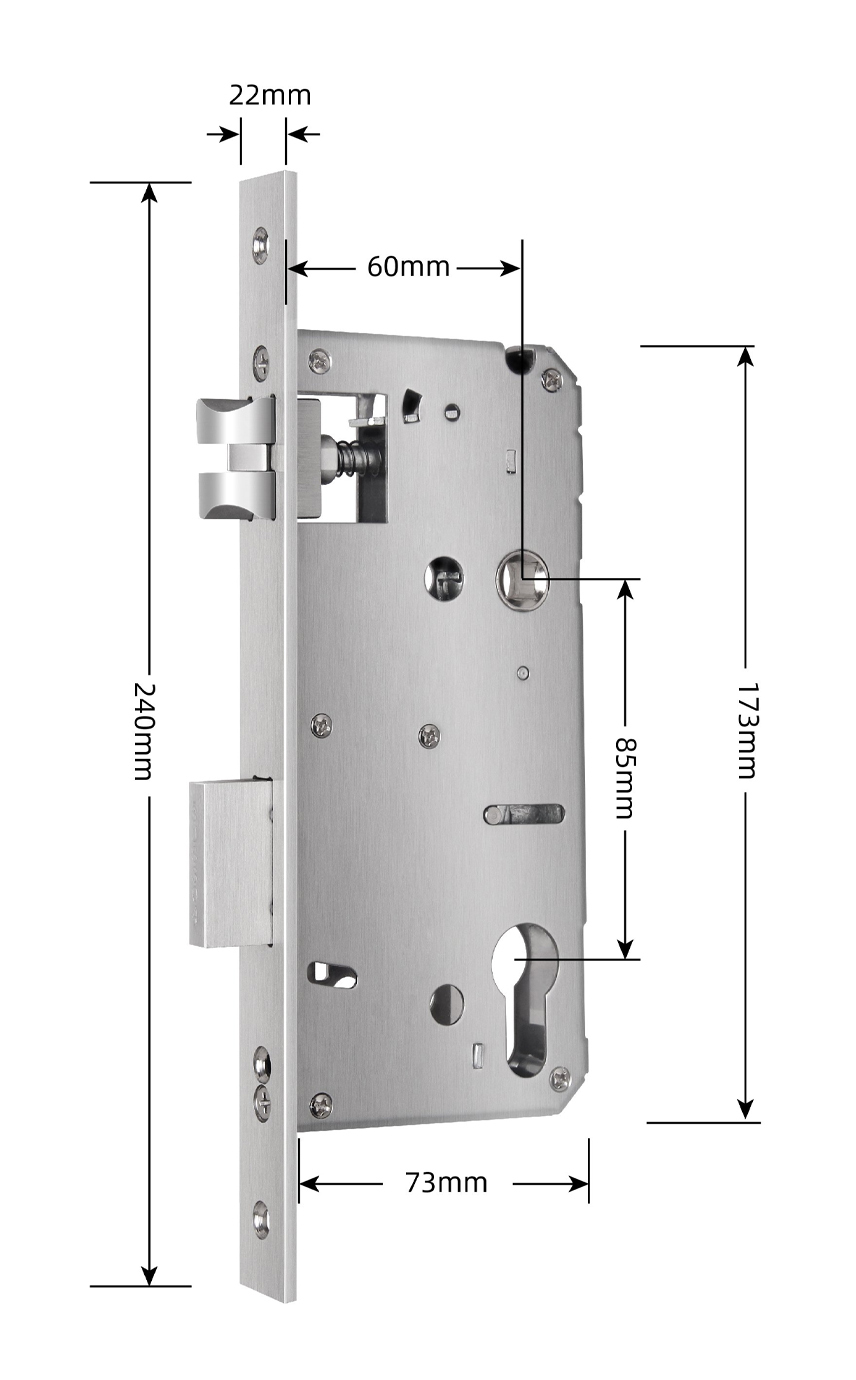

Specifications:

• Faceplate Dimension:
  • Height: 240mm
  • Width: 22mm
• Backset: 60mm
• Center to Center: 85mm
• Finish: Satin Stainless Steel

Austyle Digital Lever Latch
59405

Features:

• Includes Tubular Adjustable 60mm to 70mm Latch
• Ideal For Retro Fitting On Existing Doors
• Attractive Smart Access
• Voice Commands via Google Assistant and Amazon Alexa
• Suitable for all mortises US Latchbolt and 6085
• Waterproof IP55
• Easy Installation
• Adjustable for all door thickness
• 1 year battery life
• 250k cycle time
• 200 hours salt-spray
• USB for emergency power
• Mechanical key for emergency

Specifications:

• Suits: 35mm to 60mm
• Lock Dimension:
  • Depth: 290mm
  • Length: 66mm
  • Height: 5mm
• Working Humidity: 0-95 percent
• Working Temperature: -35 degree to 55 degree celsius
• Working Voltage: 6v/4x AA Batteries
• Low Wattange Alarm: less than 4.8v
• Finish: Matt Black

Installation Tip: When Using A Latch: Ensure Small Arrow Stamped At The Rear Of The Backplate Spindle Hub Faces The Same Direction As The Lever.
