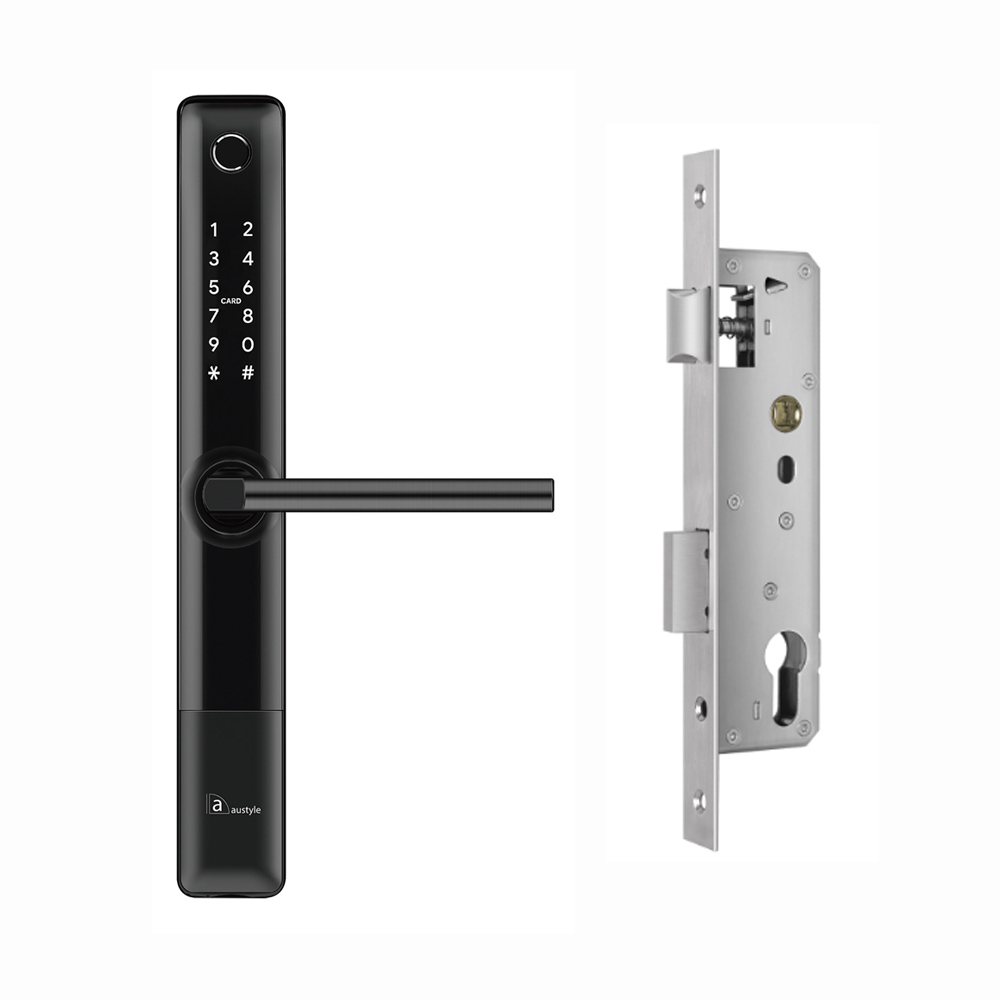

Austyle Sliding Digital Smart Door Lever Entrance Set
59401KIT

Smart Lock is designed to perform locking and unlocking operations on a door when it receives such instructions from an authorized device using a wireless protocol and a cryptographic key to execute the authorization process.

Smart Lock Function - allows you to open your door without a physical key. Can be controlled remotely using a smartphone app.

Includes:

• 1 x Austyle Door Digital Smart Narrow Entrance Set 300x39x24mm Black 59400
• 1 x Austyle Entrance Lock 30mm Satin Stainless Steel 49421

Austyle Entrance Lock
49421

Features

• Used with digital lock range 59400
• Used in conjunction with Digital Lever 59400

Specifications:

• Backset: 30mm
• Faceplate Height: 240mm
• Faceplate Width: 22mm
• Center to Center: 85mm
• Finish: Satin Stainless Steel

Austyle Door Digital Smart Narrow Entrance Set
59400

Features:

• Mechanical key unlock
• Keyless Fob Unlock
• Finger Print
• Includes Tubular Latch adjustable 60mm to 70mm
• High Security Sliding & Entrance Locking Options Available
• Used With TTLock App
• Automatic Locking
• Waterproof IP55
• 200k Cycle Times, 200 hours salt spray durability
• Voice Commands via Google Assistant & Amazon Alexa
• USB for emergency power and Mechanical key for emergency

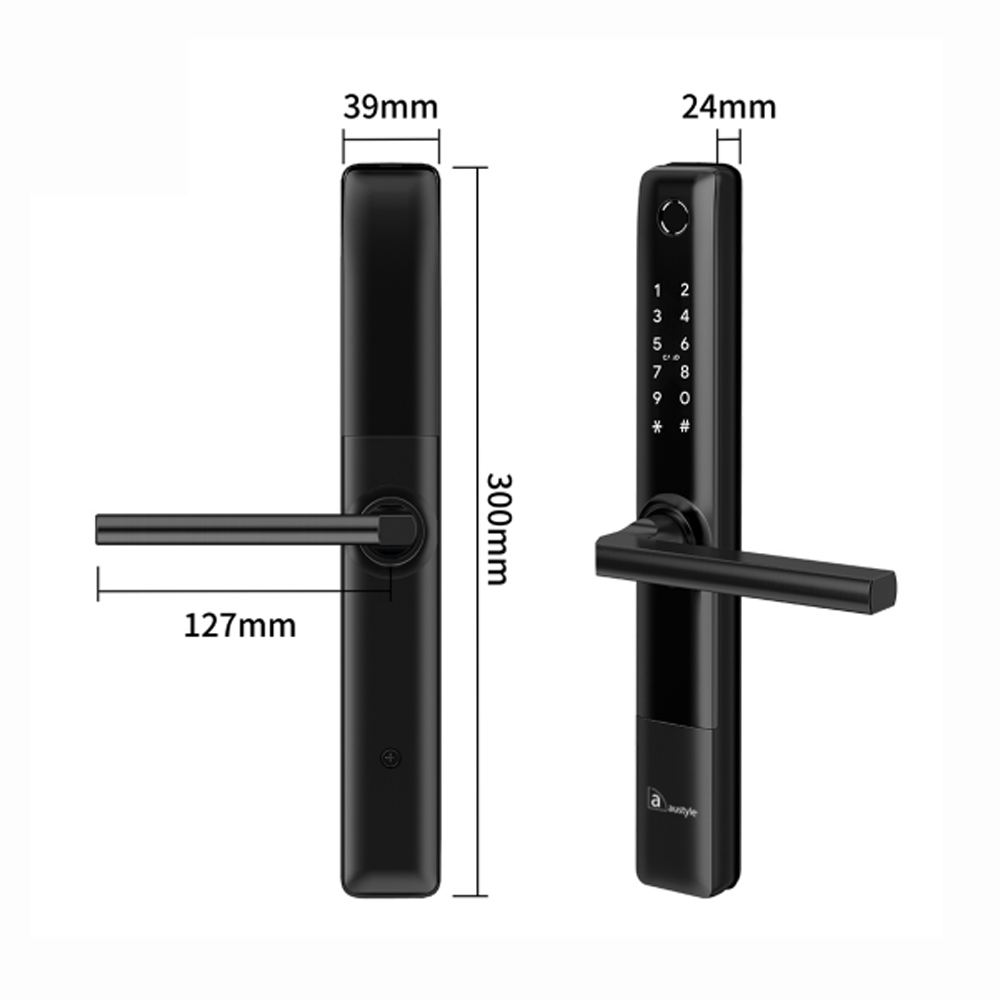

Specifications:

• Suits: US Latchbolt 3085/2885/6085
• Door Thickness: 35mm to 65mm
• Height: 300mm
• Width: 39mm
• Thickness: 24mm
• Projection: 60 to 70mm (tubular latch)
• Working Humidity: 0 to 95 percent
• Working Temperature: -35 to 55 degree celsius
• Working Voltage: 6v/4x AA Batteries
• Low Wattage Alarm: Less than 4.8v
• Finish: Black

Installation Tip:

• When Using A Latch: Ensure Small Arrow Stamped At The Rear Of The Backplate Spindle Hub Faces UP Direction.

Note: Wifi Hub Sold Separately
