Bellevue Ceam 3D Invisible Concealed Door Hinge
BAC1129

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• Load capacity up to 44kg at 900mm wide doors
• Only 18mm deep (rebate ideal for cupboards & high frequency opening doors)
• Fully 3D adjustable system on three axis (S.T.A.R.S.)
• Ceam quick release system
• 100% made in Italy for over 50 years
• Router template available for easy installation and slot symmetry
• Suitable for internal & external (under cover) locations
• Suitable for residential, commercial & industrial locations

Specifications:

• Height: 100 mm
• Width: 22 mm
• Depth: 18 mm
• Suitable For Doors: Wood, Alluminium, Steel
• Minimum Door Thickness: 28mm
• 3D Adjustable: Yes
• Load Capacity:
  • 2 hinges: 25kg at 900mm wide doors
  • 3 hinges: 30kg at 900mm wide doors
  • 3 hinges asymmetrical: 40kg  at 900mm wide doors
  • 4 hinges: 44kg at 900mm wide doors
• Available Finish:

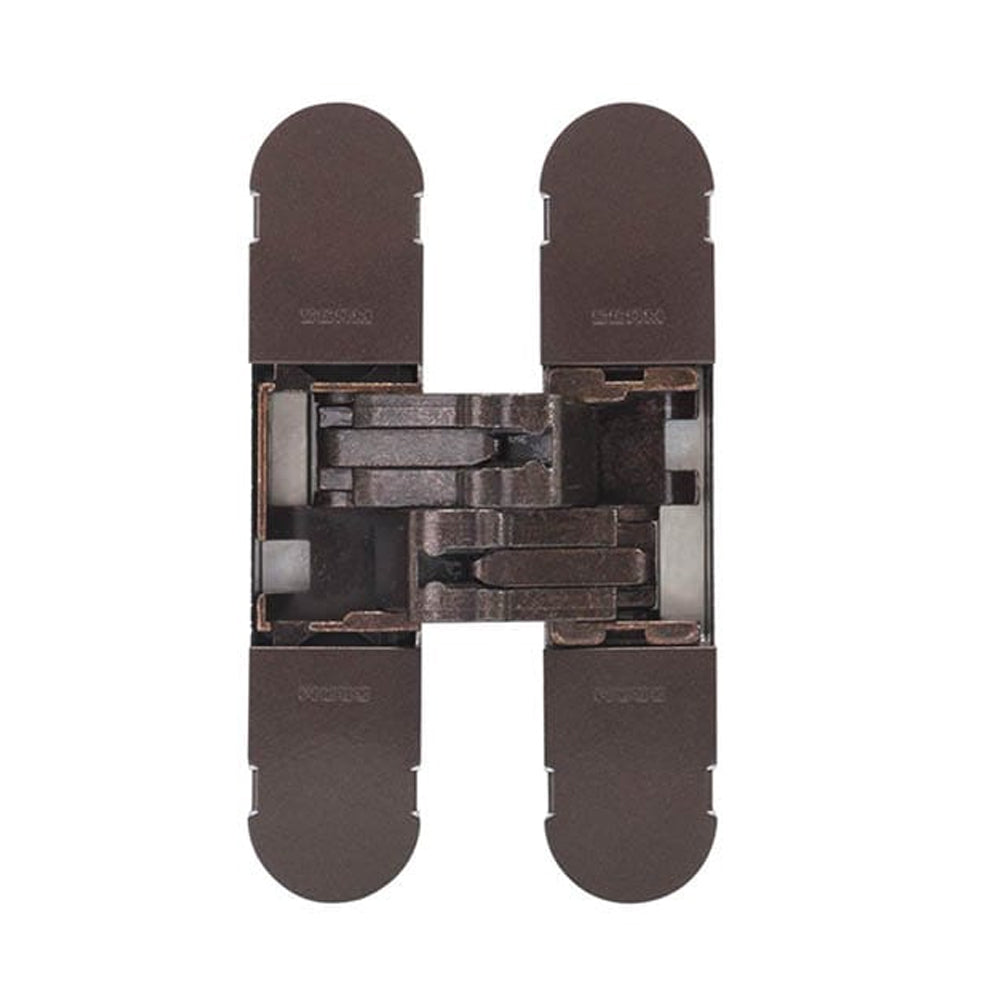

  • Bronze

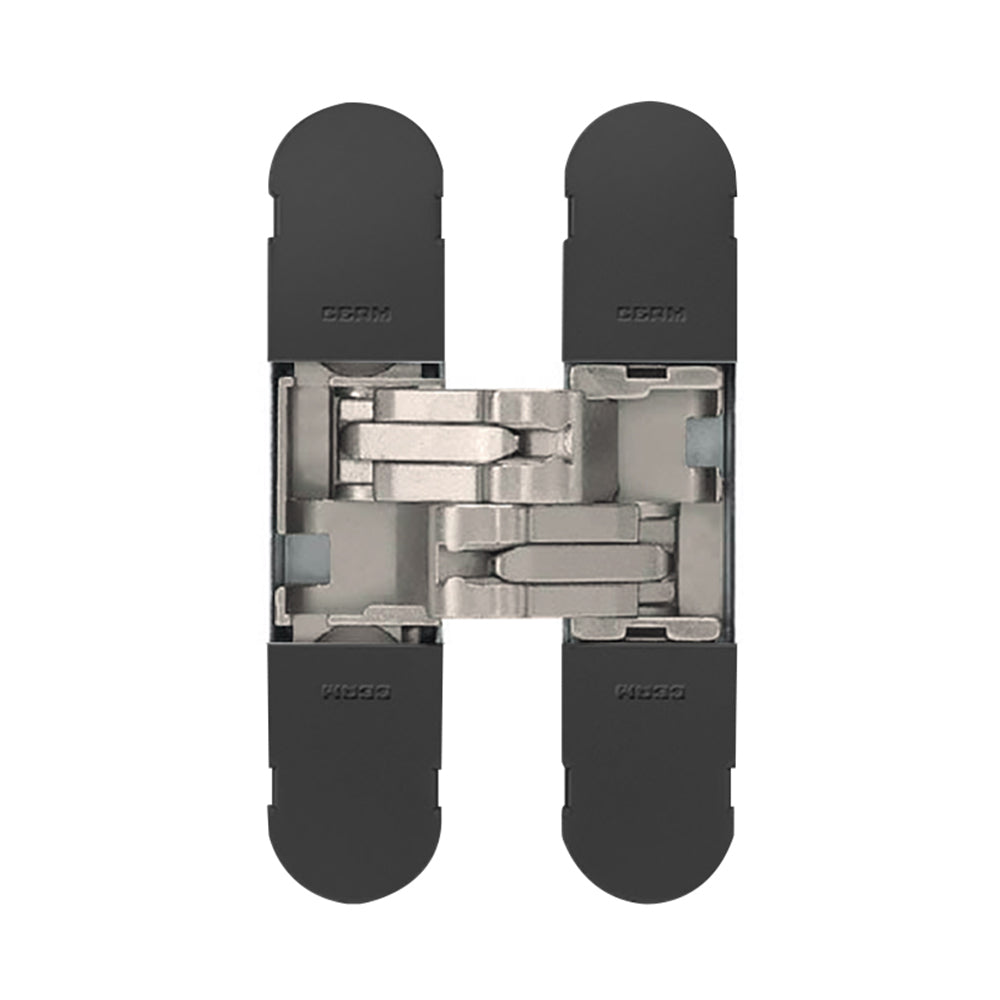

  • Matt Black

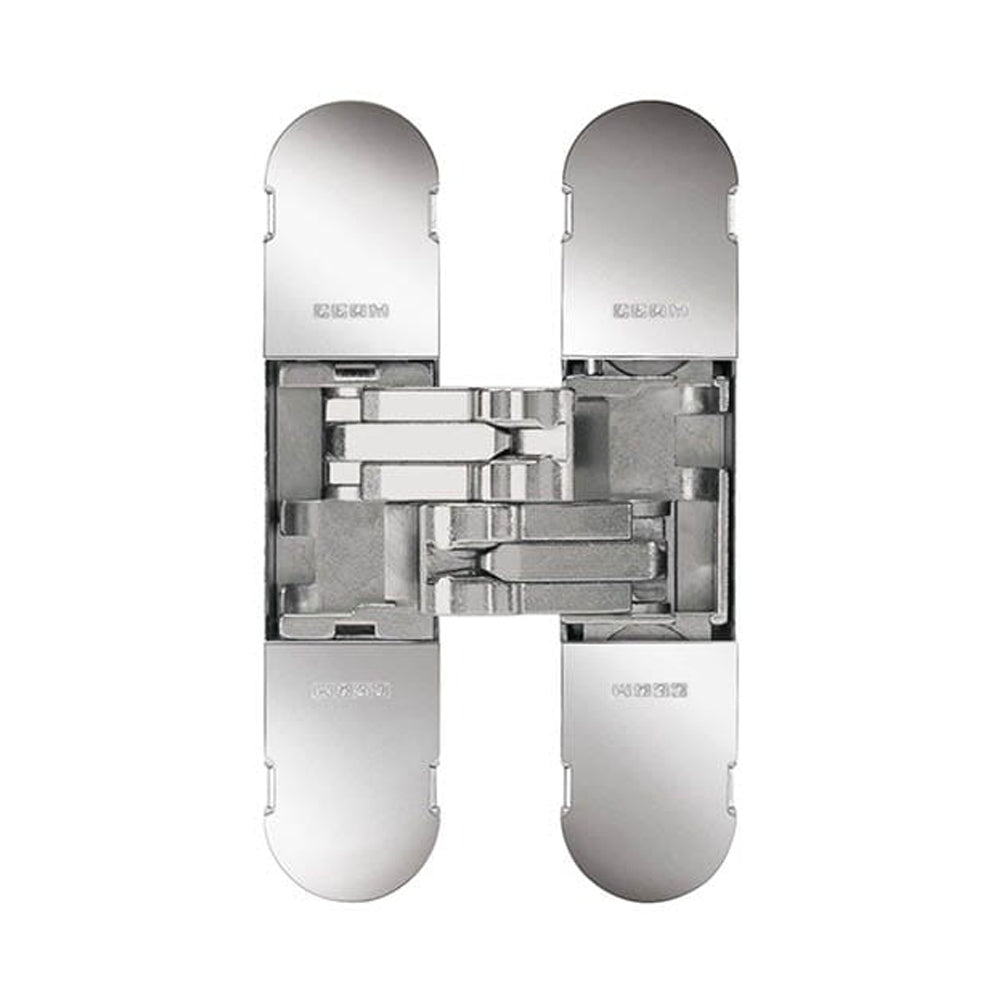

  • Nickel

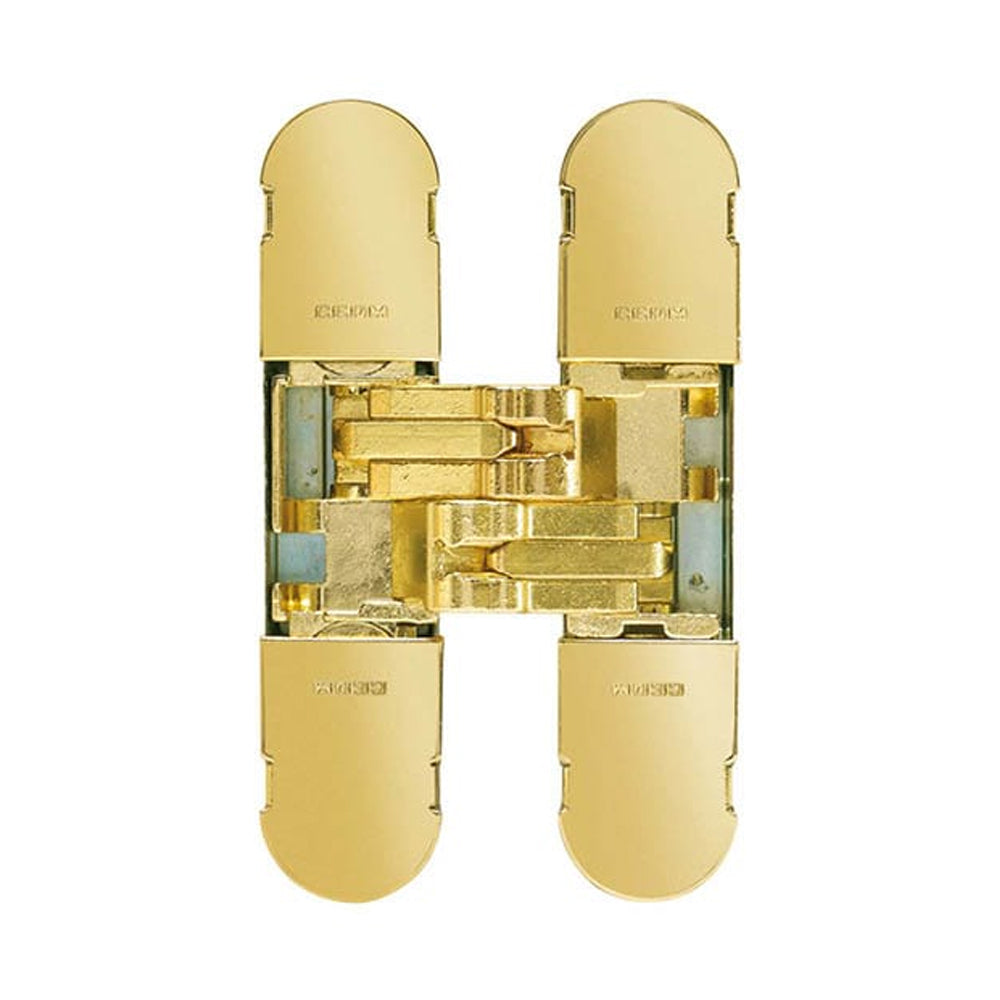

  • Polished Brass
  • Silver

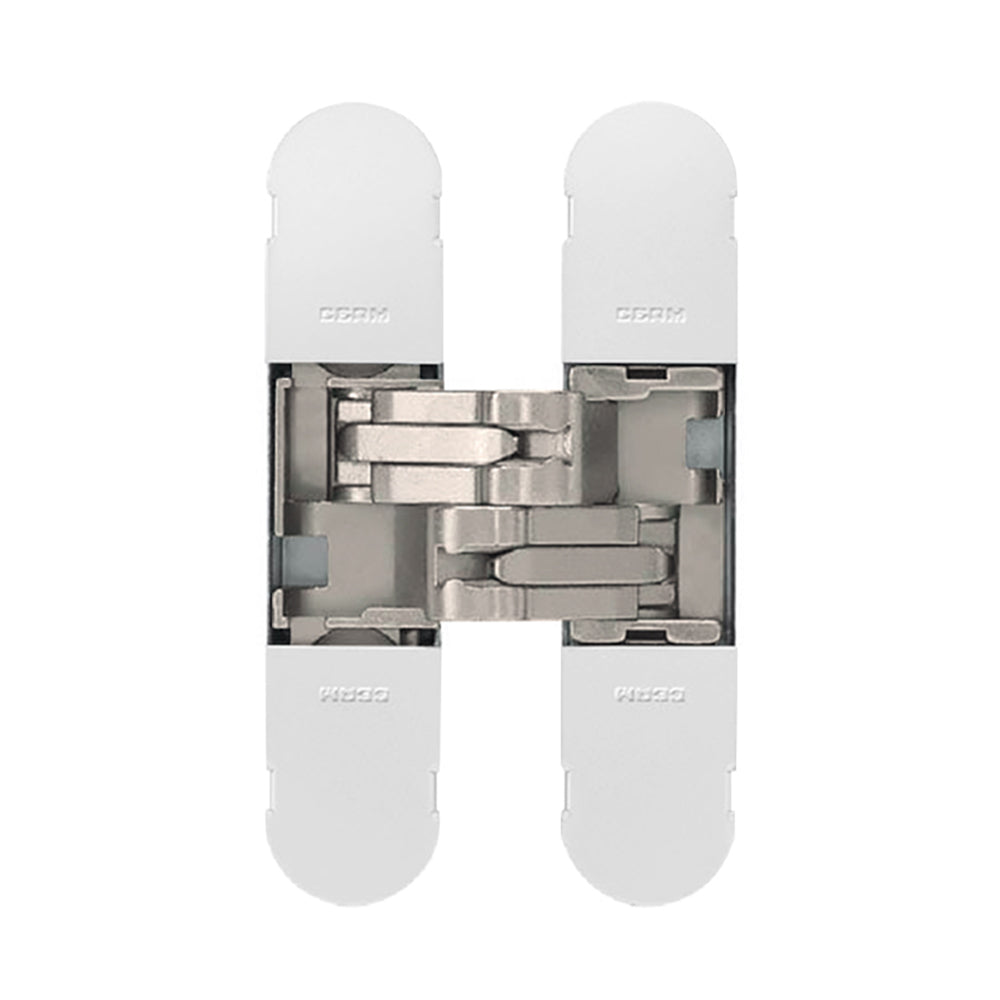

  • White
• Sold as Single
