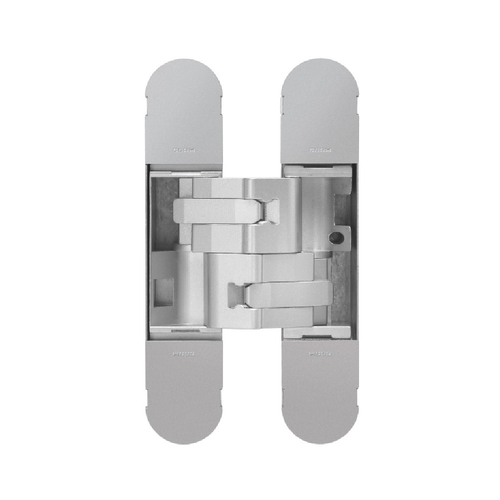

Bellevue Ceam 3D Invisible Concealed Door Hinge
BAC1131SSI

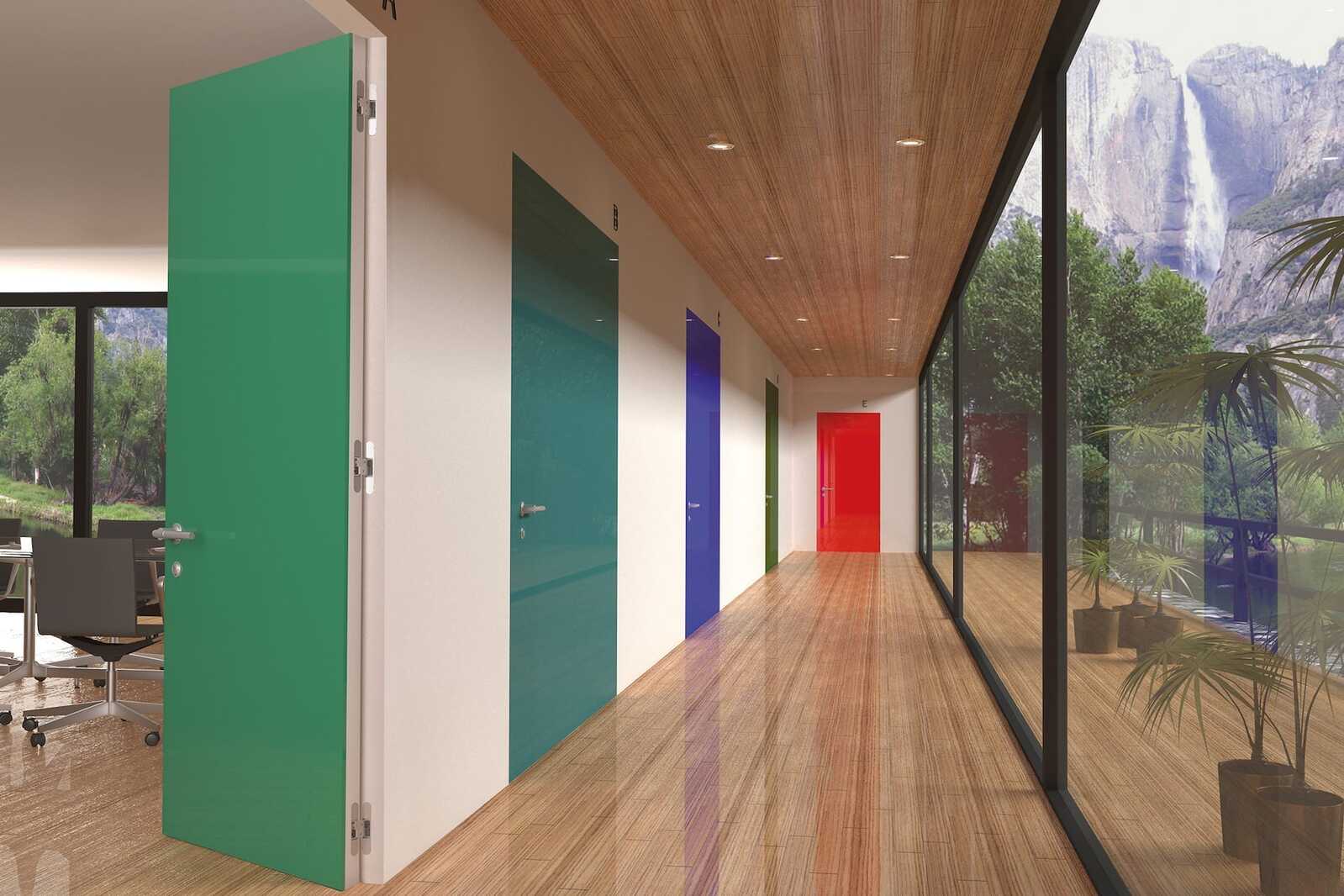

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

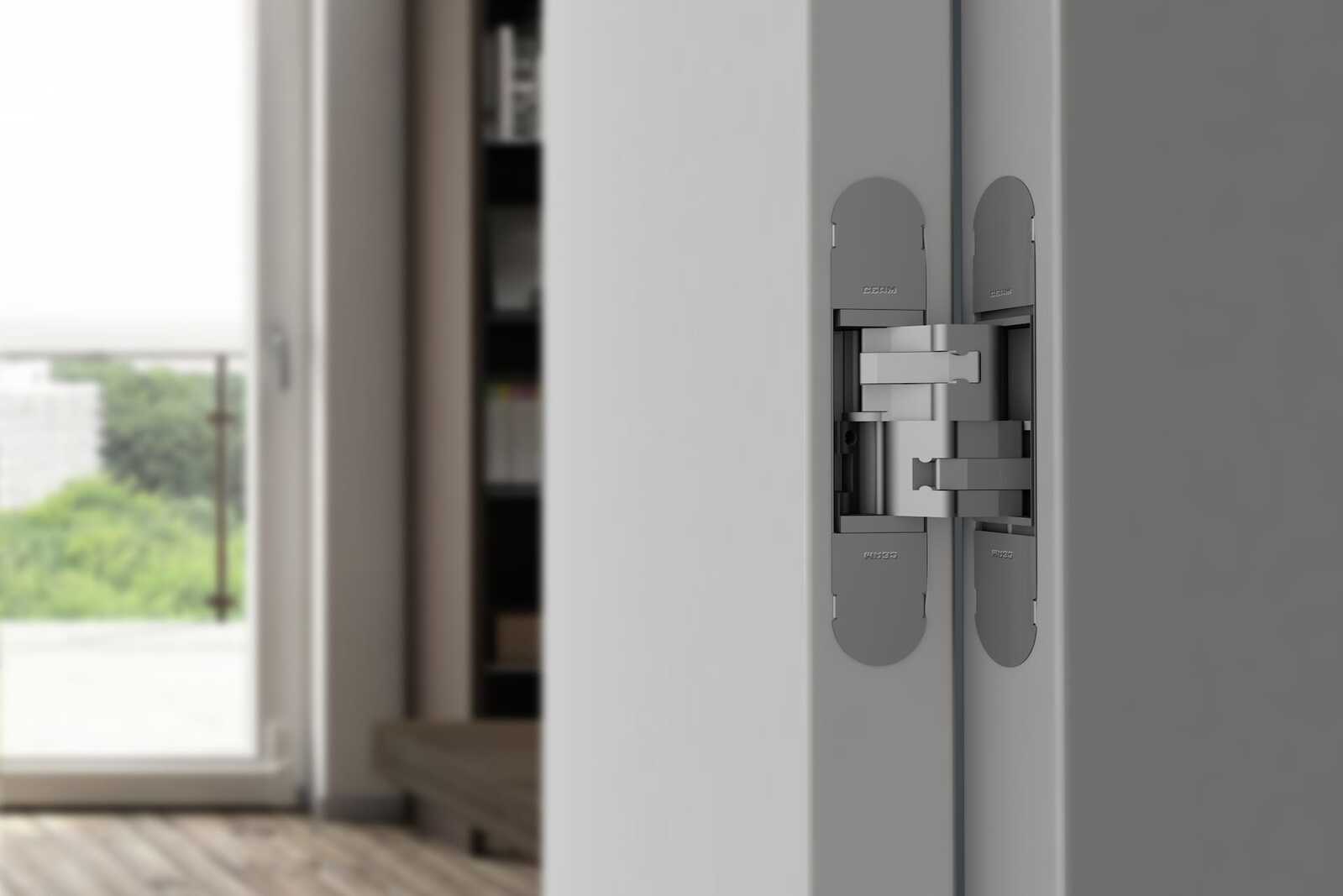

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• Load capacity up to 150 kg @ 900mm wide door (subject to door specs, see weight chart)
• Router template available for easy installation and slot symmetry
• 100% made in Italy for over 50 years
• Quick release system
• 3D adjusting system S.T.A.R.S.
• Suitable for internal & external (under cover) locations
• Suitable for residential, commercial & industrial locations

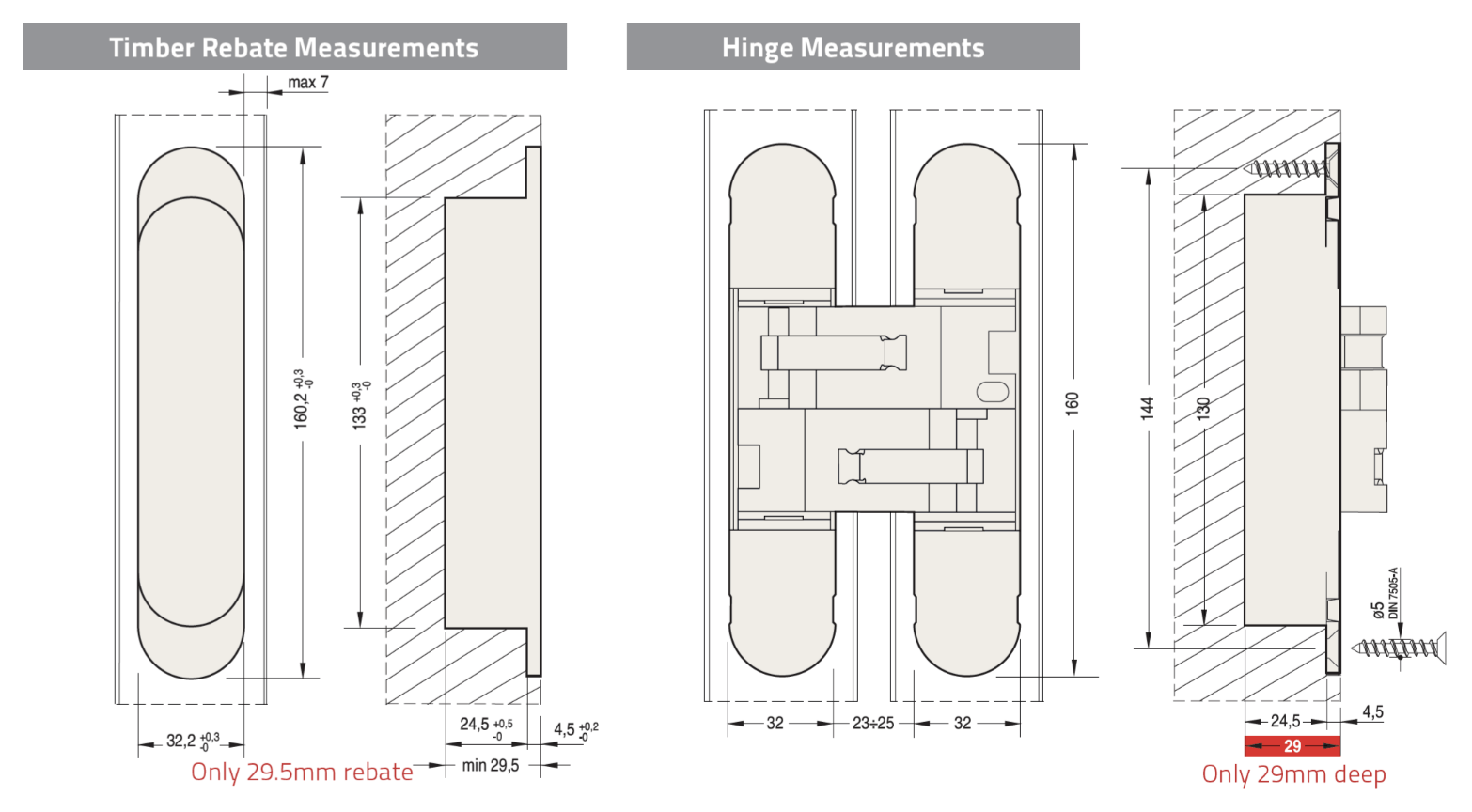

Specifications:

• Height: 160mm
• Width: 32mm
• Depth: 29mm
• Material: Die Cast
• Working Aperture: 180 degree
• Minimum Door Thickness: 38mm
• 3D Adjustable: Yes
• Suitable For Doors: Wood, Aluminum, Steel

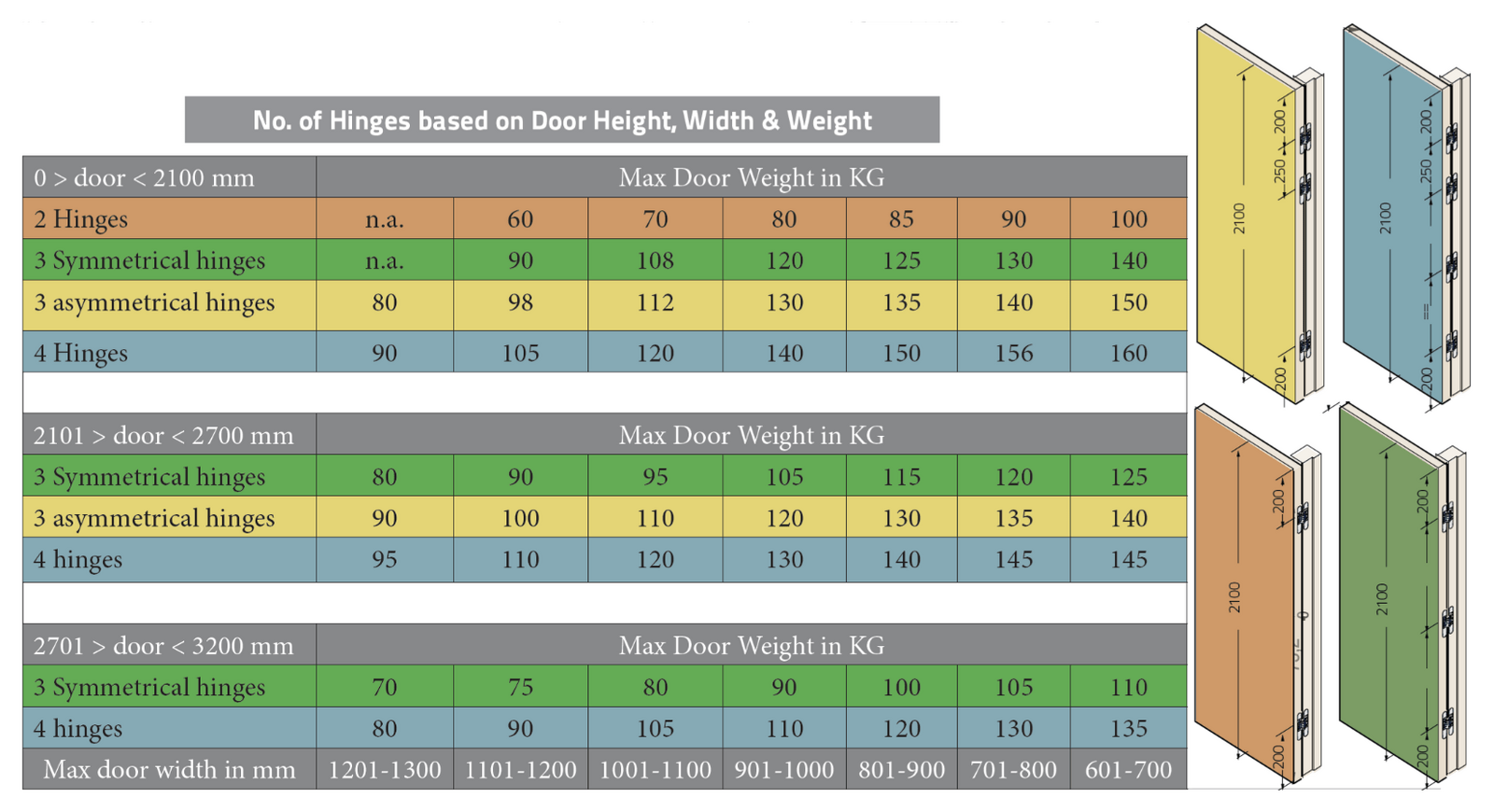

• Load Capacity:
  • 2 hinges: 85kg at 900mm wide doors
  • 3 hinges: 120kg at 900mm wide doors
  • 3 hinges asymmetrical: 135kg at 900mm wide doors
  • 4 hinges: 150kg at 900mm wide doors
• Finish: Silver
• Sold as Single
