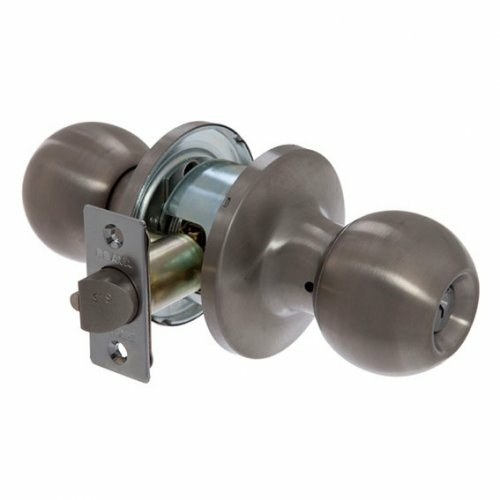

Brava Metro Classroom Knob Set
RA3012SS

BRAVA Metro RA3000 series commercial grade tiebolt 60-70mm classroom knobset.

Classroom function:

• Outside key locks and unlocks exterior knob.
• Inside knob free at all times.

Additional info:

• Tiebolt concealed fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• 2 keys supplied.
• Fire rated.
• Finished in satin stainless steel.

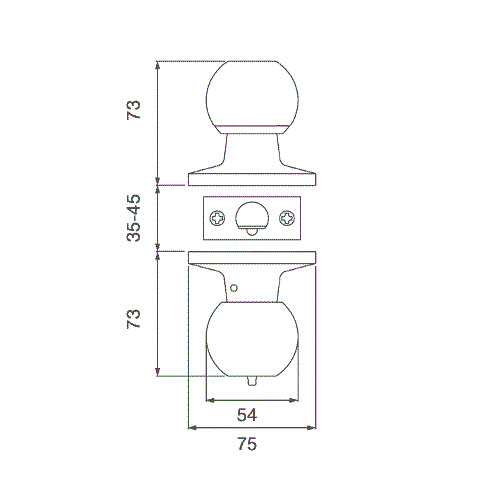

Features:

• Door thickness: 35-45mm
• Backset: 60/70mm adjustable latch
• Max. knob projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 28mm x 2mm
• Latch: 60/70mm adjustable
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed knobs
• Rose: 75mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
