Brava Metro Entrance Lever Set Keyed to Differ
EV6000SC70

• BRAVA Metro EV6000 series commercial grade entrance leverset with external clutching lever.

Entrance function:

• Outside key unlocks outside clutching lever.
• Inside lever free at all times,push button locks outside lever.

Additional info:

• Clutching lever feature to prevent forcing.
• Screw post to prevent lock rotation are removable.
• Charlotte lever design.
• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• Keyed to differ.
• 2 keys supplied.
• Fire rated.
• Finished in satin chrome.

Features:

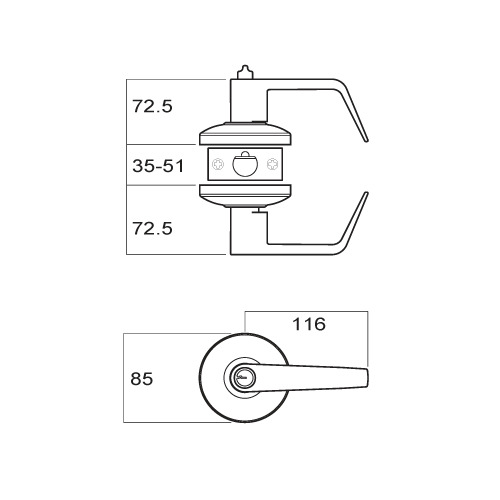

• Door thickness: 35-51mm
• Backset: 70mm
• Max. knob projection: 72.5mm (distance may not include turnsnib)
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed levers
• Rose: 85mm
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
