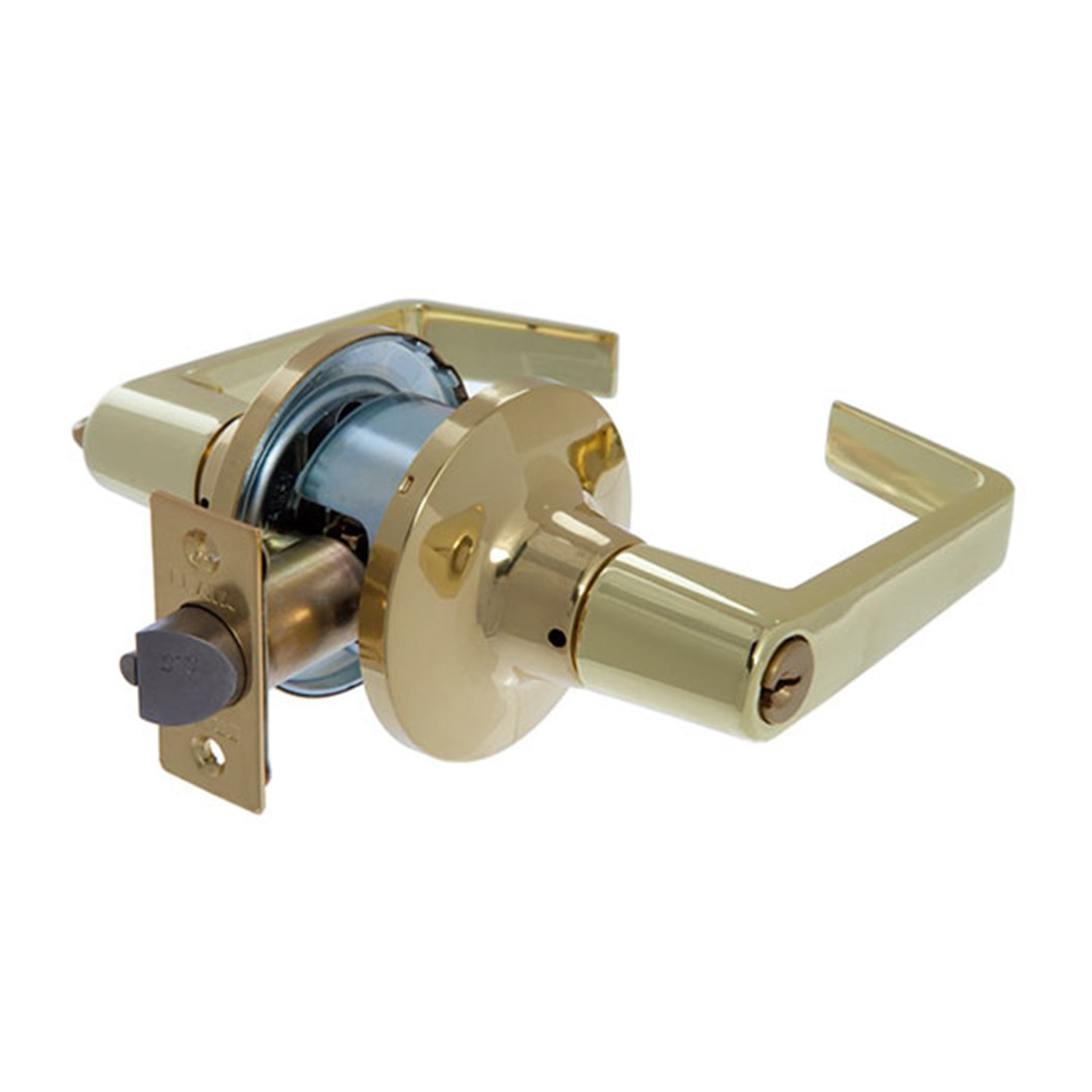

Brava Metro Entrance Lever Set
RH6100PB

Entrance Outside Function - key locks and unlocks exterior lever

Entrance Inside Function - lever free at all times, snib inside locks and unlocks outside lever.

Features:

• Commercial grade
• Tiebolt concealed fixing
• Silca LW5 profile
• Incorporates the popular PD 8221 barrel
• Compatible with most restricted keying systems
• Boxed and colour coded
• 2 keys supplied

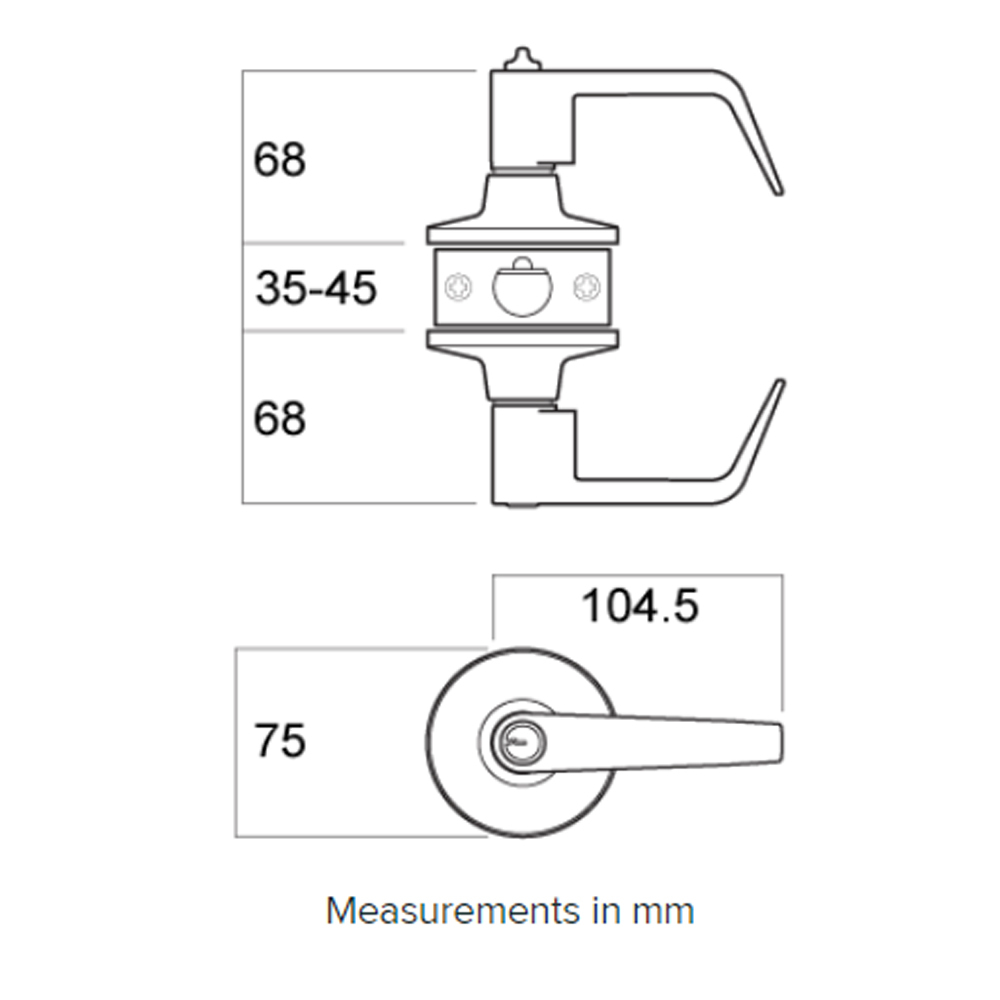

Specifications:

• Door Thickness: 35mm - 45mm
• Backset: 60 or 70mm adjustable latch
• Max. Lever Projection (distance may not include turnsnib): 68mm
• Strike: 70mm x 28mm x 2mm
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door Handing: Non-handed levers
• Rose: 75mm
• Finish: Polished Brass

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
