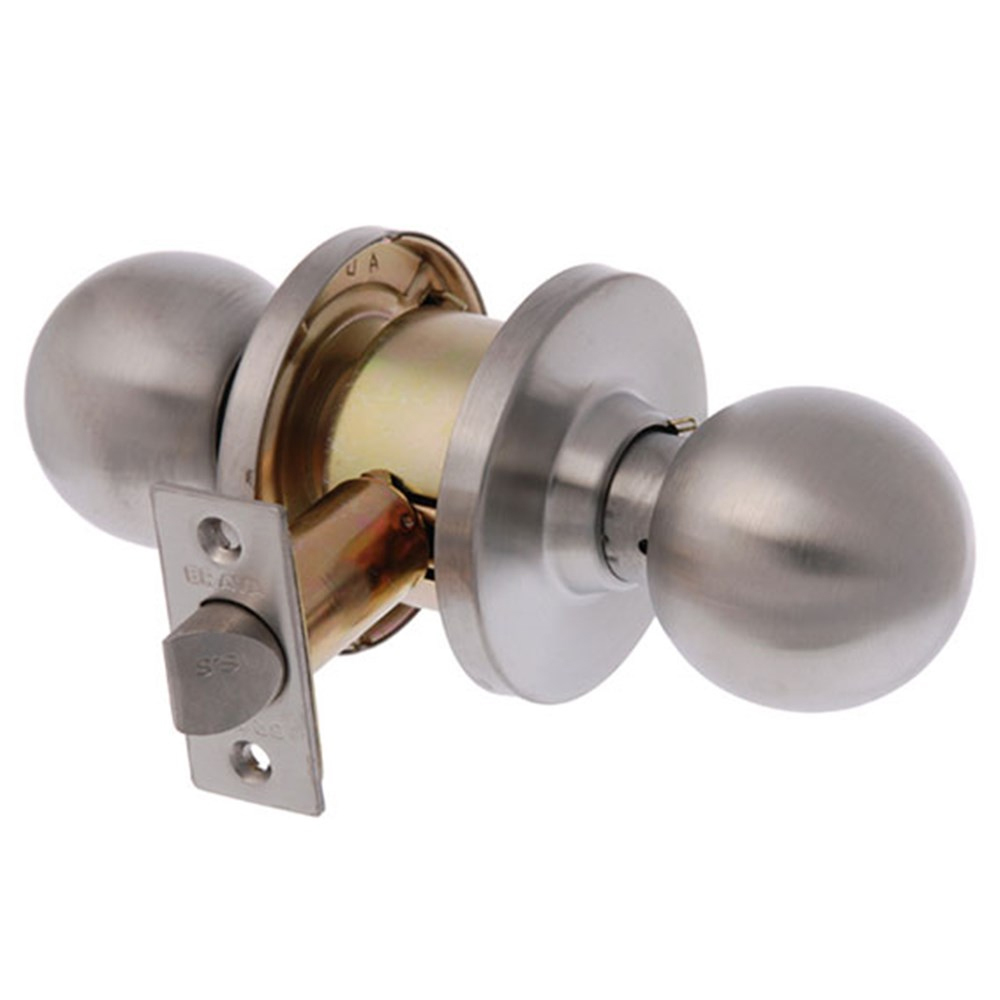

Brava Metro Passage Knob Set
EA3082SS60

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Features:

• Cylindrical fixing
• Boxed and colour coded

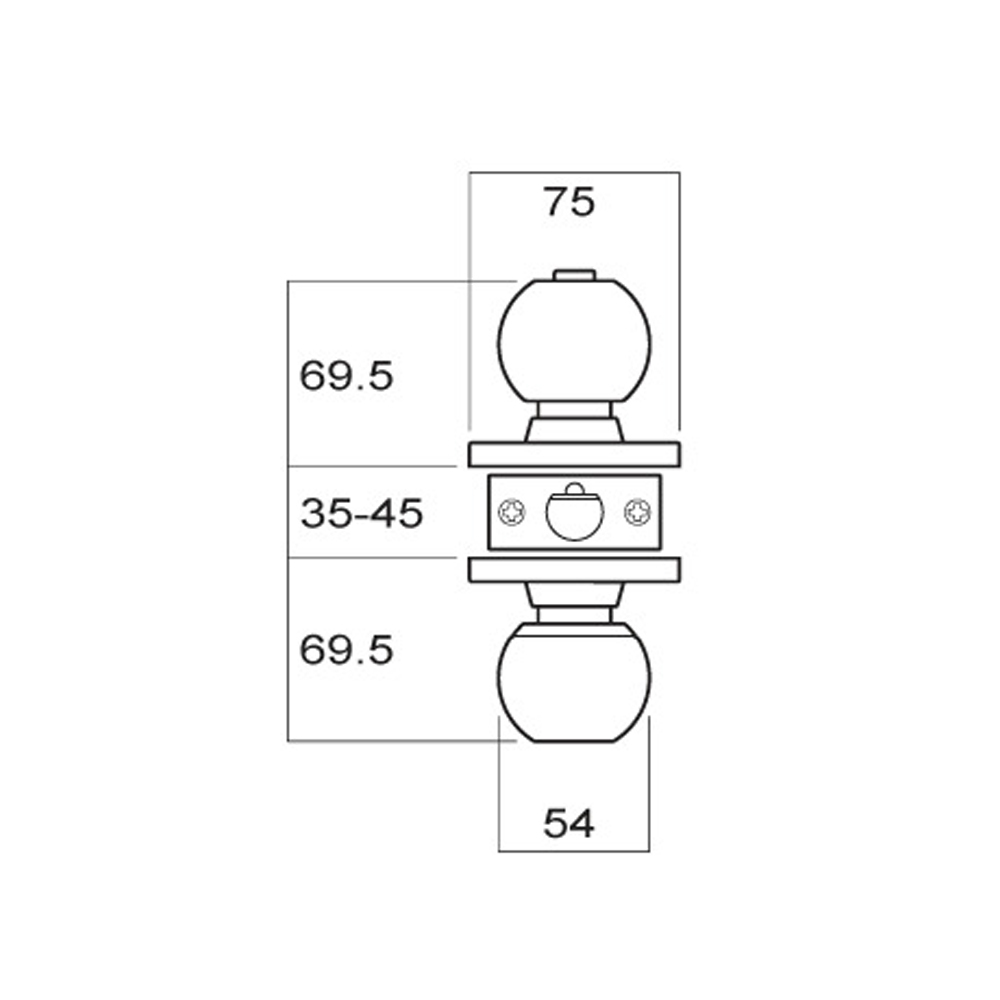

Specifications:

• Door Thickness: 35-45mm
• Backset: 60mm
• Max. Knob Projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 60mm backset
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed knobs
• Rose: 75mm
• Finish: Satin Stainless Steel

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
