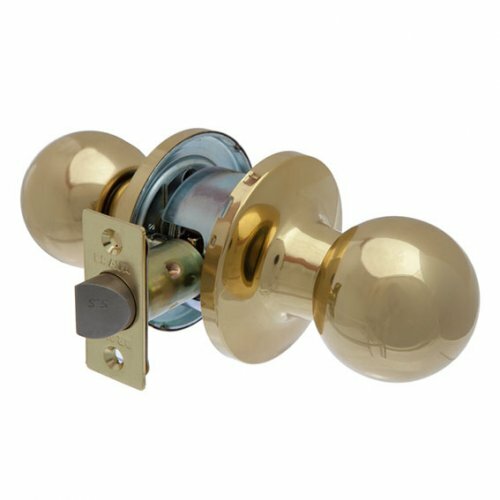

Brava Metro Passage Knob Set
RA3182PB

BRAVA Metro RA3000 series commercial grade tiebolt 60-70mm passage knobset.

Passage function:

• Both outside and inside knobs are always free.

Additional info:

• Cylindrical fixing.
• Boxed and colour coded.
• Finished in polished brass.

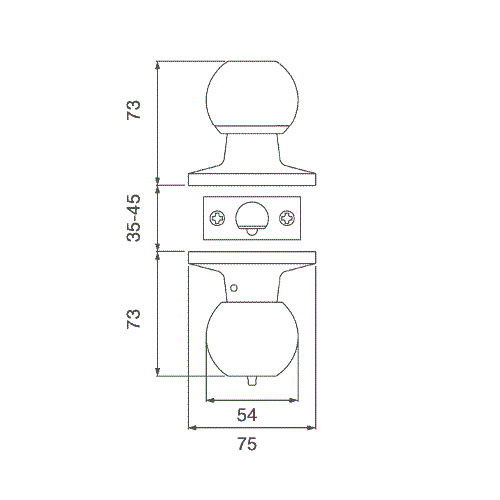

Features:

• Door thickness: 35-45mm
• Backset: 60/70mm adjustable latch
• Max. knob projection: 73mm (distance may not include turnsnib)
• Strike: 70mm x 28mm x 2mm
• Latch: 60/70mm adjustable
• Latch face plate: 57mm x 25mm
• Door handing: Non-handed knobs
• Rose: 75mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
