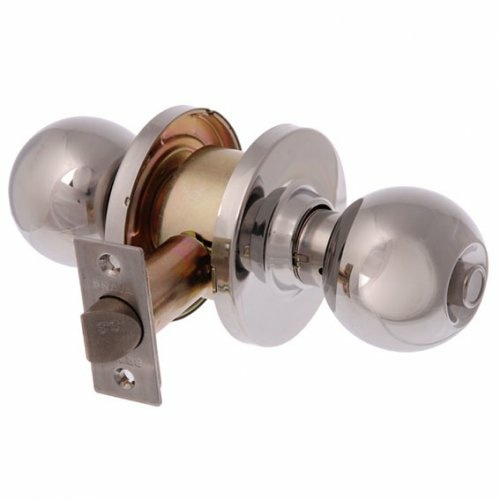

Brava Metro Privacy Knob Set
EA3830PSS70

BRAVA Metro EA3000 series commercial grade privacy knobset 70mm backset.

Privacy function:

• Outside opened by knob when free.
• Can be unlocked in an emergency situation with a coin or screw driver.
• Inside opened by knob at all times, external knob locked with push button from inside.

Additional info:

• Automatic kick off.
• Cylindrical fixing.
• Boxed and colour coded.
• Fire rated.
• Finished in polished stainless steel.

Features:

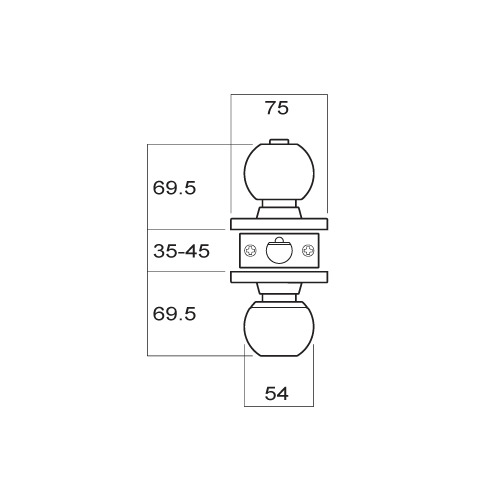

• Door thickness: 35-45mm
• Backset: 70mm
• Max. knob projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 70mm backset
• Latch face plate: 57mm x 25mm
• Door handing: Non-handed knobs
• Rose: 75mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
