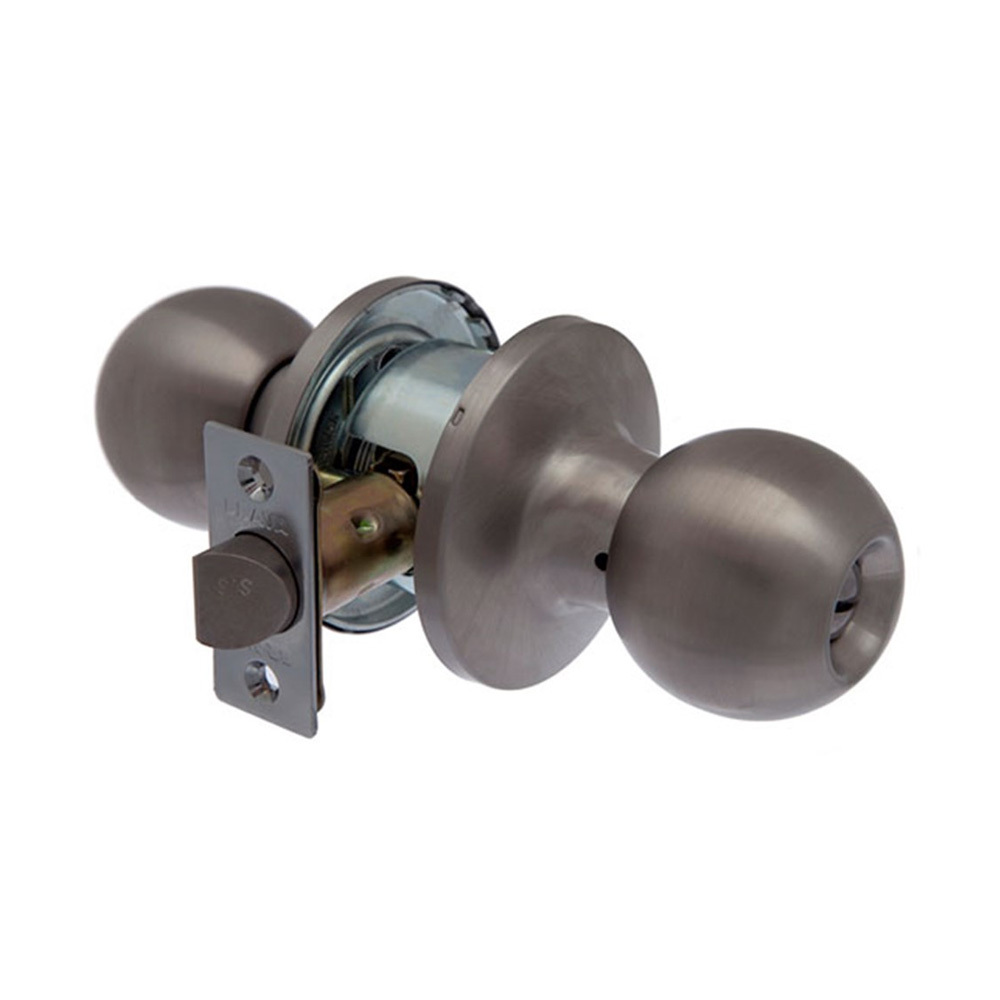

Brava Metro Privacy Knob Set
RA3030SS

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

• BRAVA Metro RA3000 series commercial grade tiebolt 60-70 mm privacy knobset.

Features:

• Tiebolt concealed fixing.
• Fire rated.

Specifications:

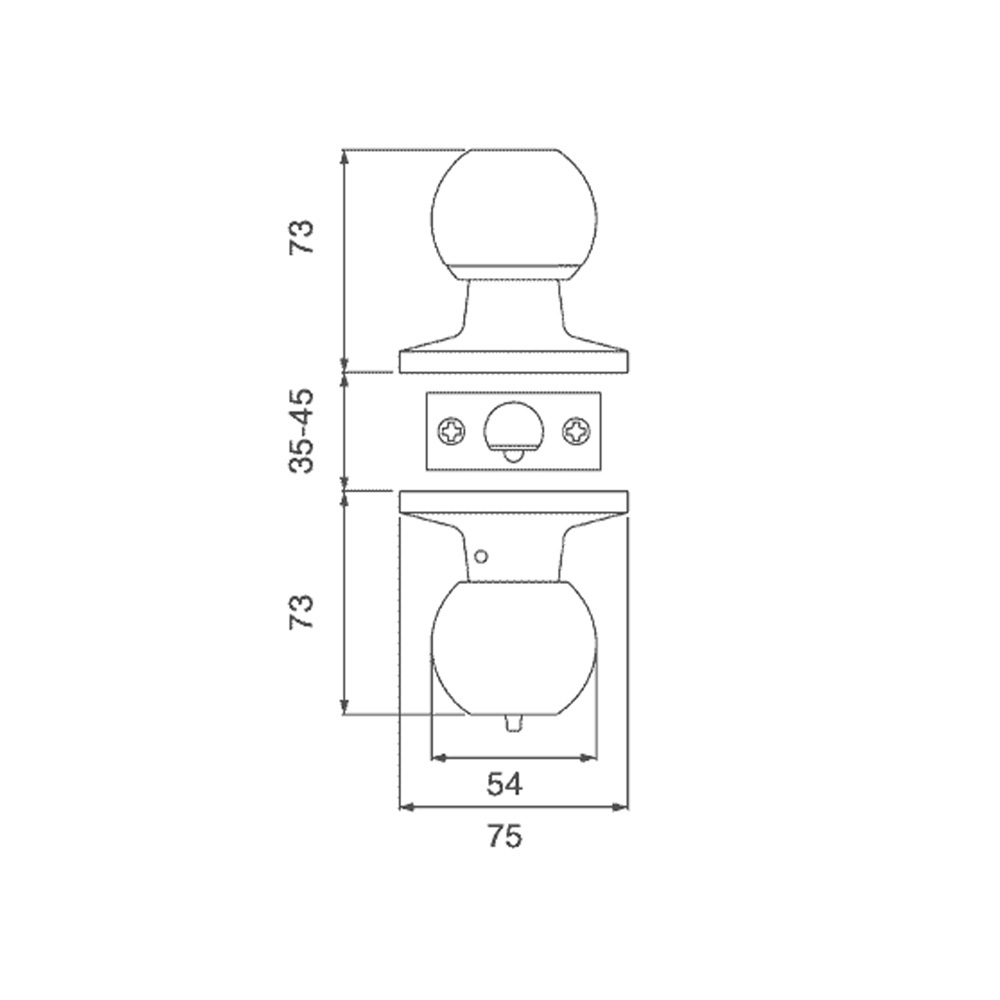

• Door Thickness: 35mm to 45mm
• Backset: 60mm to 70mm (adjustable latch)
• Max. Lever / Knob Projection: 73mm (distance may not include turnsnib)
• Strike: 70mm x 28mm x 2mm
• Latch: 60 to 70mm (adjustable)
• Latch Face Plate: 25mm x 57mm
• Door handing: Non-handed levers
• Lock Grade: Commercial
• Lock Type: Tie Bolt
• Rose Diameter: 75mm
• Function: Privacy
• Finish: Satin Stainless Steel

Protection: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
