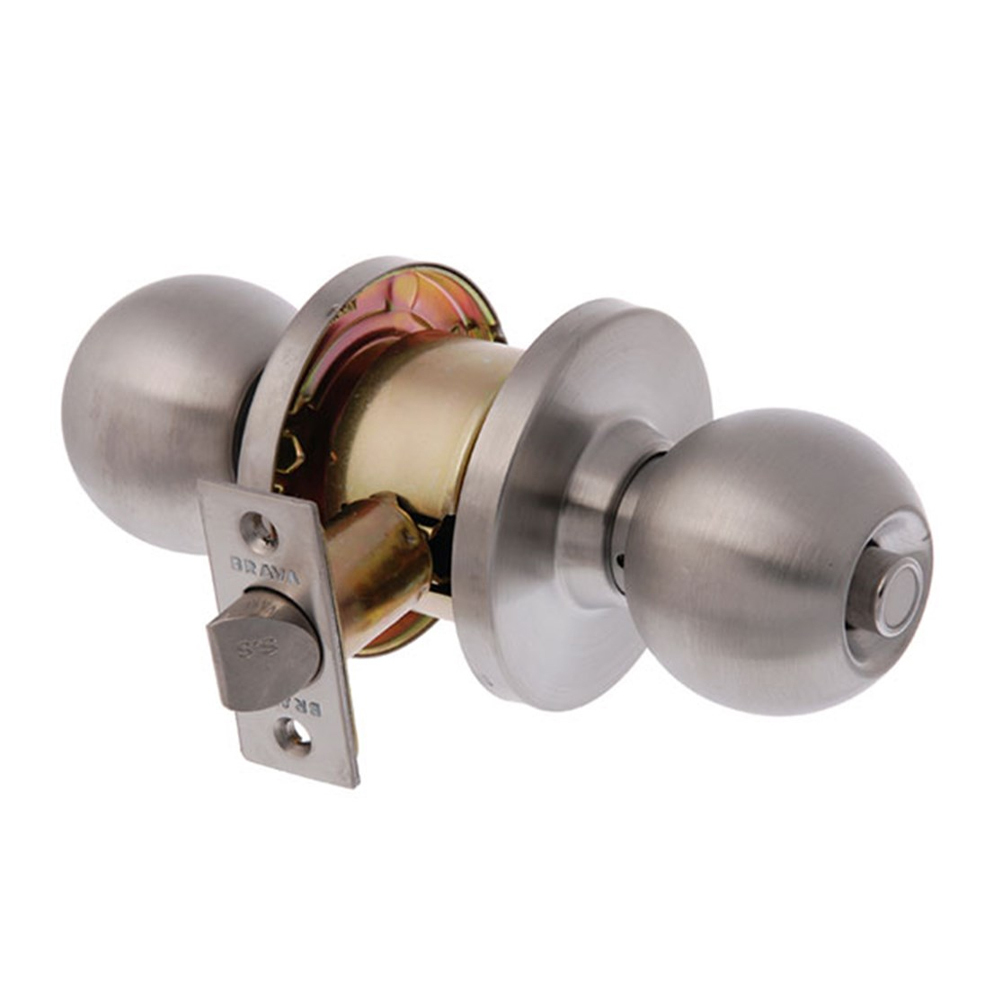

Brava Metro Privacy Knob Set
EA3030SS60

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - Outside opened by knob when free. Can be unlocked in an emergency situation with a coin or screw driver. Inside opened by knob at all times, external knob locked with push button from inside.

Features:

• Automatic kick off
• Cylindrical fixing
• Boxed and colour coded

Features:

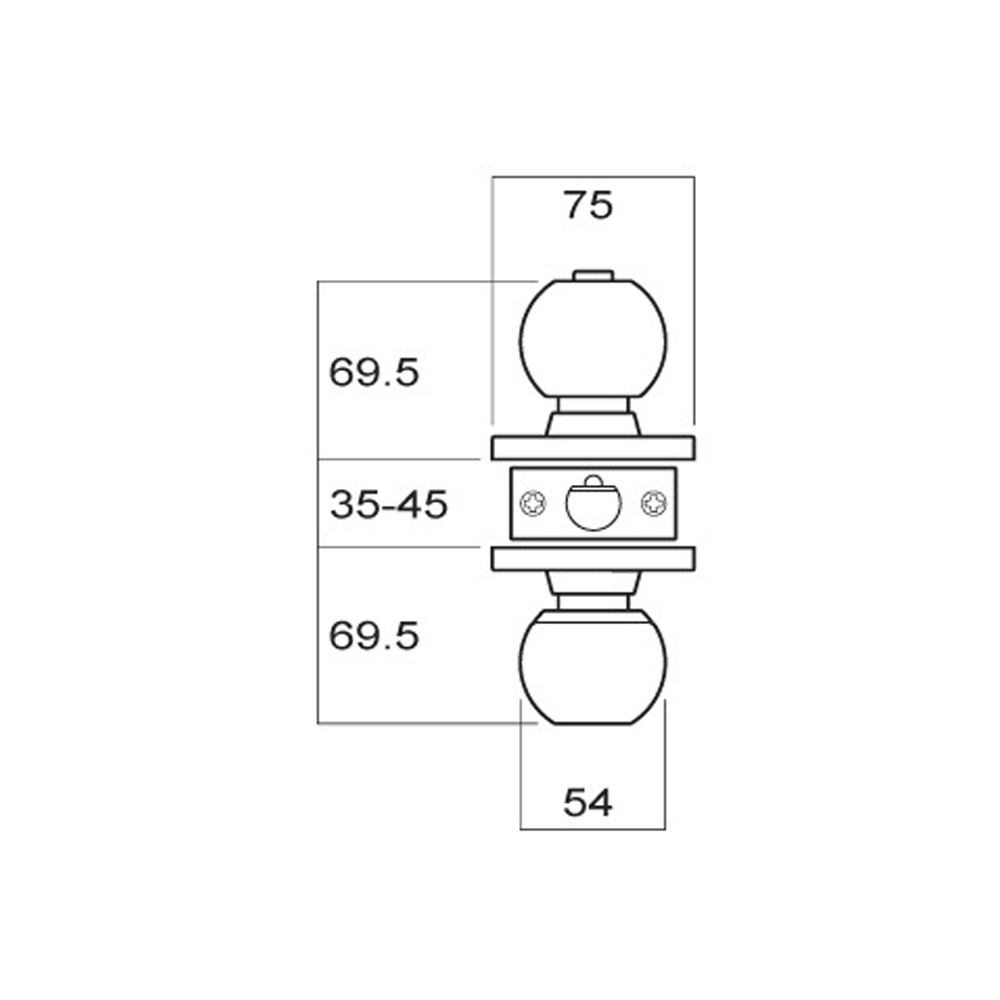

• Door thickness: 35-45mm
• Backset: 60mm
• Max. Knob Projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 60mm backset
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed knobs
• Rose: 75mm
• Finish: Satin Stainless Steel

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
