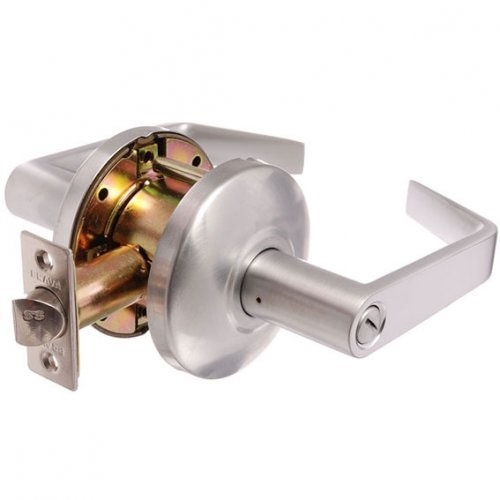

Brava Metro Privacy Lever Set
EV6030SC70

BRAVA Metro EV6000 series commercial grade privacy leverset with external clutching lever.

Privacy function:
  • Outside opened by lever when free.
  • Can be unlocked in an emergency situation with a coin or screw driver.
  • Inside opened by lever at all times, external lever locked with push button from inside.
Additional info:
  • Automatic kick off.
  • Clutching lever feature to prevent forcing.
  • Screw post to prevent lock rotation are removable.
  • Charlotte lever design.
  • Cylindrical fixing.
  • Boxed and colour coded.
  • Fire rated.
  • Finished in satin chrome.
Features:

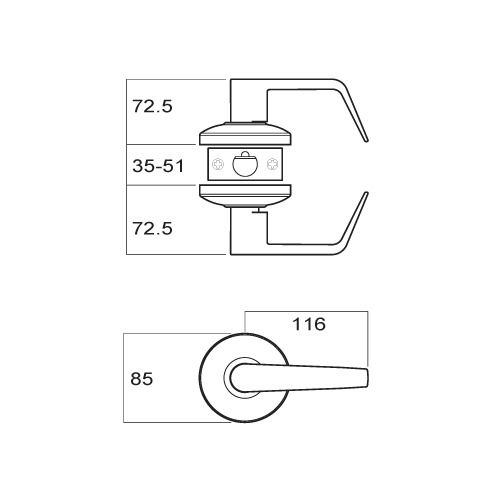

  • Door thickness: 35-51mm
  • Backset: 70mm
  • Max. knob projection: 72.5mm (distance may not include turnsnib)
  • Strike: 28mm x 70mm x 2mm
  • Latch: 70mm (12.7mm throw)
  • Latch face plate: 57mm x 25mm
  • Door handing: Non-handed levers
  • Rose: 85mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
SKU LSCEV6030SC70
Brand Brava
