Brava Metro Storeroom Lever Set
EV8062SC70

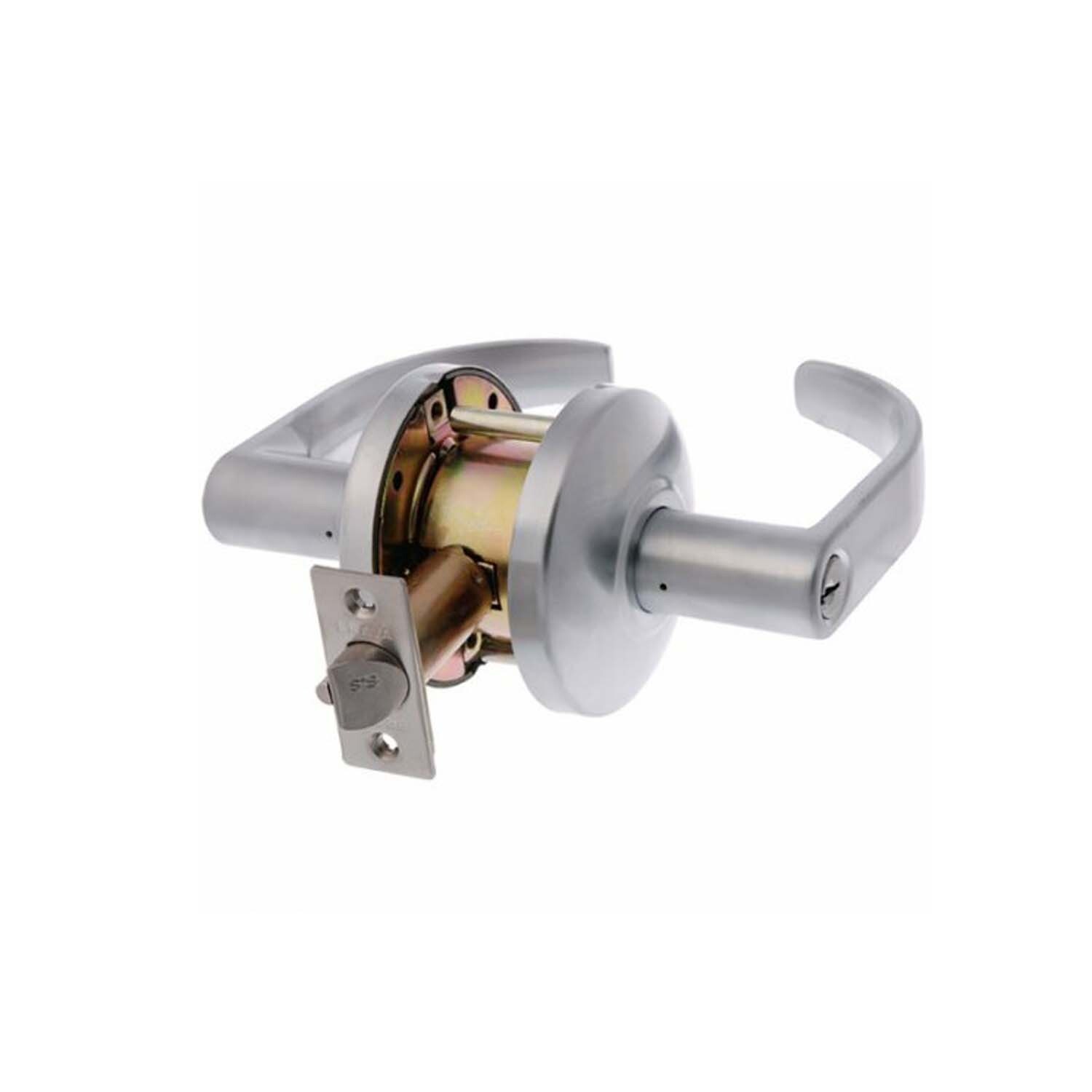

BRAVA Metro EV8000 series commercial grade storeroom leverset with external clutching lever.

Storeroom function:

• Outside lever always clutching, key retracts the latch.
• Inside lever free at all times.

Features:

• Clutching lever feature to prevent forcing.
• Screw post to prevent lock rotation are removable.
• Carolina lever design.
• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• Keyed to differ.
• 2 keys supplied.
• Fire rated.

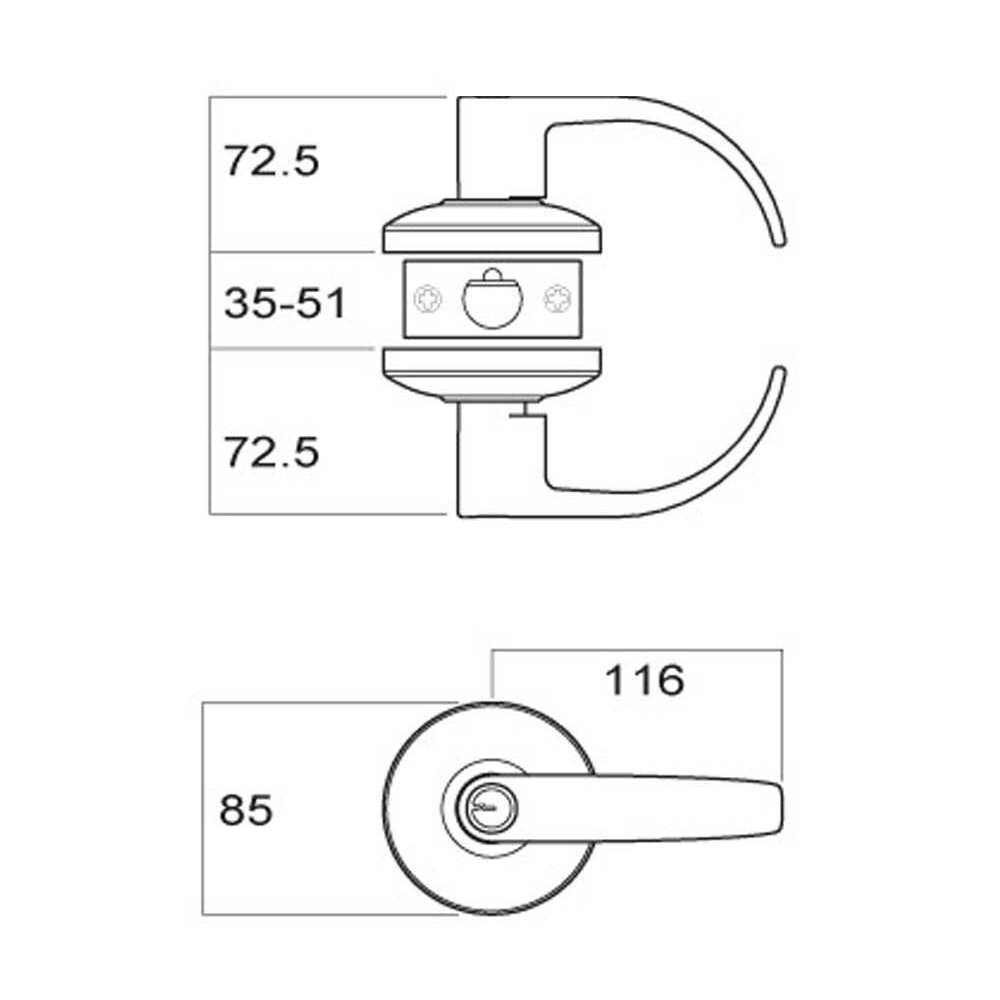

Specifications:

• Door thickness: 35-51mm
• Backset: 70mm
• Max. knob projection: 72.5mm (distance may not include turnsnib)
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed levers
• Rose: 85mm
• Finish: Satin chrome.

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Please note if buying more than 1 lock:
This listing is for 'keyed to differ' (KD) locks, for example:
- if you buy 5 locks, all 5 locks will use a different key

If you need 'keyed alike' (KA) locks, please search for our other listing with 'KA' or 'keyed alike' in the title.
