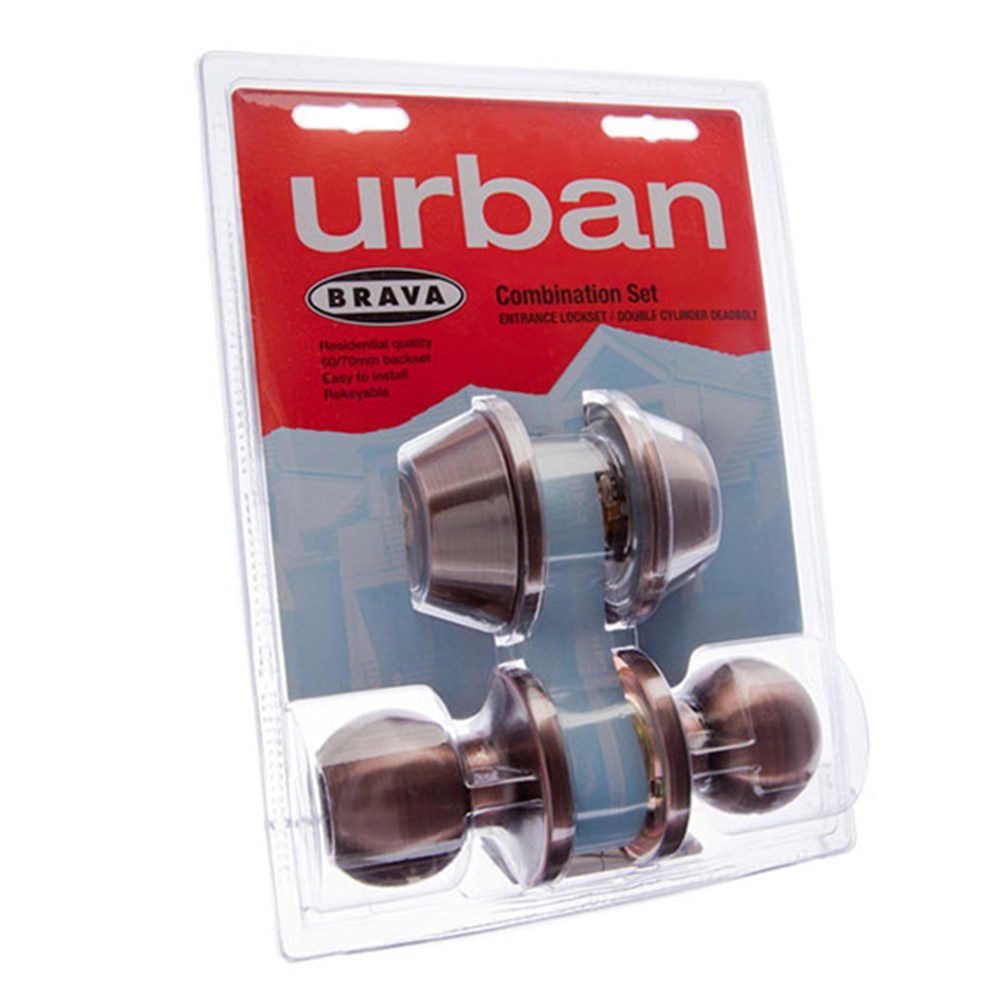

Brava Urban Entrance Lockset and Double Cylinder Deadbolt Combo Pack
T3932DP

Entrance Function

• Key outside locks and unlocks both knobs.
• Turnsnib inside, locks and unlocks both knobs.

Deadbolt Function

• Key locks or unlocks deadbolt from either side.

Features:

• Tiebolt fixing
• Silca LW4 profile
• Spherical knob design
• Rekeyable to 6 pin
• Deadbolt incorporates popular PD/8221 cylinder assembly
• 3 keys supplied
• Supplied display packed (and colour coded) with mounting hardware

Specifications:

Knob

• Door Thickness: 35-45mm
• Backset: 60/70mm (adjustable)
• Max. Lever/Knob Projection (distance may not include turnsnib): 64mm
• Strike: 70mm x 27mm x 1.2mm
• Latch: 60/70mm (adjustable)
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile (C4)
• Rose: 66.5mm
• Function: Entrance
• Handing: Non-handed
• Finish: Antique Copper

Deadbolt

• Door Thickness: 35-45mm
• Backset: 60/70mm (adjustable)
• Max. Lever/Knob Projection (distance may not include turnsnib): 24mm
• Strike: 70mm x 28mm x 1.2mm
• Latch: 60/70mm (adjustable)
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile (C4)
• Rose: 64.8mm
• Function: Entrance
• Handing: Non-handed
• Finish: Antique Copper
