Brio Multifold 30 Door Folding Track System

PLEASE NOTE: Track system only (we don't sell doors)
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Door Track System is incredibly popular because they are stylish and efficient as space-saving doors for separating rooms or partitioning huge work spaces in homes and offices.

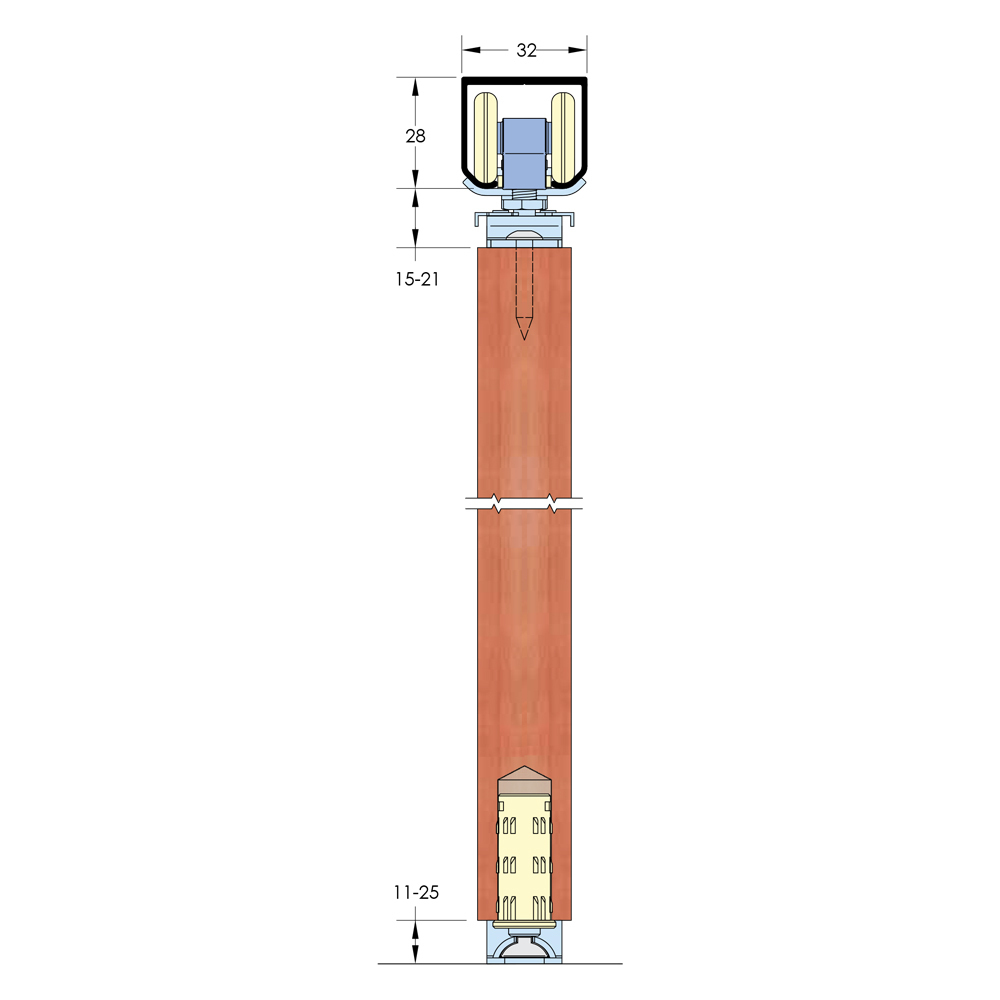

Door Track System Function - doors have rollers attached at the top, you lift them up and place them in the track. The guide on the floor then keeps the door in line as you slide it from one side to the other. Both doors are offset and slide, so one is in front of the other.

Features:

• Suitable for residential wardrobes and folding partitions, using equal sized panels. Panels can be either end folding or centre folding.
• Multifold 30 is an interior folding door hardware system suitable for residential and light commercial folding partitions, cupboards and wardrobes.
• Panels can be either end folding or center folding and weigh up to 30kg.
• The pivot hardware allows equal width doors to end fold in units of two, four or six panels on either side of the opening.
• Centre folding units consist of either one, three or five full-width panels and one half width panel.
• The folding unit is not hinged to a jamb but is pivoted in the track and on the adjustable jamb bracket.
• A guide system across the floor must be used on units of three panels or more.
• End folding units of two, four or six panels can be pivoted to each side of the opening.
• Centre folding units of one, three or five full-width panels and one "half" width panel can be pivoted to each side of the opening.
• Instructions on panel width calculation are shown overleaf.
• Panels should be constructed to provide a secure fitting for the pivots, hangers, hinges, and guides and can be either flush, panelled or of louvre construction.

Specifications:

• Max Panel Weight: 30kg
• Max Panel Height: 2400mm
• Max Panel Width: 650mm
• Min Panel Thickness: 19mm
• Track Length: 1300mm
• Available Function:
  • 2 Panel Track Set
  • 2 Panel Pack of Fittings Only, Without Track
  • 4 Panel Pack of Fittings Only, Without Track
  • 6 Panel Pack of Fittings Only, Without Track
  • Add-on 2 Panel Pack of Fittings Only, Without Track

You will need to buy a 60A Track Mill seperately, please see our recommended products.

• BRO60A20 - Brio Top Track Aluminium Mill 2000mm 60A-20
• BRO60A30 - Brio Top Track Aluminium Mill 3000mm 60A-30
• BRO60A40 - Brio Top Track Aluminium Mill 4000mm 60A-40
• BRO60A60 - Brio Top Track Aluminium Mill 6000mm 60A-60
