Brio Single Run 60 Door Folding Track System
SR60-S20/1

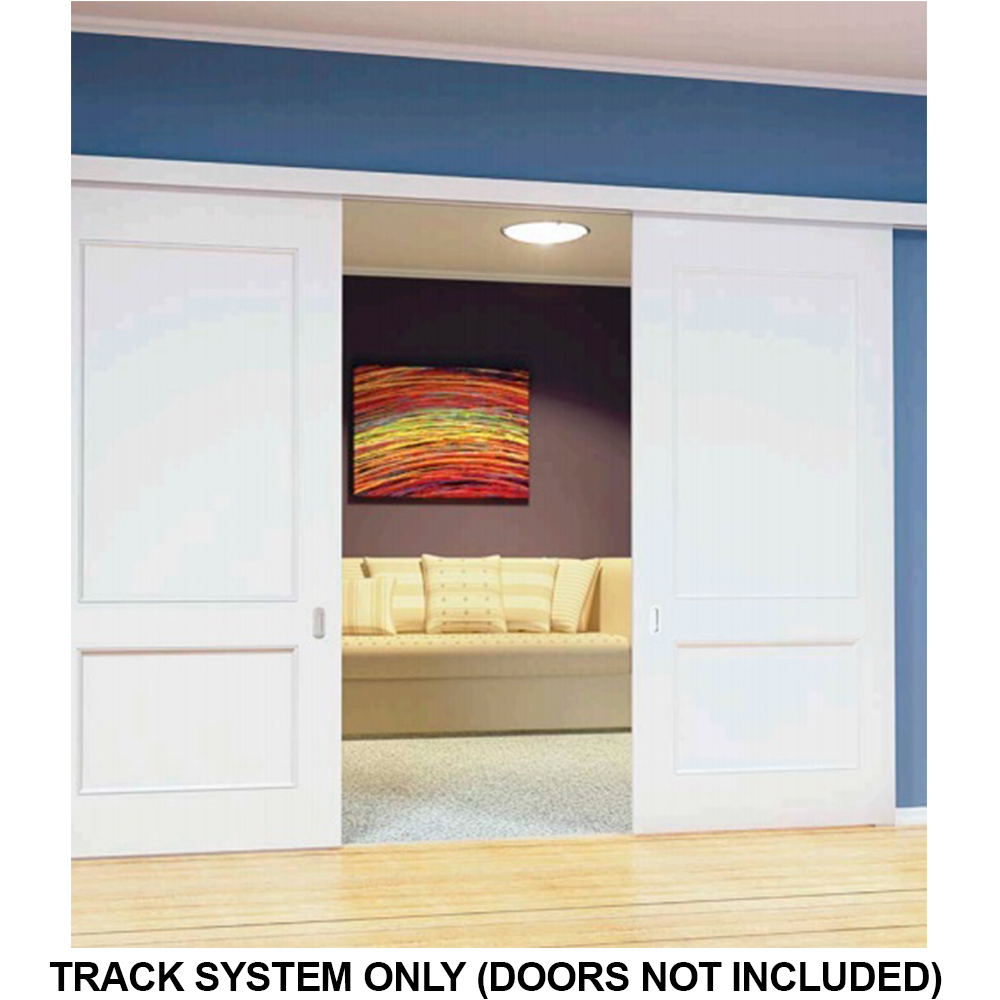

PLEASE NOTE: Track system only (we don't sell doors)
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Door Track System is incredibly popular because they are stylish and efficient as space-saving doors for separating rooms or partitioning huge work spaces in homes and offices.

Door Track System Function - doors have rollers attached at the top, you lift them up and place them in the track. The guide on the floor then keeps the door in line as you slide it from one side to the other. Both doors are offset and slide, so one is in front of the other.

Includes:

• Hangers
• Clip Stops or Soft Closes
• Guide
• Spanner
• Timber Screws

Features:

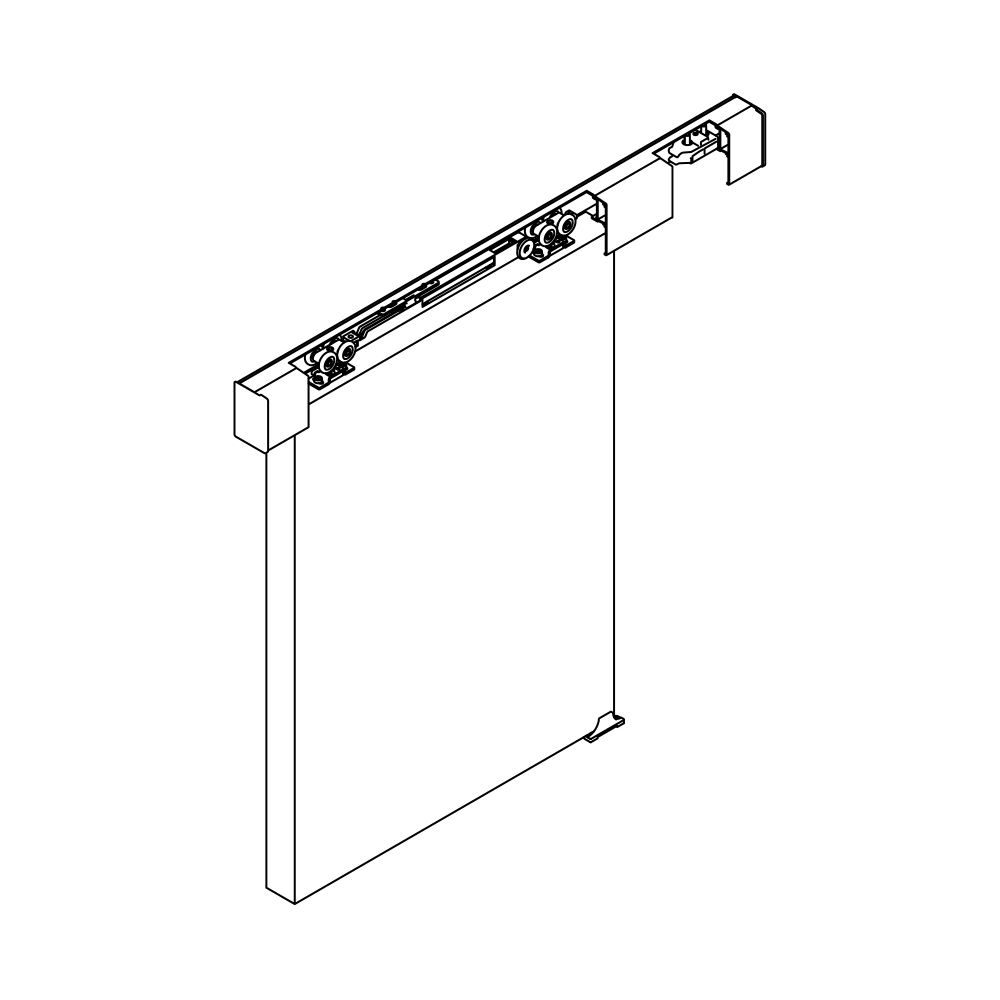

• Single Run 60 is a top hung, aluminum track system for residential and light commercial, interior sliding panels
• It is suitable for doors weighing 60kg in either a single panel application, two panels bi-parting or multiple panels stacked in parallel
• Two, quick release plate options allow for either standard straight sliding applications with side feed or a cavity door application with end feed access
• The clip-on hanger plates allow easy installation and adjustment while Brio's new pelmet quickly dresses the hardware making it an ideal choice for room dividers and pocket door sliders
• Single Run 60 sets are supplied with clip stops which can be upgraded to Brio's 60kg soft close accessory
• Cavity Run 60 is not supplied with clip stops but can be used with Brio's soft close.
• Ideal for sliding panels and shutters in residential and commercial applications. Versatile design allows the opening to be covered by any number of panels.
• The aluminum track may be fitted directly to the lintel, in single or multiple lines, or face fitted to the lintel using a single line of brackets. Pelmet accessory with end caps also available.

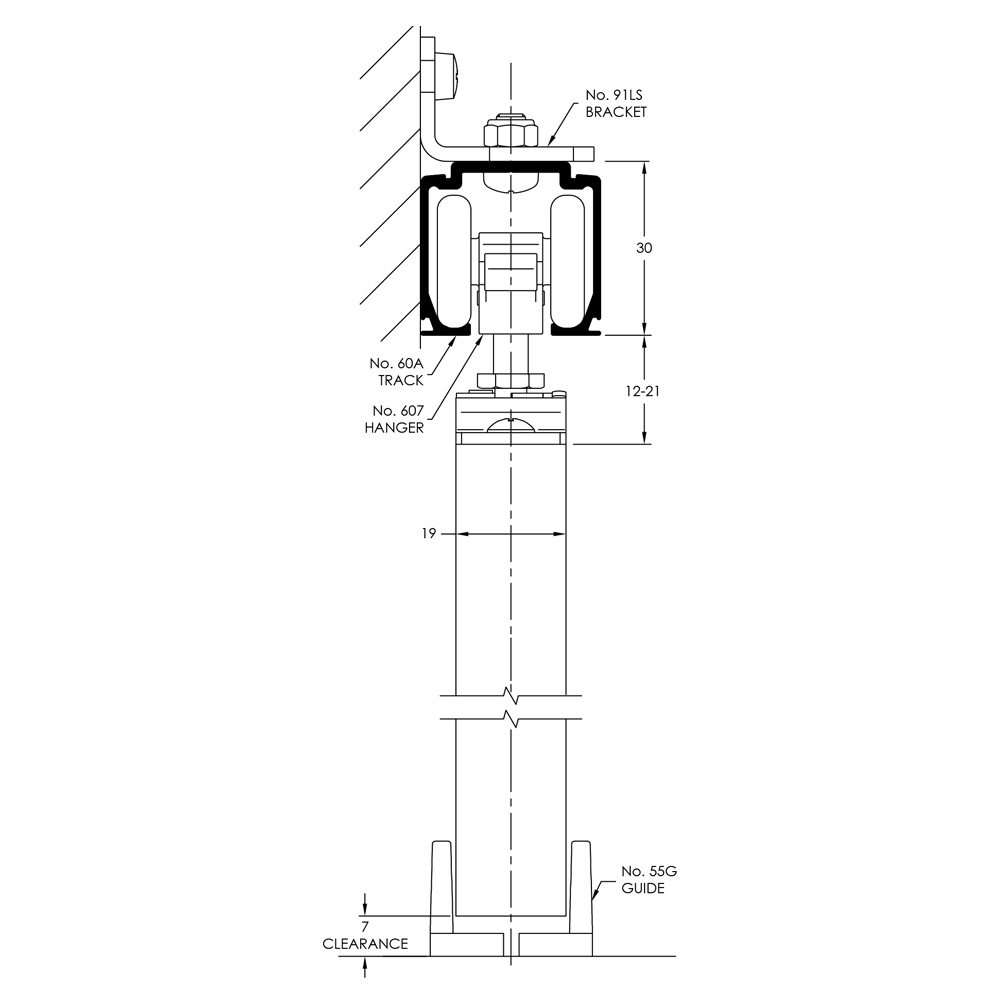

• Hangers come standard with a steel bracket and four nylon tyred wheels with precision bearings. Clip stops provided but can be upgraded to a soft close device for improved operation

Specifications:

• Max Panel Weight: 60kg
• Max Panel Height: 2400mm
• Min Panel Thickness: 19mm
• Function: Soft Close 2000m (Length)
