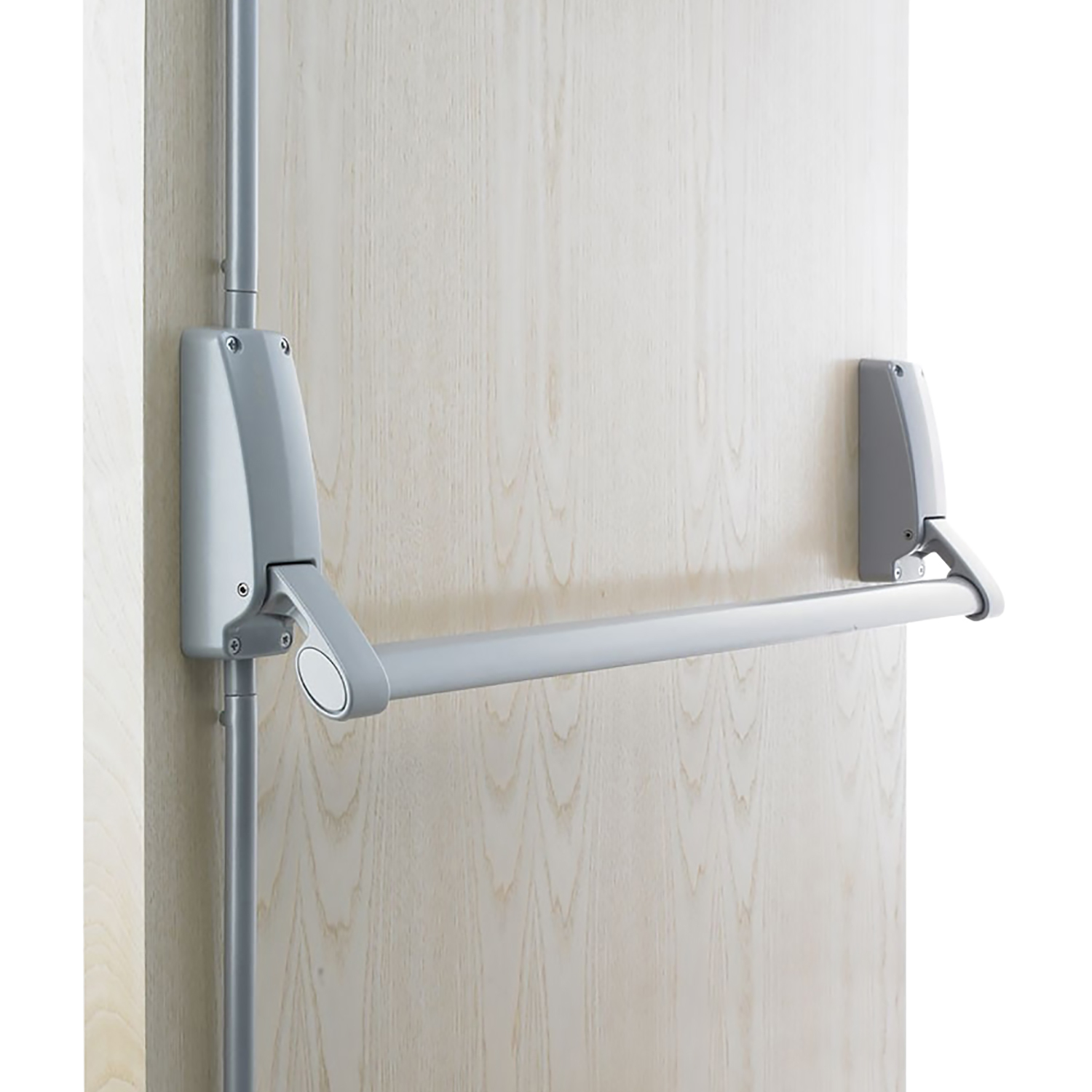

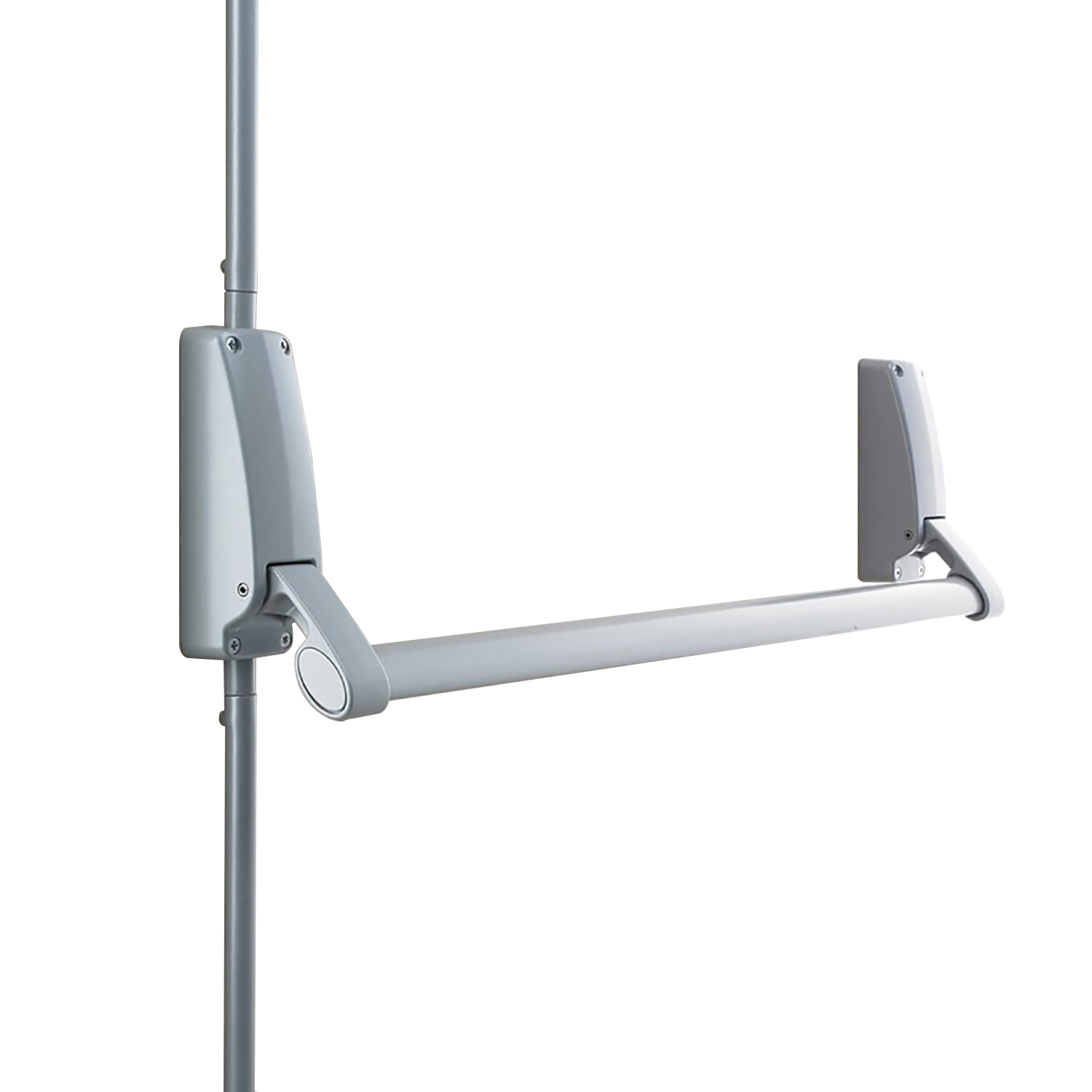

Briton Panic Bar
B376E/SE

Panic Bars are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)

Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Note: Panic bolt only, door not included

• An economical range of push bar devices designed to suit single and double door applications
• Can be used on aluminium, hollow metal or wood swinging commercial doors
• Available as rim and surface mounted vertical panic bolt devices.

Features:

• Suitable for all types of single doors and can be used in conjunction with either another 376E or a 379E for double non-rebated door applications.
• For double rebated door applications the 377E double door set can be used.
• A field sizable to accommodate a range of door openings.
• Two point locking for extra security.
• Anti-thrust device, prevents unauthorised retraction of the latchbolt.
• Non handed - will suit both left and right handed doors.
• Adjustable top shoots.
• Supplied with an easy clean floor socket.

Specifications:

• Door Type: Timber or Metal
• Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
• Door Width: 665mm to 1300mm
• Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
• Material: Zinc diecast chassis. Steel rods and crossbars
• Finish: Silver Enamel
• Warranty: 5 Years
• Supplied as Trade pack with all fixing hardware
