Buster and Punch Escutcheon Plate Euro Profile
NES-071886

Escutcheon is used when a cylinder needs to be trimmed, this tool is utilized. A matching accessory that goes nicely with all-round rose levers and entry handles where they're suited.

Escutcheon Function - An escutcheon is a plate that surrounds a keyhole or a door handle mechanism. It serves both a decorative and protective function, covering the hole where the key is inserted.

Features:

• Works great on all internal doors
• Can be teamed up with our matching door lever handles
• Center-to-center fitting size (screw distance) of 41.5 mm.

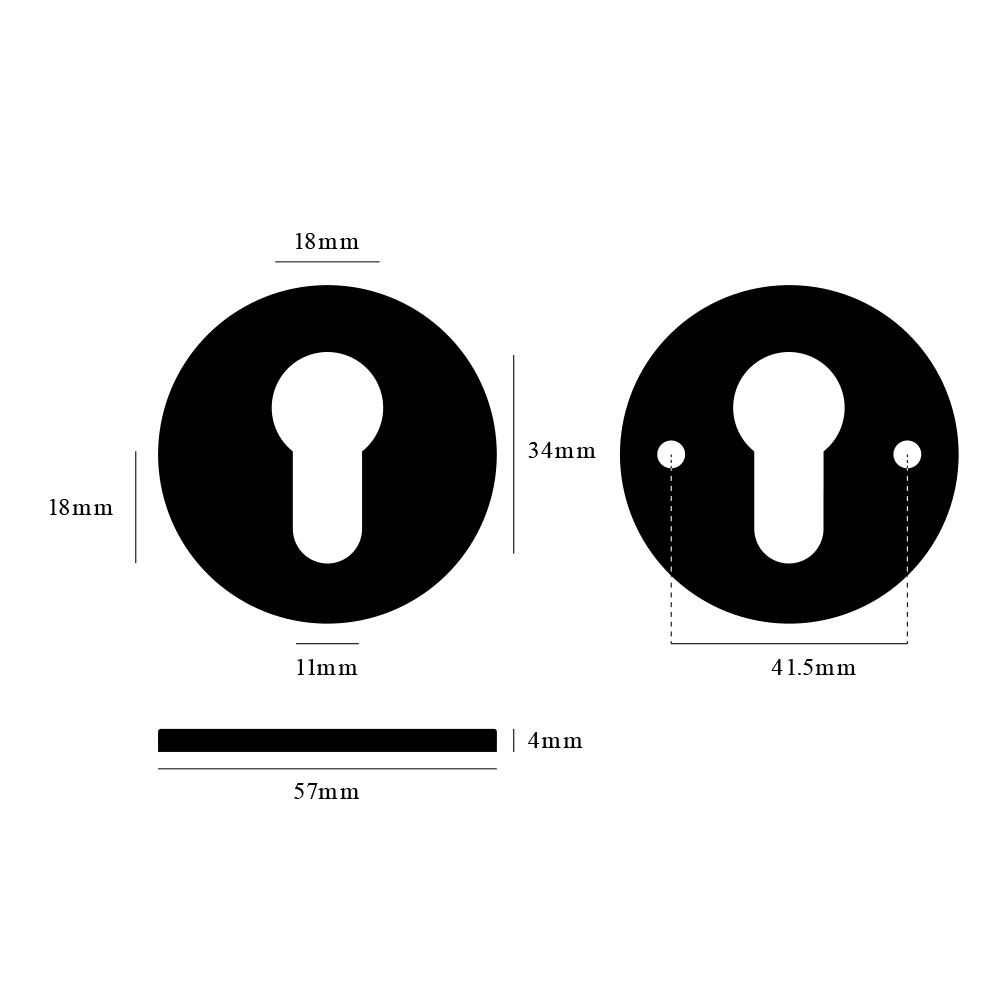

Specifications:

• Profile: Euro
• Material: Solid Metal
• Door Thickness: 35mm to 54mm
• Diameter: 57mm
• Projection: 4mm
• Centre to Centre: 41.5mm
• Euro Hole Length: 22mm
• Euro Hole Width: 8mm
• Fixing: 41.5mm (screw fixing included)
• Finish: Steel

Note:

• This number indicates the cc millimeter / inches measurement for the screw holes that are used to fit the round plate to the door. 41.5mm / 1.63 inches is standard for Australia and North America.
