Buster and Punch Passage Tubular Latch
ZLL-592290

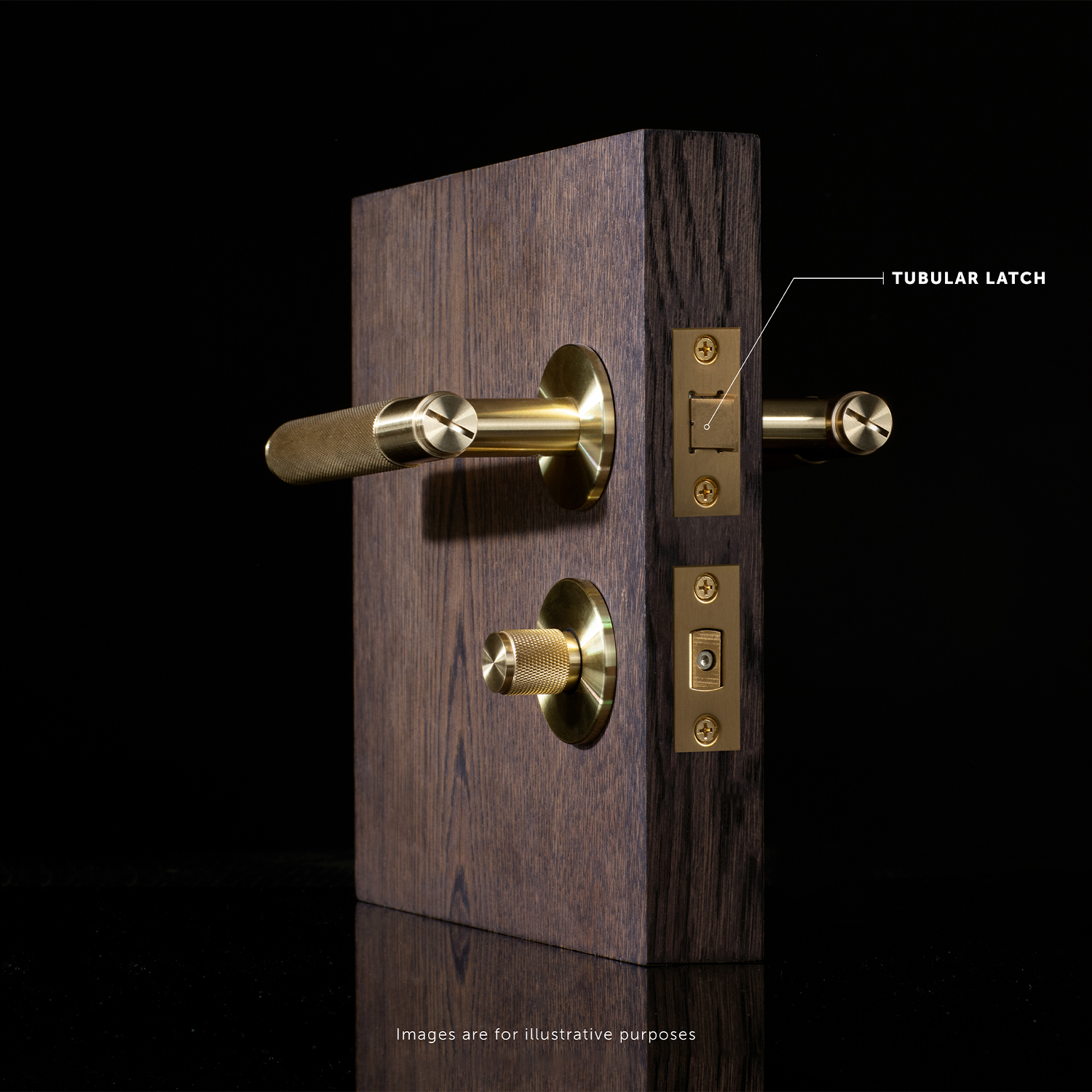

Tubular Latch is suitable for most hinged doors and can be used in conjunction with either lever handles or door knobs.

Tubular Latch Function - a spring-loaded bolt that extends from the edge of the door into the door frame or door jamb when the door is closed. It keeps the door securely closed.

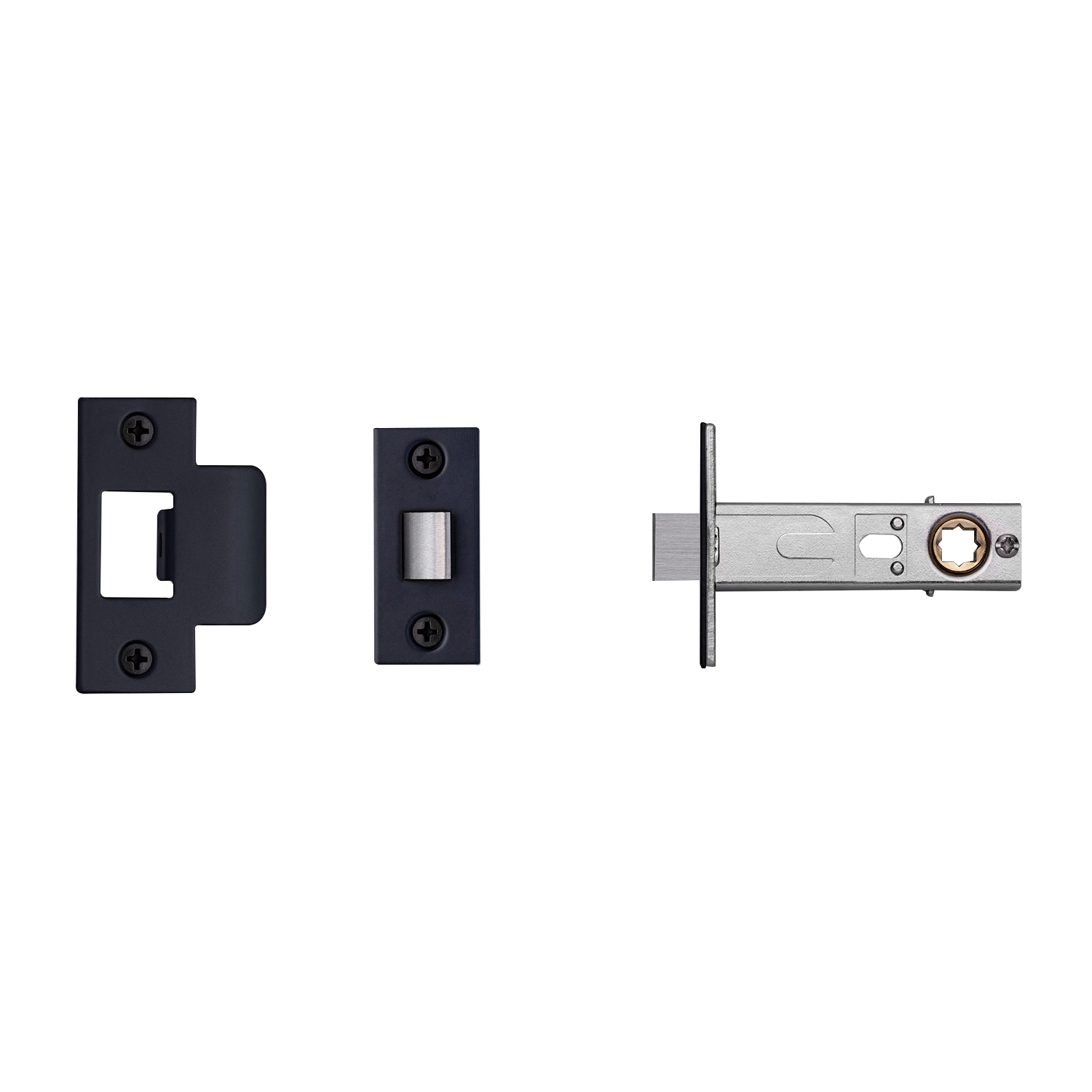

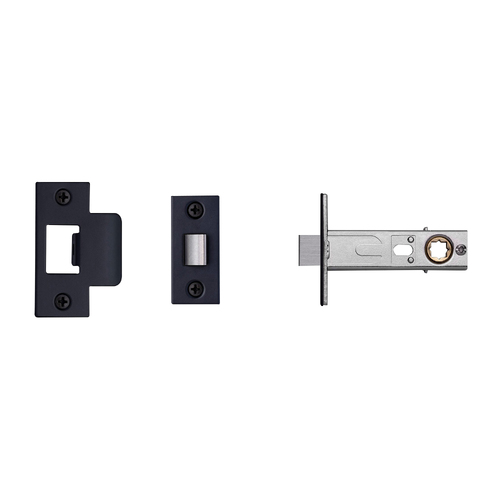

Includes:

• 1 x Passage Latch
• 1 x Face Plate
• 1 x Strike Plate
• 1 x Plastic Dust Box
• all required fixings (including matching wood screws)

Features:

• Designed to work with our passage door handles.

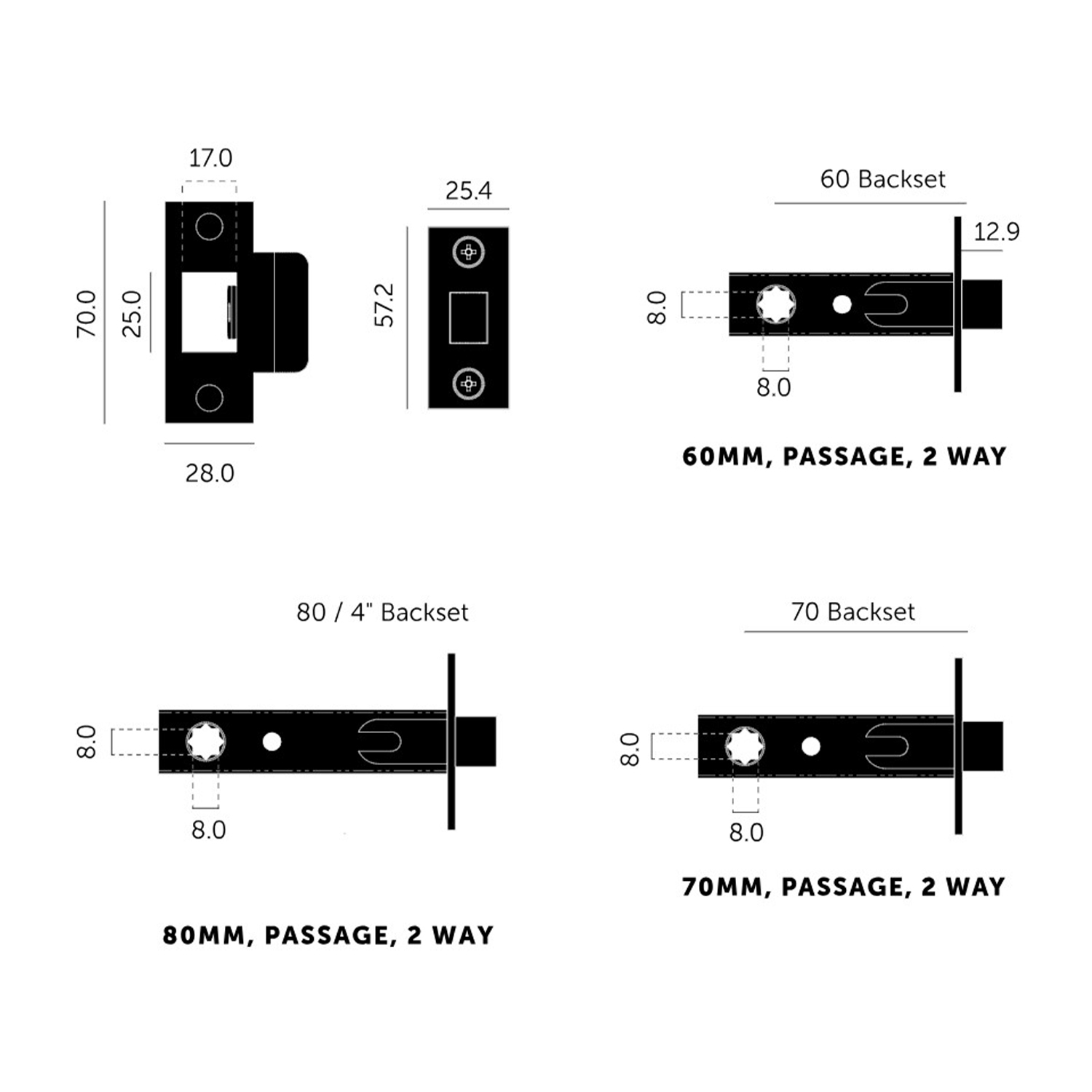

Specifications:

• Backset: 60mm
• Face Plate Height: 57.2mm
• Face Plate Width: 25.4mm
• Strike Plate Height: 70mm
• Strike Plate Width: 28mm
• Strike Plate Inner Height: 25mm
• Strike Plate Inner Width: 17mm
• Bolt Throw: 12.9mm
• Spindle Hole Diameter: 8mm
• Max Door Thickness: 45mm
• Finish: Black
