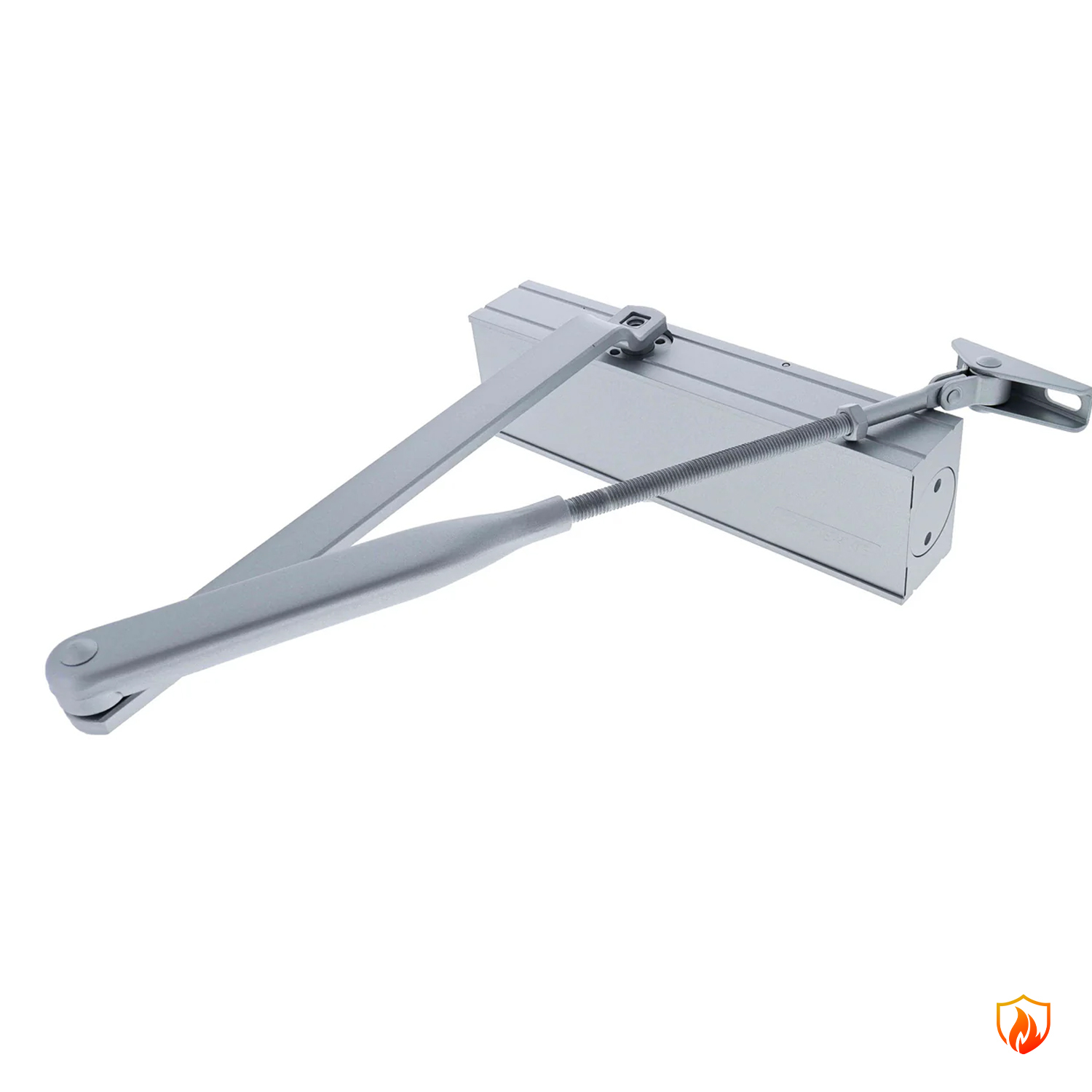

Carbine Standard Arm Door Closer
CDC-3-S

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Cycle tested to 500,000 cycles
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Surface mount
  • Transom mount on push side
  • Rack and pinion
  • Positional mounting for closer strength
  • Supplied with standard and parallel arm fittings
  • Single-action door
  • Non-handed installation
  • Supplied with timber and self-drilling metal screws
  • Constructed with extruded anodized aluminium body
  • Slide rail arms for the CDC range include the hold open insert

Specifications:

  • Standard  Arm: 180 Degree Opening
  • Parallel Arm: 130 Degree Opening
  • Sliding Arm Pull:  180 degree, push 110 degree opening
  • Hold Open: 130 degree opening (180 degree, hold open angle 70 to 150)
  • Adjustable Back Check: 70 to 90 degrees
  • Power: EN 2 to 4
  • Parallel Bracket Mount on Size: 3 to 4
  • Max Door Width: 1100mm
  • Weight Capacity: 40kg to 80kg
  • Backcheck: Yes
  • Length: 236mm
  • Width: 60mm
  • Height: 39mm
  • Finish: Silver

Ratings:

  • Tested to EN1154 standards
SKU LAKCDC3S
Brand Carbine
