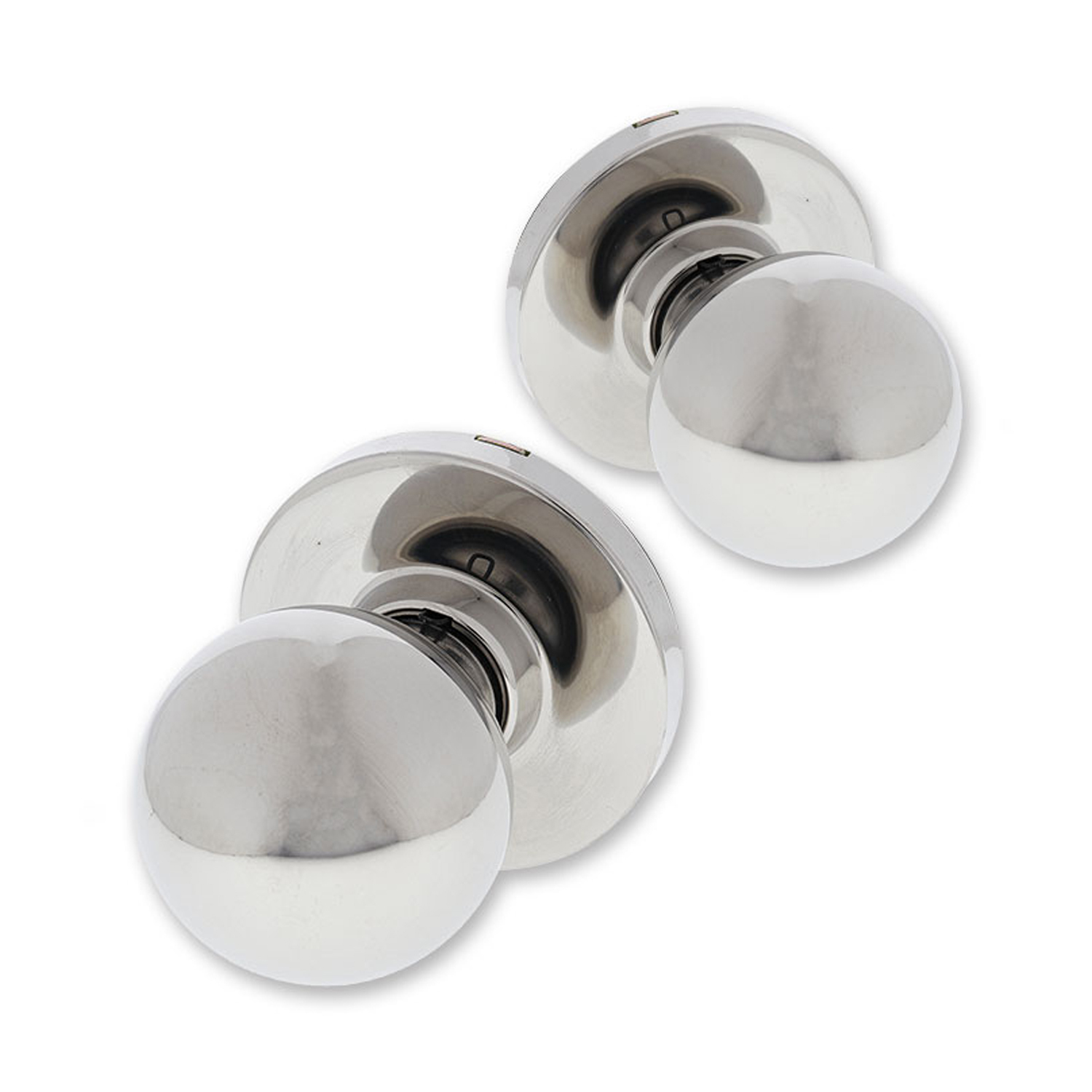

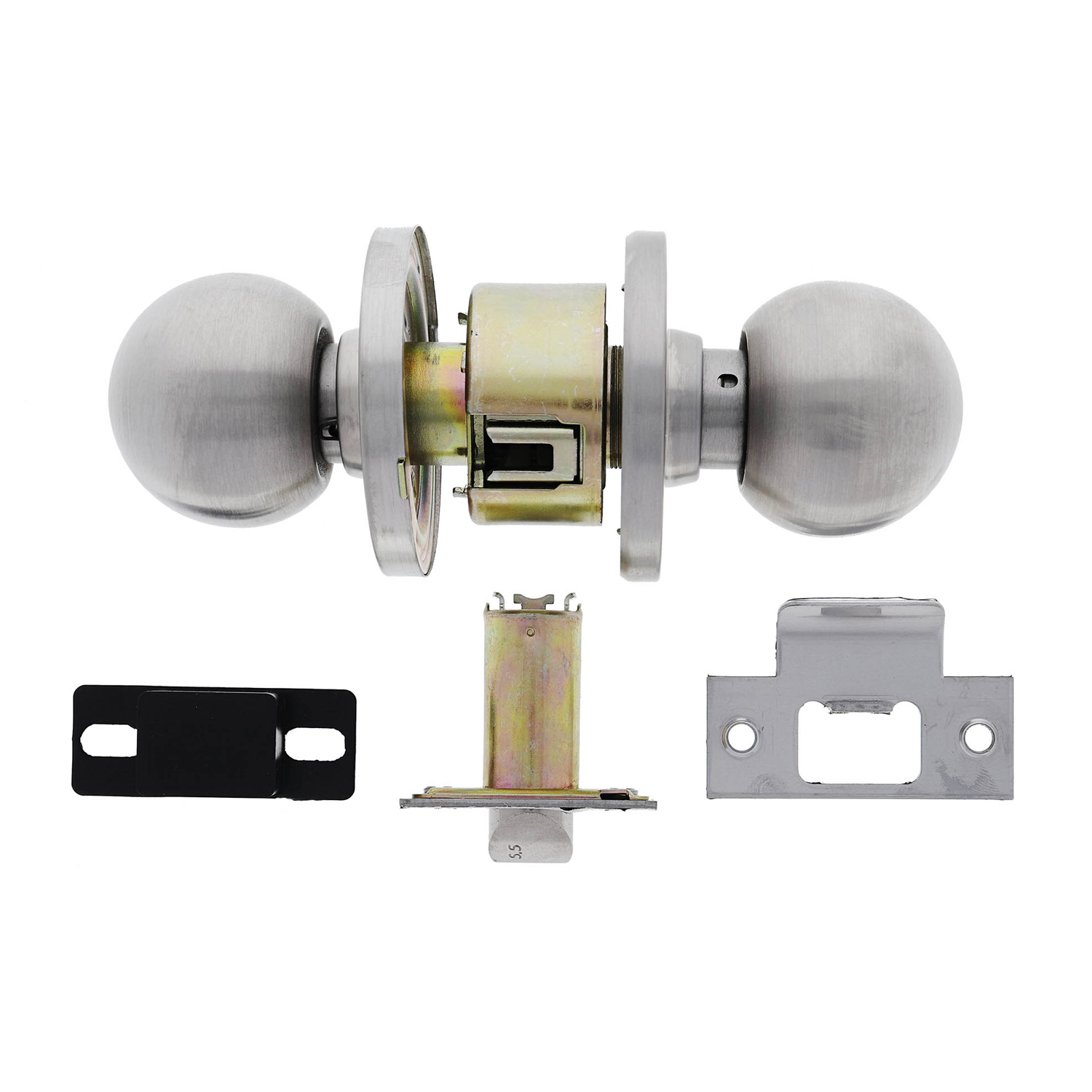

Carbine Epsom Passage Knob Set
PE3082-70

Passage Outside Function: Opened by knob at all times.

Passage Inside Function: Opened by knob at all times.

• Has been praised for its versatility, reliability, ease of use, and ease of installation.
• It is a high grade commercial knobset which has a cylindrical fixing.
• Distinctive by its solid round knob shaped look and large rose, they are a very popular choice in the commercial market and have gained a reputation for being a proven reliable performer.

Features:

• Fire rated for 2 hours to Tyco specifications
• Tested to 400,000 cycles no failures
• Cylindrical fixing
• Especially made to take restricted in line and nearly all higher security restricted cylinders
• Suits KeyLine LKW9 (Silca LW5) profile
• Spare cylinder available for TES5 to suit Gainsborough keyway CLAIC-TES5
• Stainless steel latch bolt with a 12mm projection

Specifications:

• Door Thickness: 35mm - 45mm
• Backset : 70mm
• Cylinder: 6 pin PD style brass
• Rose Diameter: 75mm
• Fixing: Concealed
• Finish: Satin Stainless Steel
• Function: Passage
