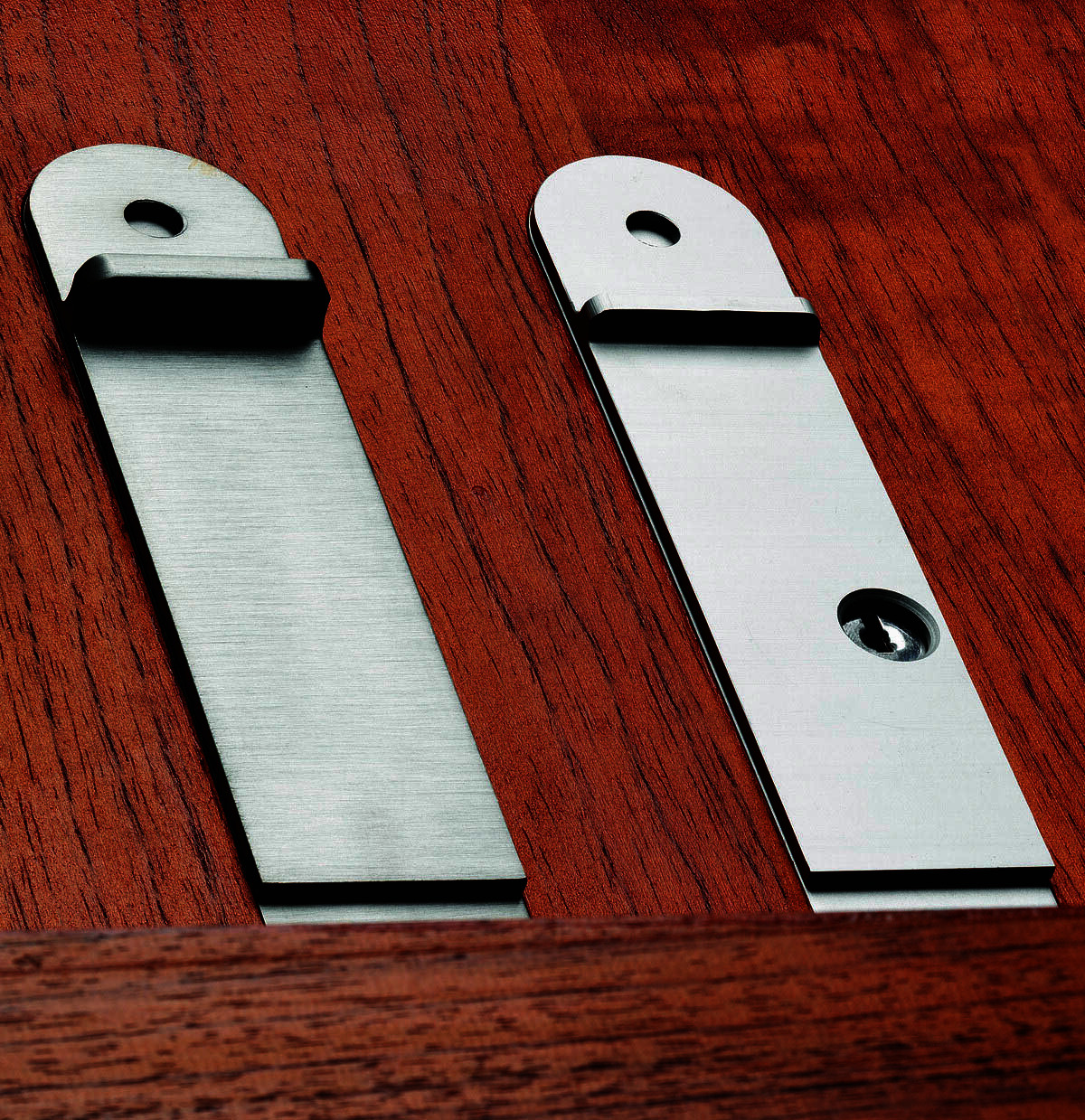

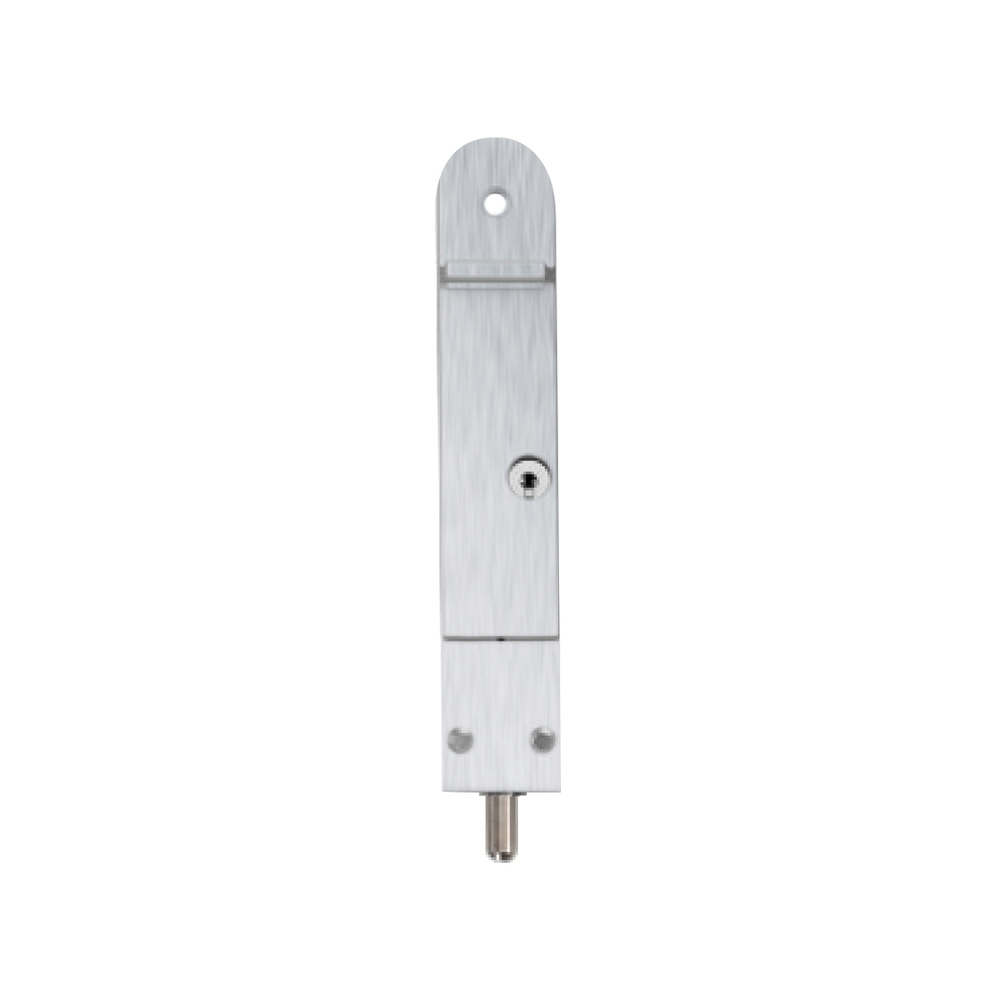

Centor DF Drop Bolt Keyed
DBFO200KRX

Drop Bolt perfect for applications where an electric strike is impractical, such as swing-through, double-action doors.

Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch. The previous door locking system's locking plate is replaced by an electric door strike system.

Features:

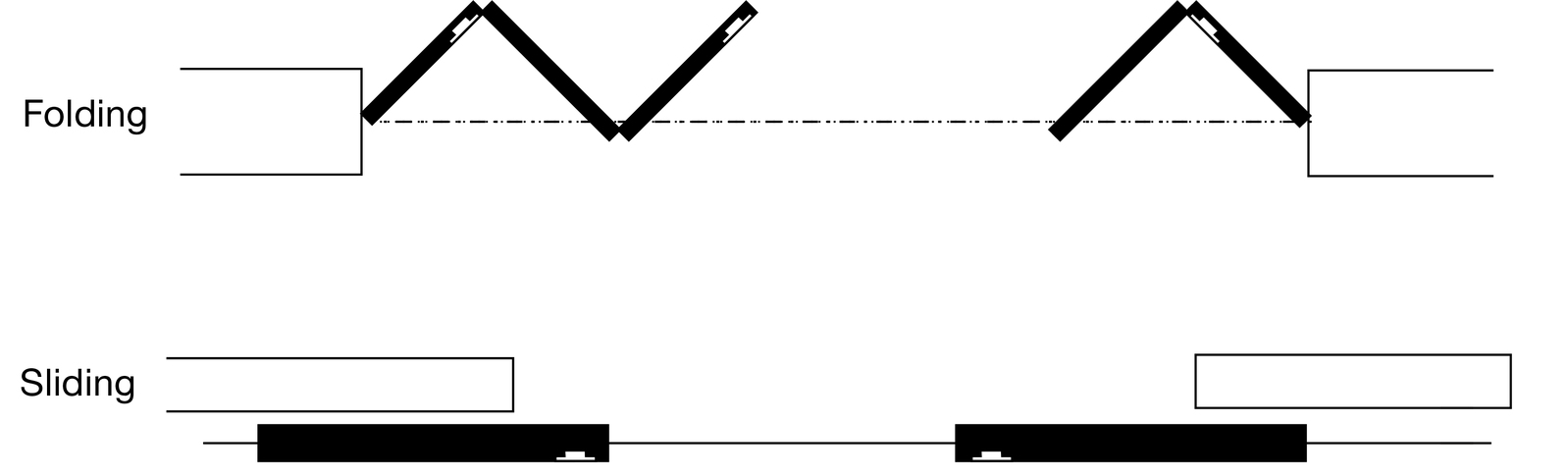

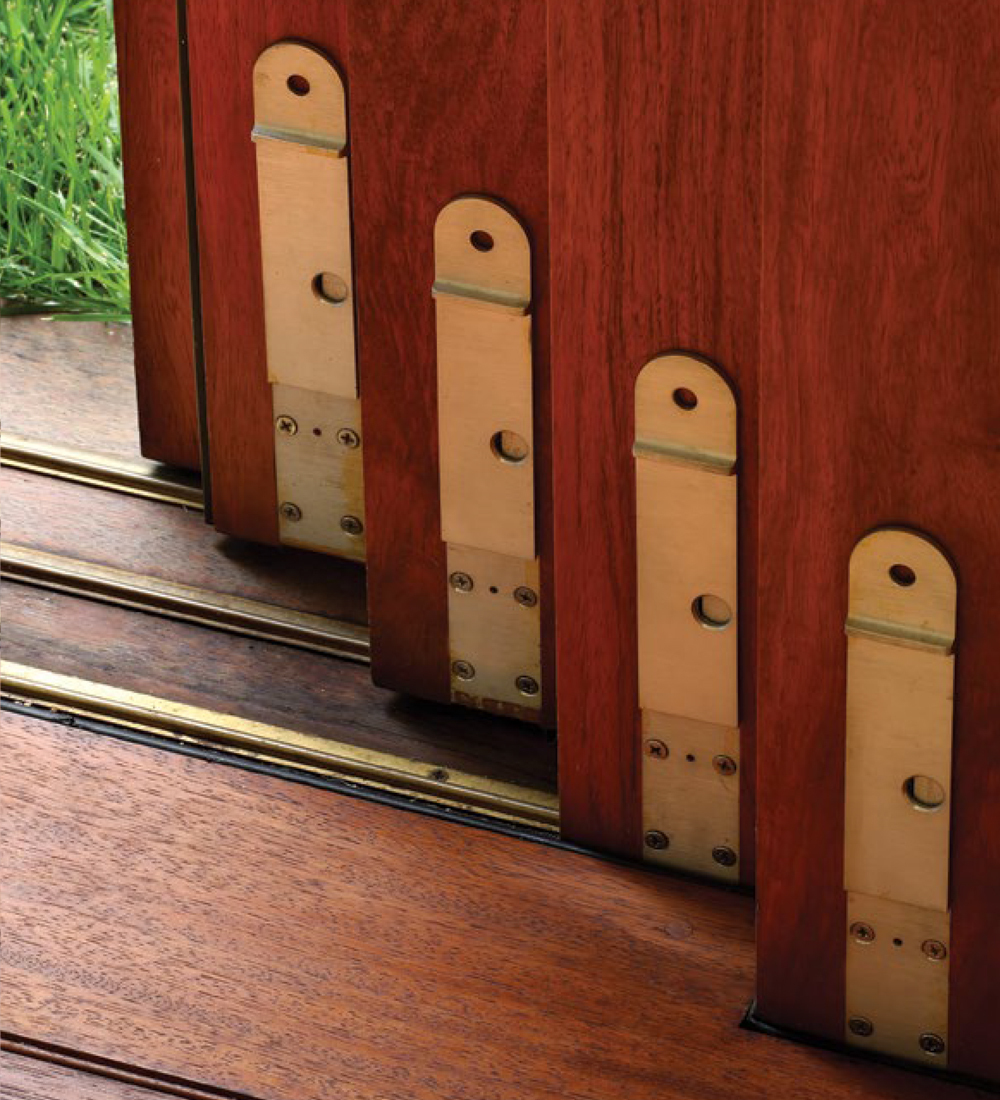

• Suited to outward opening bifold doors, french doors and sliding doors
• Ccomes with a 20mm throw and rounded styling
• An extensive range of lengths (to 1000mm) and finishes are available
• DF dropbolts will resist high winds and is rated to resist a 250kg load in Western Red Cedar and 450kg in Amoora
• Centor can provide a test certificate on application
• DF features a unique damage-proof mechanism for bifold doors which prevents the bolt being operated if the key is left in the lock
• Bolts are easily installed with a dedicated router bit
• Bolts are available keyed alike and may be rekeyed by a professional locksmith

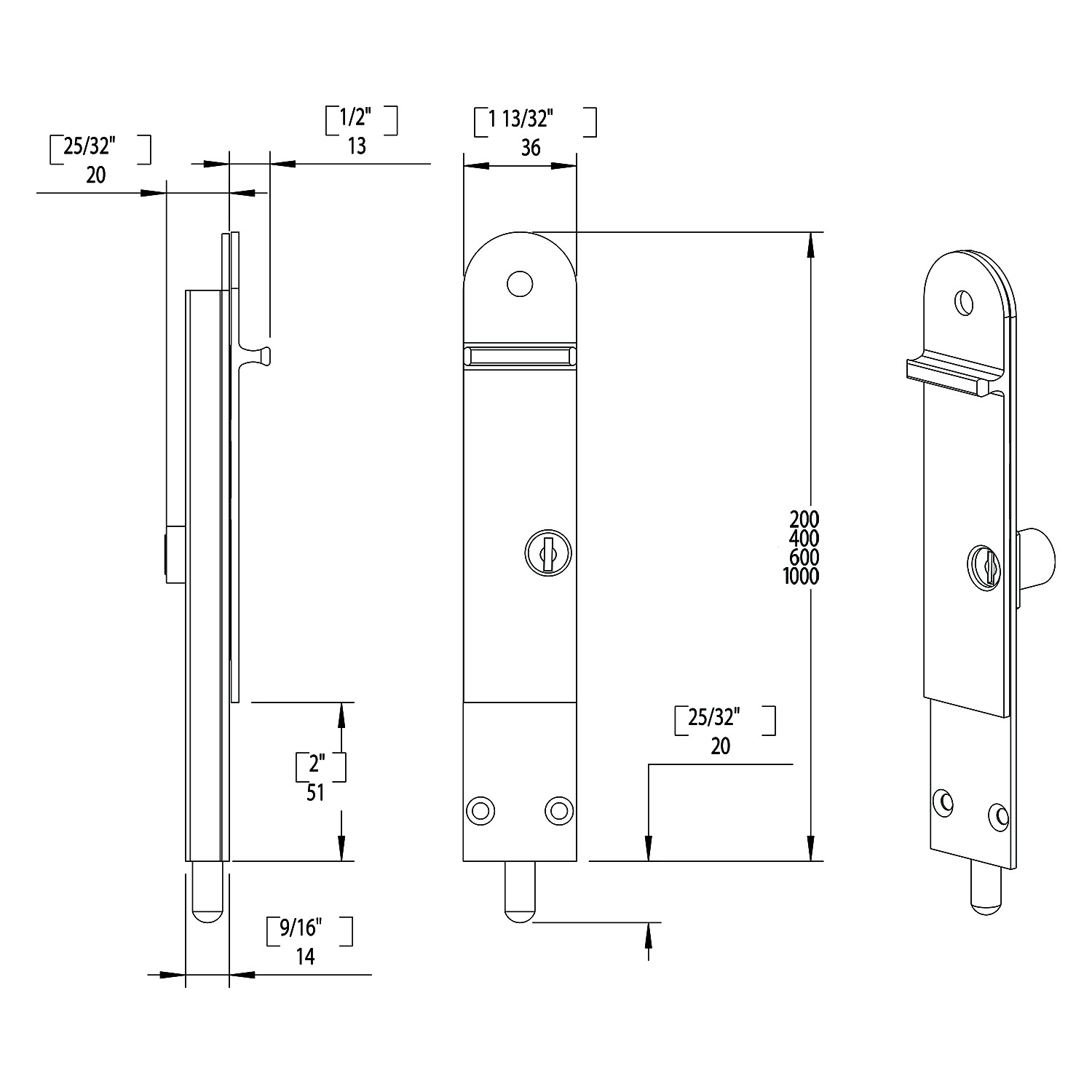

Specifications:

• Max wind load: 450kg force
• Min door thickness: 35mm
• Security: Keyed
• Dropbolt lengths: 200mm
• Throw length: 20mm
• Finish: Brushed Metallic
