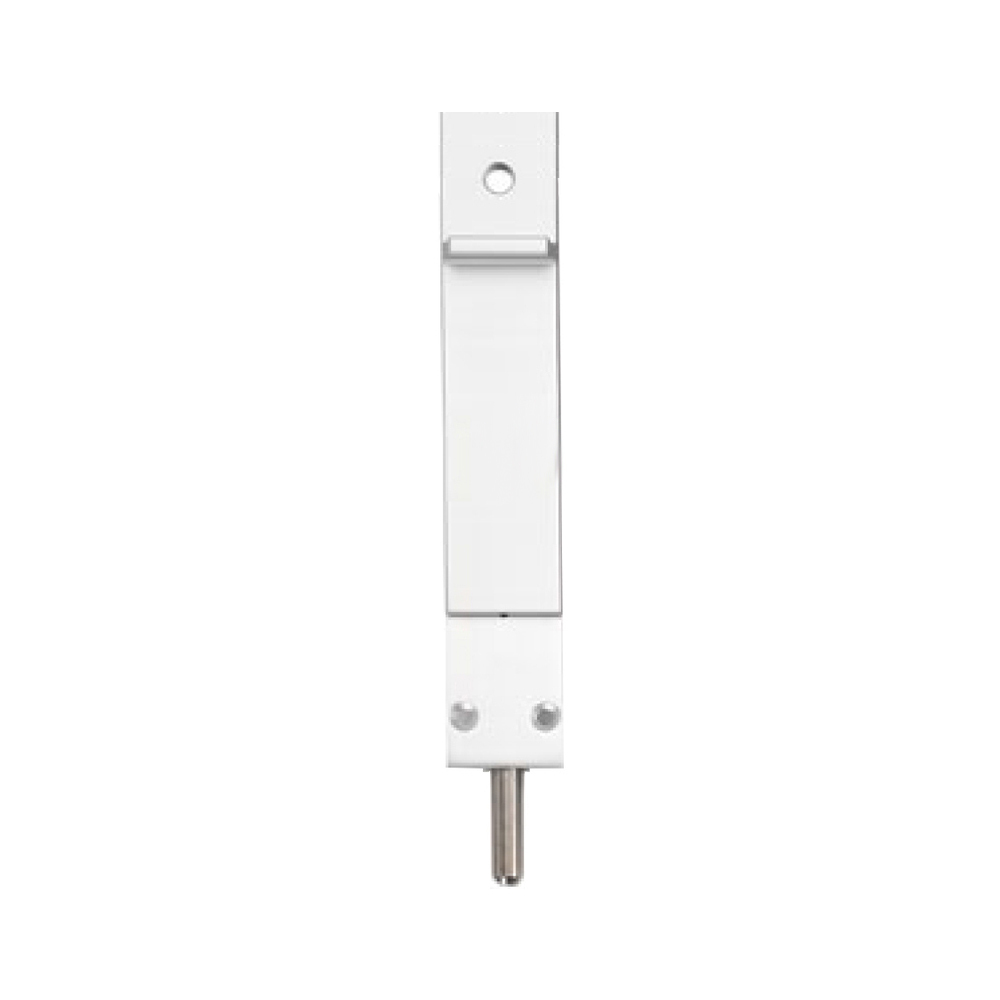

Centor DH Drop Bolt Non-Keyed
DBHA200NSW

Drop Bolt perfect for applications where an electric strike is impractical, such as swing-through, double-action doors.

Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch. The previous door locking system's locking plate is replaced by an electric door strike system.

Features:

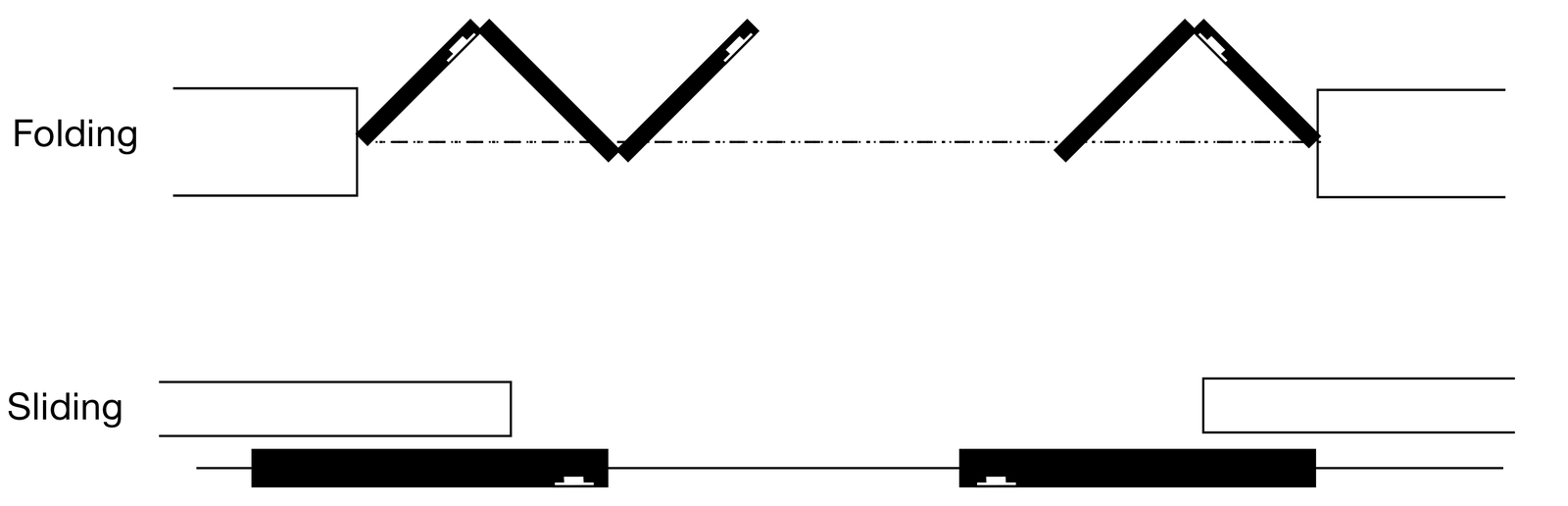

• Suited to outward opening bifold doors, french doors and sliding doors
• Features an extended 40mm throw
• Can be specified in any appropriate application where its distinctive square-edged styling is preferred
• DH dropbolts will resist high winds and are rated to resist a 250kg load in Western Red Cedar and 450kg in Amoora.
• DH features a unique damage-proof mechanism for bifold doors which prevents
• Bolt being operated if the key is left in the lock
• Easily installed with a dedicated router bit
• Bolts are supplied
• keyed alike and may be rekeyed by a professional locksmith

Specifications:

• Max wind load: 450kg force
• Min door thickness: 35mm
• Security: Non-Keyed
• Dropbolt lengths: 200mm
• Throw length: 40mm
• Finish: White Powdercoat
