Dormakaba EN1-4 Cam Action Door Closer Pull Side With Arm
TS92G24GNAB

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

• 1 x Door closer TS92G (42030101)
• 1 x Angle Bracket (64430001)

Cam-action door closers with slide channel

Designed especially for interior applications, the universal Dormakaba TS 92 door closer for standard doors in the award winning Contur design offer’s excellent ease of use due to the EASY OPEN Cam action technology.

The perfect choice for interior doors

The Dormakaba TS 92 is a perfect project partner to the TS 93 door closer system. Both door closers feature the award winning Contur design and EASY OPEN technology with slide channel. The TS 92 cam action door closer offers excellent quality and an optional range of accessories all at an affordable price.

Features:

• EASY OPEN technology
• Perfect for interior applications
• Door widths up to 1100 mm
• For single- and double-leaf doors
• Easy installation
• Standard installation for push side or transom installation for pull side

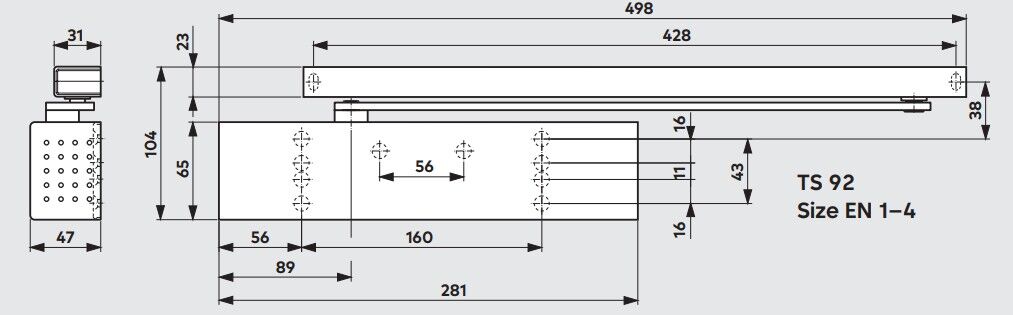

Specifications:

• Closing force Adjustable: EN1-4
• Height: 65mm
• Length: 281mm
• Overall Depth: 47mm

Dormakaba G-N Angle Bracket For TS92/TS93 N/RF Door Closer
64430001

Features:

• For push-side fixing of the slide channel to door frames with a deep reveal

Specifications:

• To Suit: TS92G and TS93G
• Finish: Silver

Standards and Compliance:

• Fire Rated: Has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
• Disabled Access Australian Standard (AS1428.1) Design for access and mobility
