Dormakaba Floor Spring EN 1-4 Non Hold Open Combi Pack For Aluminium Door
BTS75VA

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

Includes:

• 1 x Dormakaba EN1-4 Floor Spring Non Hold Open (61701000)
• 1 x Dormakaba Top Centres 8062 (8062)
• 1 x Dormakaba Bottom Strap 7422 (46010002)
• 1 x Dormakaba Universal Cover Plate 7510V (46700059)
• 1 x Dormakaba Sealing Compound 2300 (45090086)
• 1 x Dormakaba 8064 Cover Plate Satin Stainless Steel (46020044)

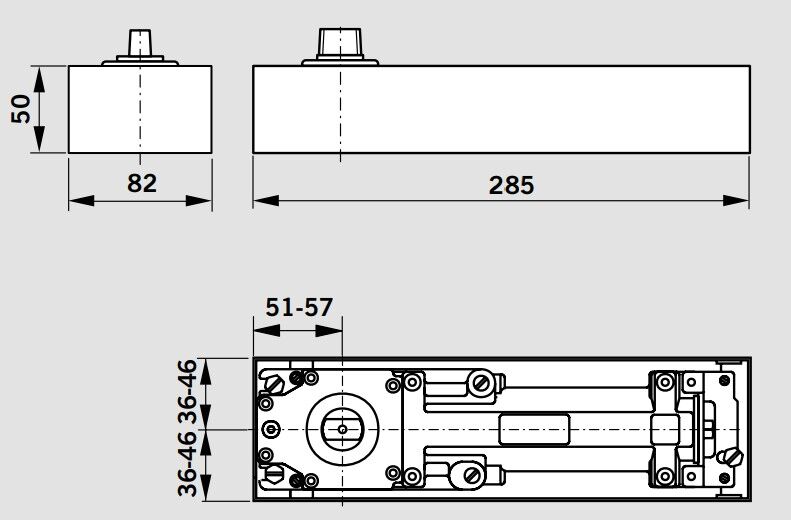

Dormakaba BTS75V EN1-4 Floor Spring Non Hold Open With Back Check
61701000

Features:

• Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.

Specifications:

• Length: 285mm
• Width: 82mm
• Height: 50mm
• Weight: 3.0kg
• Non-hold-open

Dormakaba 8064 Cover Plate
46020044

Features:

• Cover plate for adjustable top centers
• Suits BTS series floor springs
• Supplied with screws

Specifications:

• Length: 165mm
• Width: 25mm
• Height: 1mm

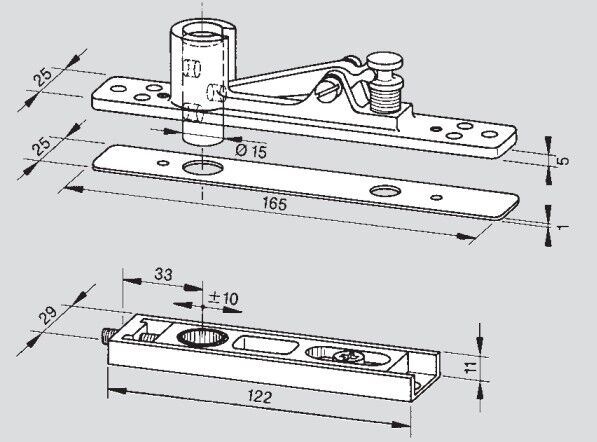

Dormakaba 8062 Top Center
46300003

Features:

• Suitable for double action steel, aluminum and timber doors
• Made of die-cast aluminum
• It comprises of a frame portion with adjustable pin for deep profiles up to a max. 20mm, and a door portion with needle bearing
• Suits BTS 75V

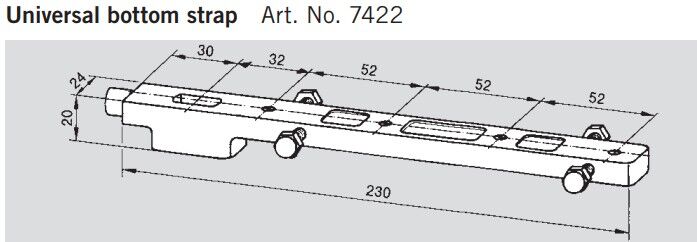

Dormakaba 7422 Bottom Strap
46010002

Features:

• Suits BTS floor springs for double action aluminum doors
• Drop forged steel, zinc-plated; adjustable to various frame profiles

Dormakaba Sealing Compound 2300
45090086

Features:

• Recommended for floor springs exposed to wet conditions
• For filling the cavities between the floor spring body and the cement box to prevent moisture penetration (mandatory according to e.g. VOB regulations for wet rooms).

Notes-icon:

• The contents of the two tins (the basic fluid and the accelerator) are sufficient for one floor spring.

Warning-icon:

• Use compound immediately after mixing. Hardening process takes place after 20 minutes. After 24 hours the sealing compound is fully hardened.

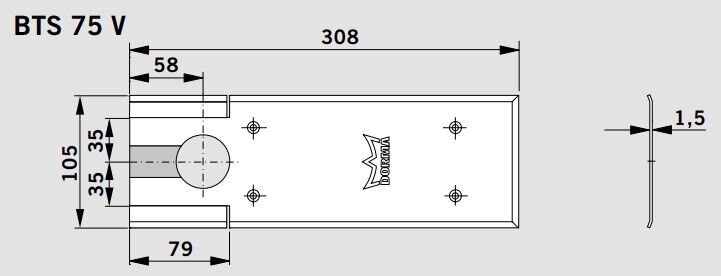

Dormakaba 7510V Universal Cover Plate Satin Stainless Steel BTS75
46700059

Features:

• Suits BTS 75V floor spring
• Adaptable for right or left-hand single action applications by simply snapping off the appropriately pre-blanked corner sections. For center pivoted (double action) doors, the corner sections remain in place.

Specifications:

• Length: 308mm
• Width: 105mm
• Thickness: 1.5mm
• Finish: Satin Stainless Steel
