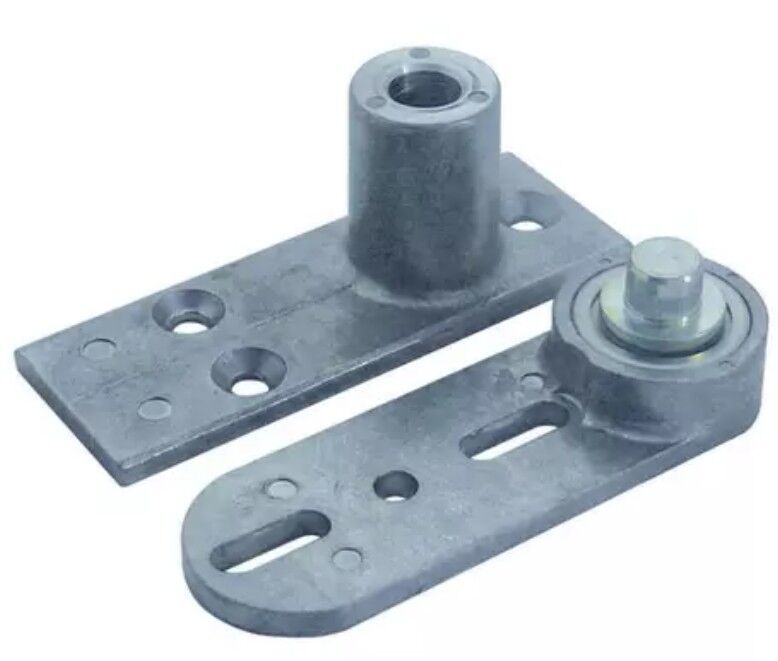

Dormakaba RTS85 Transom Closer Floor Pivot
65410300

Transom Closer Floor Pivot used on aluminium doors, the floor portion of pivot is fitted directly to floor.

Features:

  • Used in conjunction with the Dormakaba RTS85 transom closer

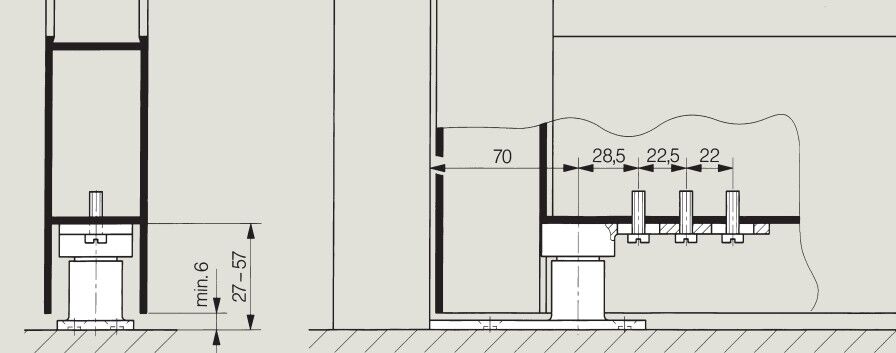

  • For bottom rails with channel depth of 18-50mm (floor portion may be shortened to suit bottom rail)

Specifications:

  • Heigth: 57mm
  • Application: Aluminium Doors
  • Side-Load Installation: achieved by offering the door in the closed position, onto the floor pivot. The closer arm, fitted in the upper door rail, is connected to the spindle and secured with a clamping piece.





SKU DORM65410300
Barcode # 2000000013763
Brand Dormakaba
