Dorma TS72 Door Closer
22252301

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• The Dorma TS72 standard closer is non-handed closer suitable for all common doors and does not require a mounting backplate
• With backcheck, adjustable latching action and adjustable closing speed of 180degrees, 15degrees and 15degrees - 0degrees via 2 separate valves
• Suitable for installation on doors up to 1100mm (W)
• With parallel arm fixing, the closing force is approximately 20 Nm for doors up to 950mm

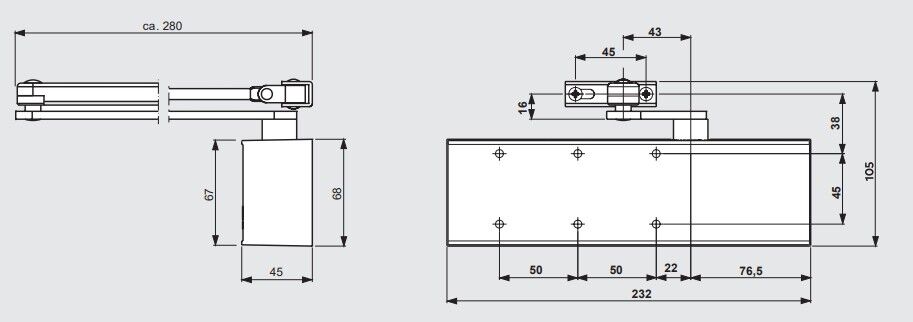

Specifications:

• Strength: EN2 to EN4
• Length: 232mm
• Width: 45mm
• Height: 68mm
• Weight: 1.2kg
• Finish: Silver

Standards and Compliance:

• Fire Rated: Has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets..
• Disabled Access Australian Standard (AS1428.1) Design for access and mobility
