Dormakaba TS73EMF EN5 Door Closer
53040101

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

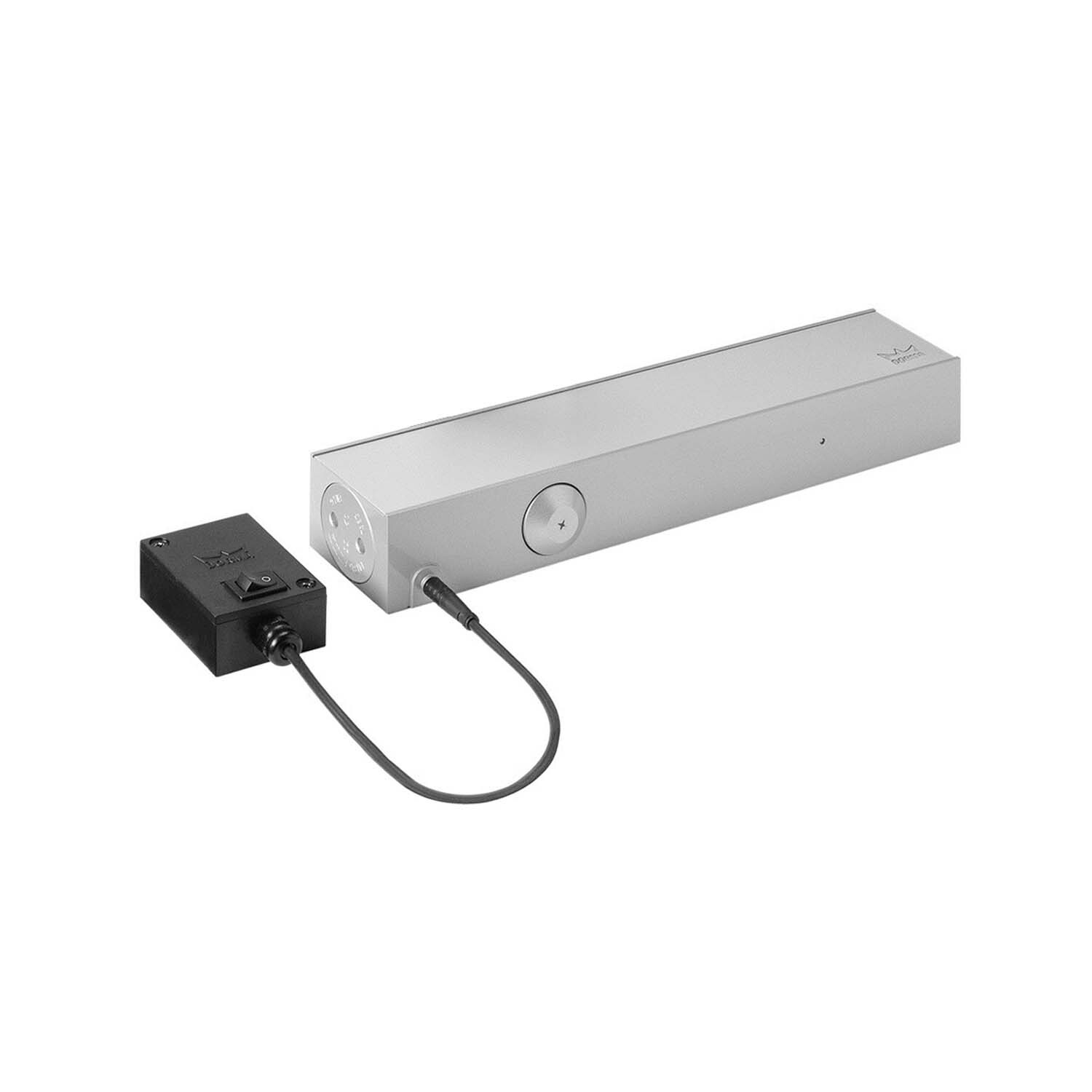

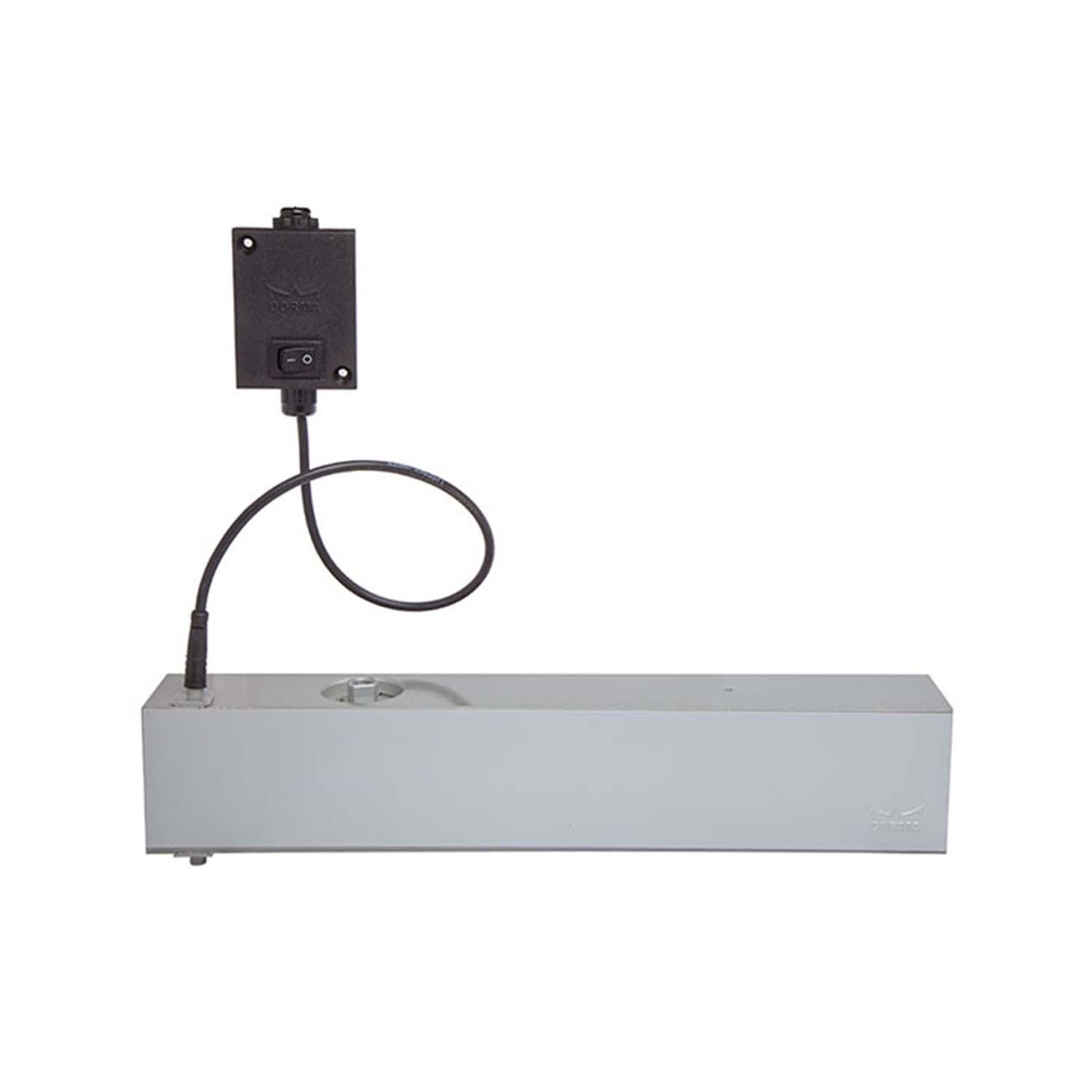

  • Combination of hydraulic door closer and electromagnetic hold-open unit.
  • The hold-open of the door is performed under electromagnetic control.
  • In the event of a fire, door is reliably closed by the integral hydraulic closer. Cclosing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Features:

  • Suitable for fire doors
  • Input voltage is 24VDC
  • Power input max is 2 volts
  • Closing speed adjustable by valve and latching speed is adjustable by arm.
  • Free selection of the hold open point (opening angles over 75°) is variable at any time without the need for adjustment of setting controls.
  • Body Only

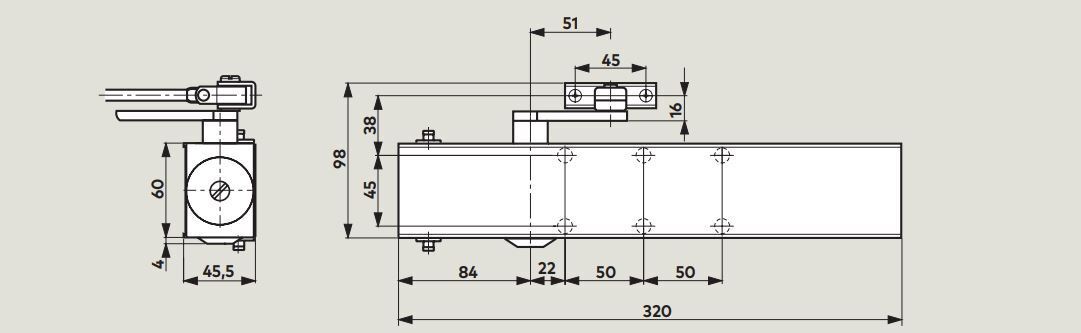

Specifications:

  • Spring Strenght: EN5
  • Max Door Width: 1250mm
  • Operating Voltage: 24V DC
  • Type: Standard Fix
  • Length: 320mm
  • Width: 45.5mm
  • Height: 60mm
  • Finish: Silver

Certification:

  • CE Marked
  • CERTIFIRE approved for fire doors: ITT120 MM/IMM240
  • BSI approved BS EN1155
SKU DORM53040101
Brand Dormakaba
