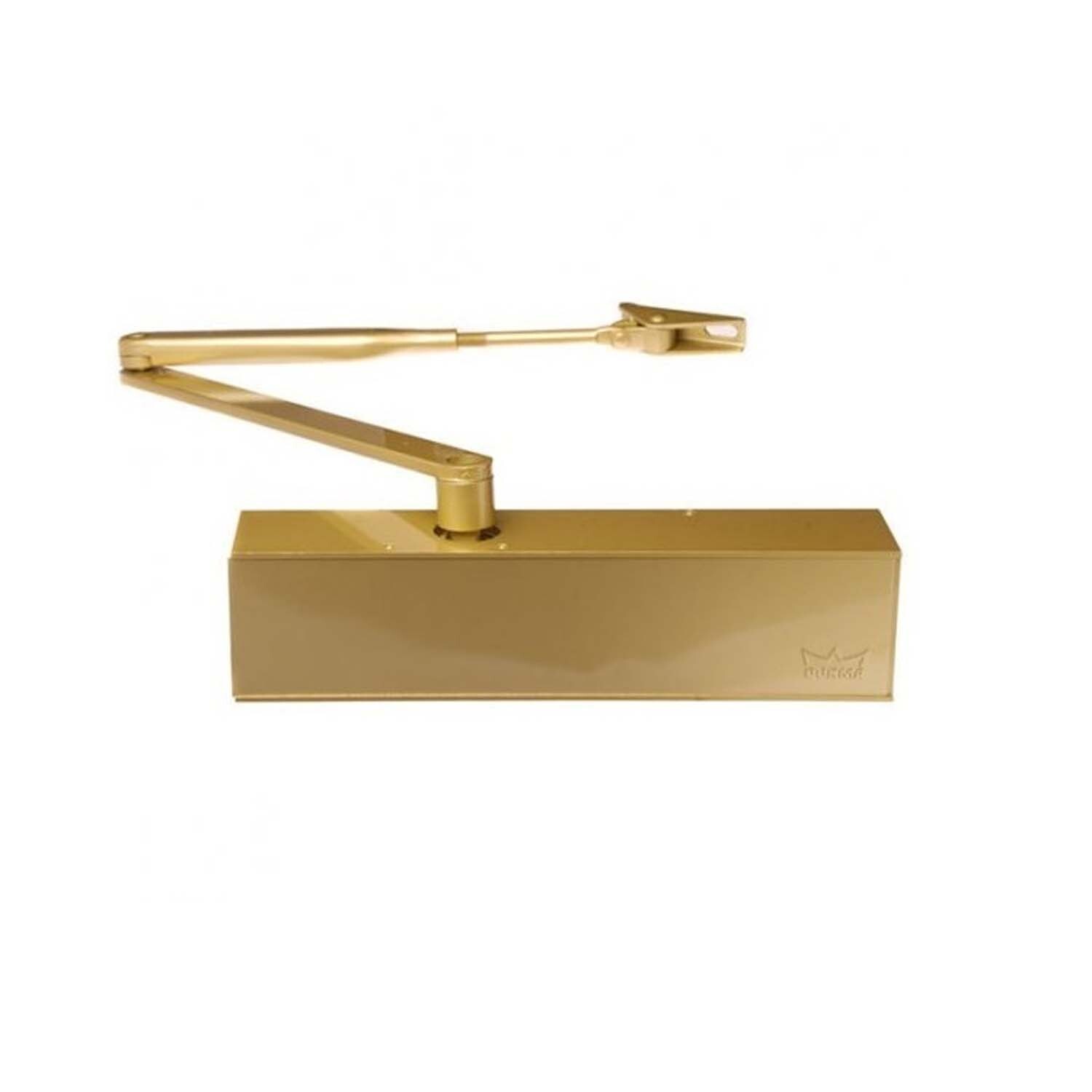

Dormakaba TS83 EN3-6 Door Closer
38020802

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

• Non-handed closer suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment
• Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm
• Backcheck is self-regulating or adjustable by valve and delayed action is also adjustable

Features:

• Suitable for fire doors
• Suitable for standard doors installation up to 1400 mm
• Regular door closer
• Ideal for commercial applications
• Overhead surface mounted door closer
• Adjustable latching action by valve
• Includes parallel arm bracket
• Parallel arm mounting doors up to 950 mm
• Flat-form arm assembly

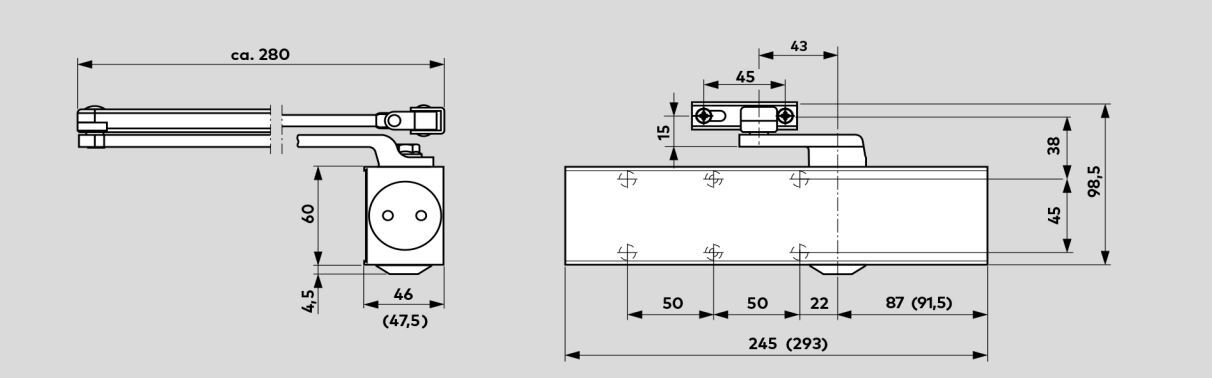

Specifications:

• Length: 245mm
• Width: 46mm
• Height: 60mm
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: Yes
• Has Delay Action: Yes
• Has Holdopen: No
• Has Slide Arm: No
• Parallel Arm Bracket Included: Yes
• Spring Strength: EN3-6
• Fire Rated: Yes
• Finish: Gold

Fire Protection: CERTIFIRE approved for fire doors ITT;MM/IMM 240; Ref. CF 118
