Dormakaba TS93B EN1-5 CAM ACTION DOOR CLOSER PULL SIDE FIRE RATED SILVER 43090501
43090501

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

When considering doors are used every day by the elderly, children or disabled the TS 93 constitutes an ideal solution when it comes to fulfilling the requirements of Australian Standard AS1428 and the access to premises standards.

Features:

• Suitable for fire and smoke check doors where the cushioned limit stay is also used
• Suitable for single and double doors installation up to 1250mm
• Standard model for pull-side door leaf fixing/push-side transom fixing
• Cam action mechanism
• Adjustable back-check, closing & latching speeds
• EASY OPEN Cam action technology enables doors to be manually operated with less effort than that required for conventional closers.

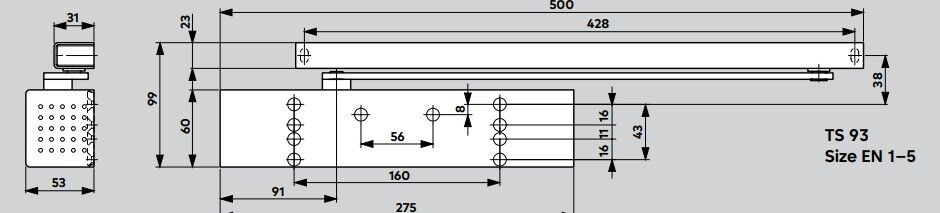

Specifications:

• Length: 275mm
• Width: 53mm
• Height: 60mm
• Spring Strength: EN 1-5
• Back Check: Yes
• Cam Action: Yes
• Delayed Action: Yes
• Fire Tested: Yes
• Include PA Bracket: No
• Includes Fixing Screws: Yes
• Material: Aluminium
• Max Door Width: up to 1600mm
• Has Hold Open: Optional
• Has Slide Arm: Yes
• Adjustable Latching Speed: Yes
• Finish: Silver

Includes:

• 1 x Dormakaba TS93B EN1-5 Door Closer Pull Side Silver (43090004)
• 1 x Dormakaba 93GN Slide Arm and Channel Silver (64010001)

Note: Angle bracket not supplied
