Dormakaba Door Closer TS93B RF EN1-5 Pull Side Including Hold Open Device
TS93B15GNRF

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.

Includes:

• 1 x Dormakaba Door Closer TS93B EN1-5 Pull Side Silver  (43090501)
• 1 x Dormakaba Hold Open Device (18570000)

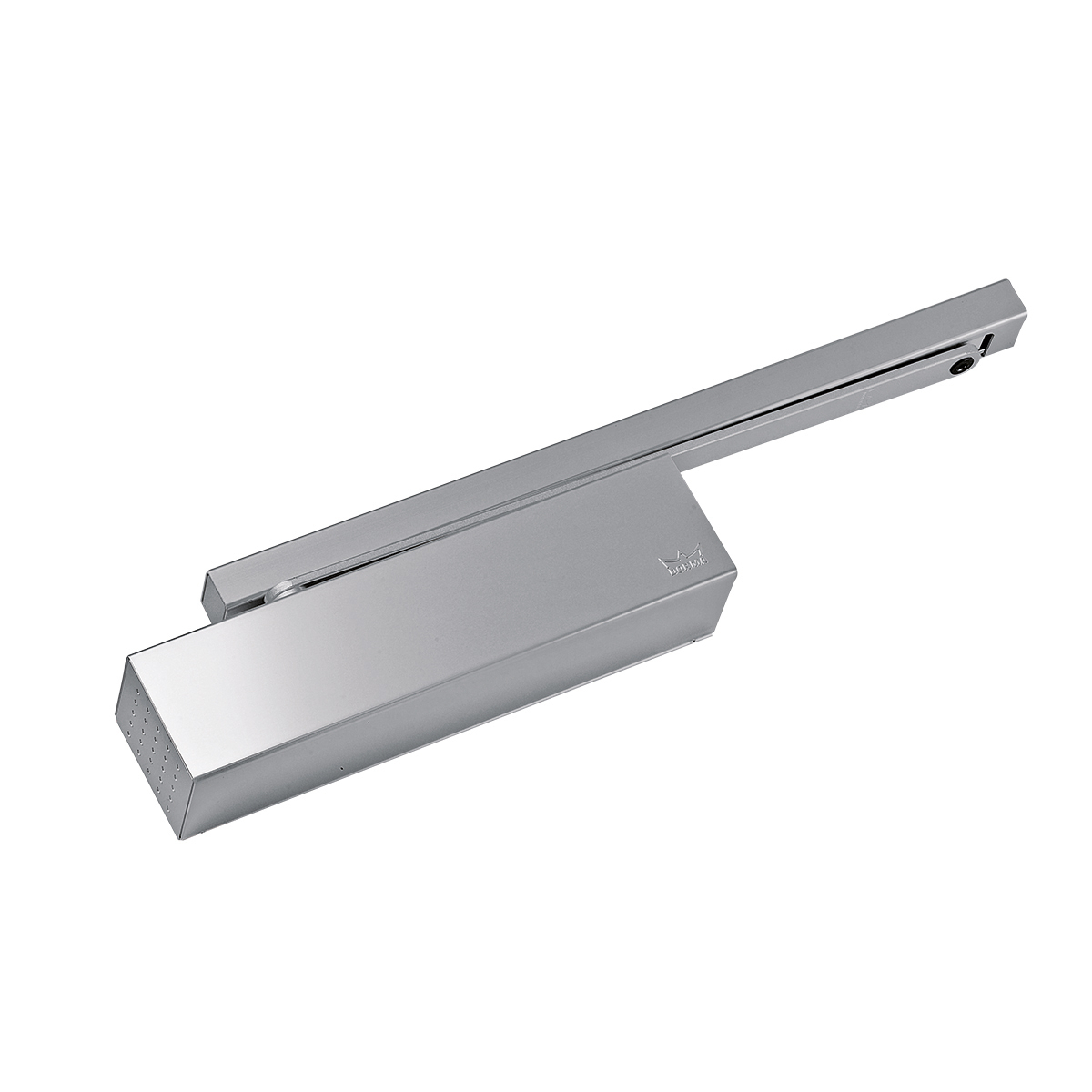

Dormakaba TS93B  Door Closer
43090501

Features:

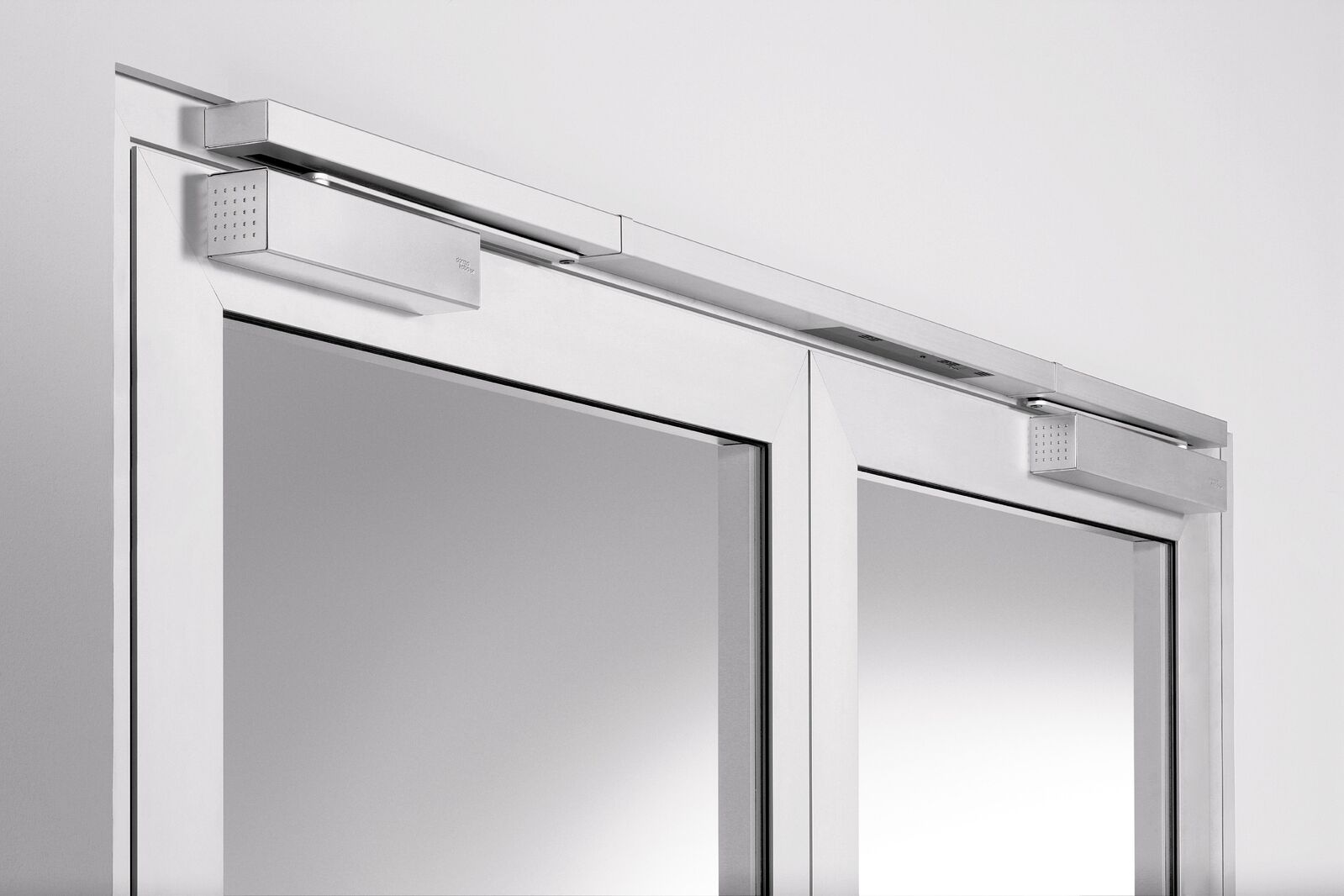

• Suitable for single and double doors installation up to 1250mm
• Standard model for pull-side door leaf fixing/push-side transom fixing
• Cam action mechanism
• Adjustable back-check, closing & latching speeds

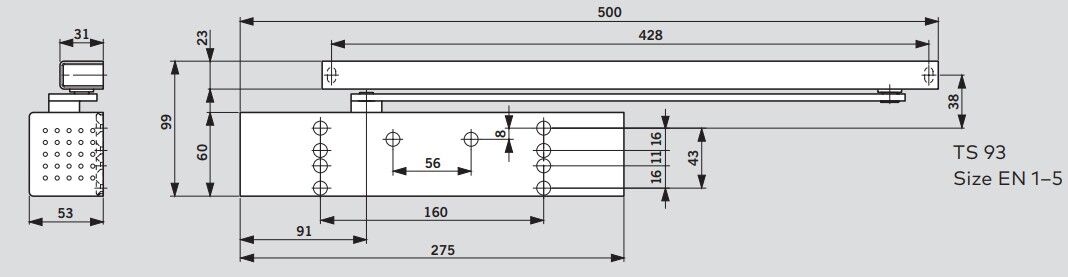

Specifications:

• Length: 275mm
• Width: 53mm
• Height: 60mm
• Spring Strength: EN 1-5
• Back Check: Yes
• Cam Action: Yes
• Delayed Action: Yes
• Include PA Bracket: No
• Includes Fixing Screws: Yes
• Material: Aluminium
• Max Door Width: up to 1600mm
• Has Hold Open: Optional
• Has Slide Arm: Yes
• Adjustable Latching Speed: Yes
• Finish: Silver

Dormakaba Door Closer Hold Open Device
TS93 18570000

Features:

• The Dormakaba RF is a non-handed mechanical hold-open unit. The hold-open unit can be switched on and off by the user as required, and the pull-off force can be adjusted to suit each individual door situation.
• The Dormakaba RF hold-open unit can also be supplied for retrofitting to the slide channel at a later date. Hold open is not suitable for fire or smoke doors.

Suits: TS91 TS92 TS93
