Features:

• Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
• Closing force adjustable with a screw and closing speed adjustable with a valve
• The latching speed, backcheck and delayed action is also adjustable at the valve
• It has slide channel arm assembly

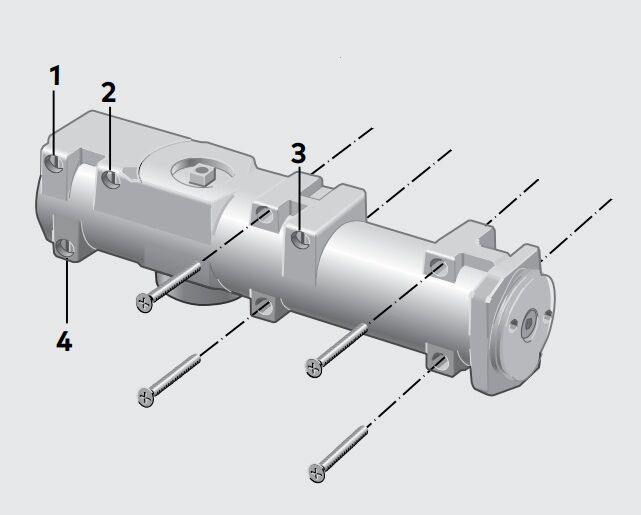

• Special model for push-side door leaf fixing/pull-side transom fixing
• Suitable for fire and smoke check doors where the cushioned limit stay is also used
• Suitable for single and double doors installation up to 1600mm (W)

Specifications:

• Length: 285mm
• Width: 62mm
• Height: 71mm
• Weight: 5.2kg
• Finish: Silver
