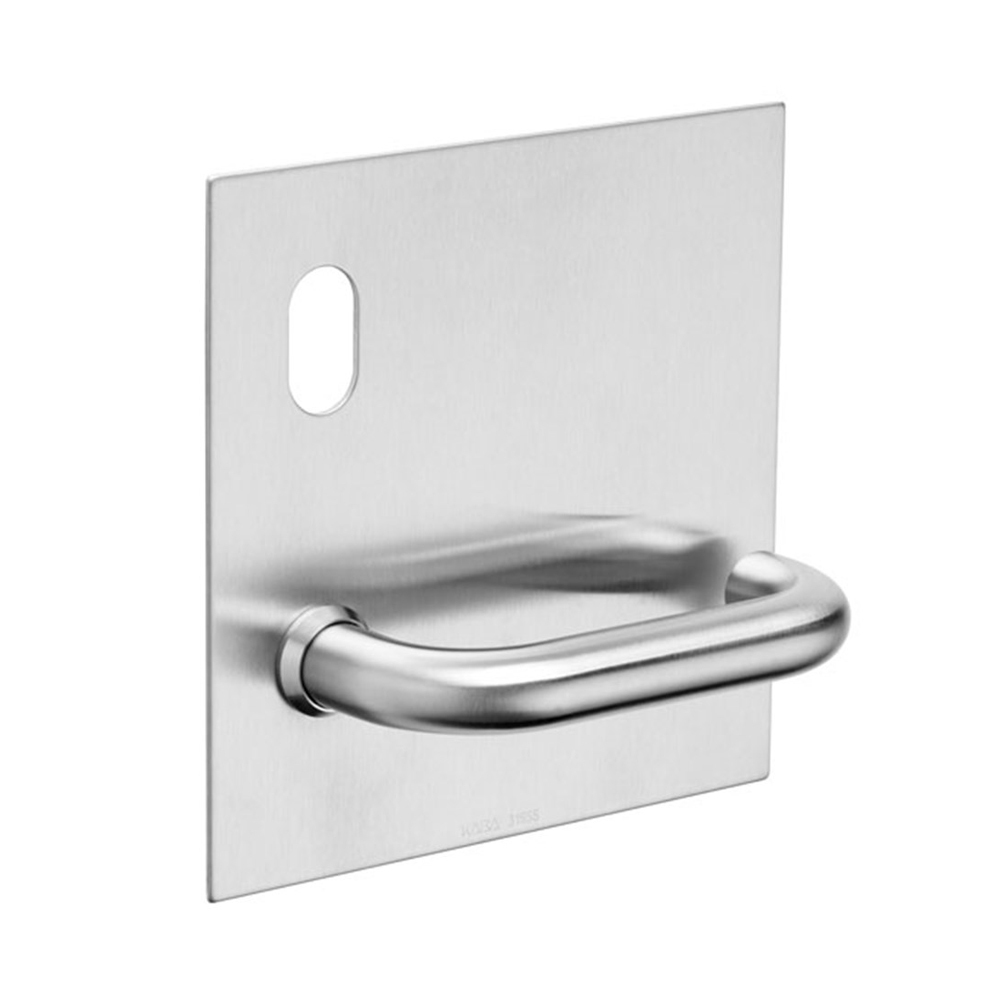

Kaba 1500 Plate with Cylinder Hole and 20 Series Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Made for commercial and institutional applications
• External plate with cylinder hole and 20 series lever
• Left hand
• Concealed fixing
• Designed for use with Kaba MS2 series locks or alike products
• Plates are designed to fit back to back
• Disabled access AS1428.1 compliant lever
• External plates supplied with fixing screws

Specifications:

• Door Thickness: 35mm - 50mm
• Internal / External: External
• Plate Type: Square End
• Fire Rated: Yes
• Material: Stainless Steel
• Grade of Stainless Steel: 316
• Available Handing:
  • Left Hand
  • Right Hand

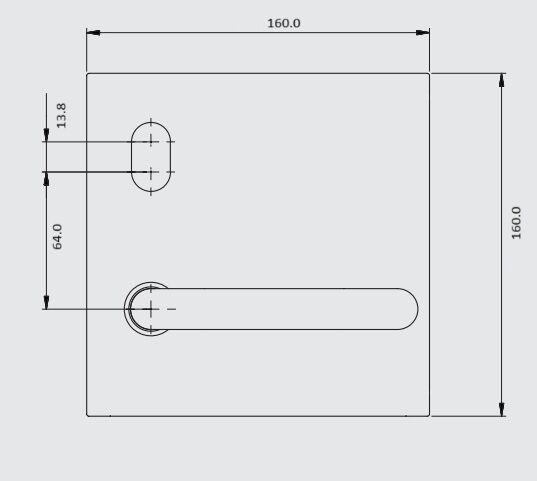

• Overall Length: 160mm
• Width: 160mm

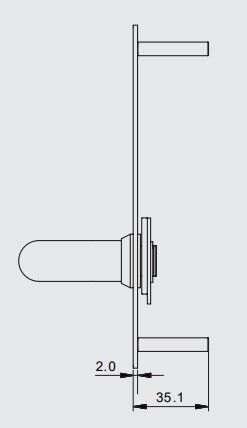

• Depth: 2mm
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: Yes
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Finish: Satin Stainless Steel

Note: Handing is opposite from external to internal - If external plate is LEFT hand then internal plate is RIGHT hand.
