Dormakaba Rectangular Square End Plate Furniture with Privacy Indicator
6649/30

Square End Plate Furniture designed for use with dormakaba DKMS2602SSS series locks. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Furniture Function - external plates with lever designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Rectangular exterior square end plate
• Left hand slotted indicating coin turn with Noosa 30 series lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Plates are designed to fit back to back
• With Privacy indicator and emergency button
• External plates supplied with fixing screws

Specifications:

• Door Thickness: 32mm - 50mm

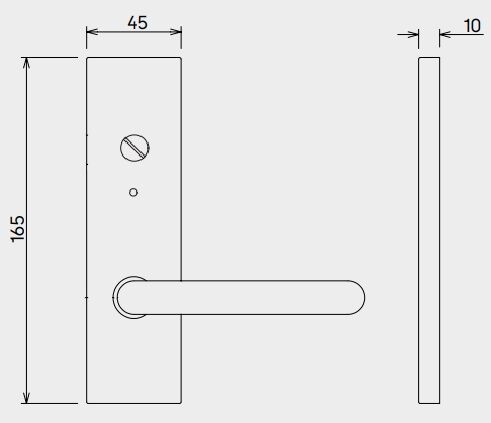

• Plate Size: 165mm x 45mm x 10 mm
• Screw Fixing Centres: 148 mm
• Fixing: Concealed Fix
• Available Handing:
  • Left Hand
  • Right Hand
• Finish: Satin Stainless Steel

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled Access Compliant Lever: BCA AS1428.1 -2009 compliant leverset.

Note: When ordering internal plates with handed lever and turnsnib designs, handing is as per external plate.
