Dormakaba 950 Series Short Backset Mortice Lock
950-37SCP-LC

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

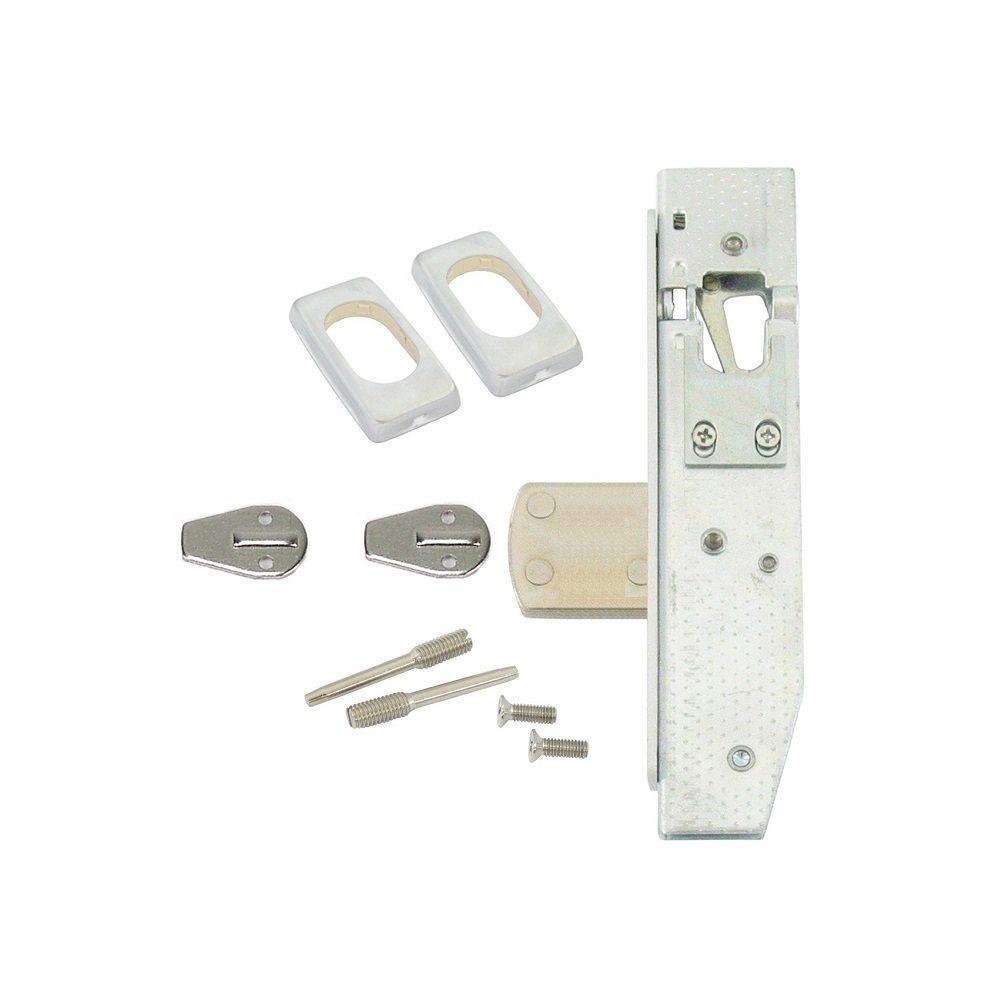

Includes:

• 1 x 950 lock body 37mm bolt
• 2 x Escutcheons
• 2 x Cams

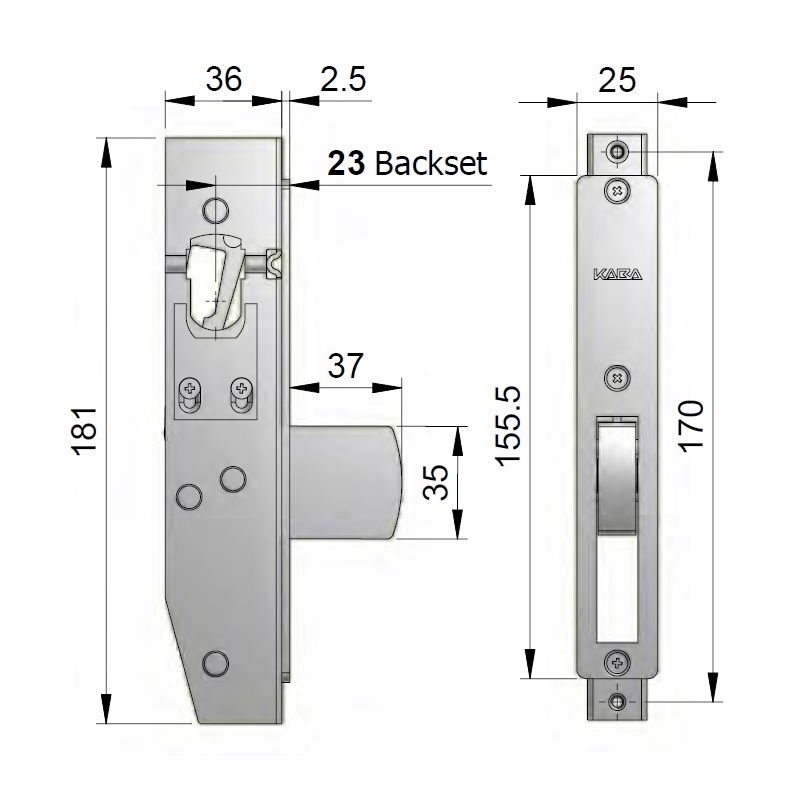

Specifications:

• Min. Door Thickness: 32mm - 58mm Aluminum Doors
• Height: 181mm
• Width: 25mm
• Depth: 37mm
• Backset: 23mm
• Includes Fixing Screws: Yes
• Includes Strike Plate: Yes
• Spindle Size: 7.6mm
• Bolt Throw: 36mm
• Lockable: Yes
• Finish: Satin Chrome
