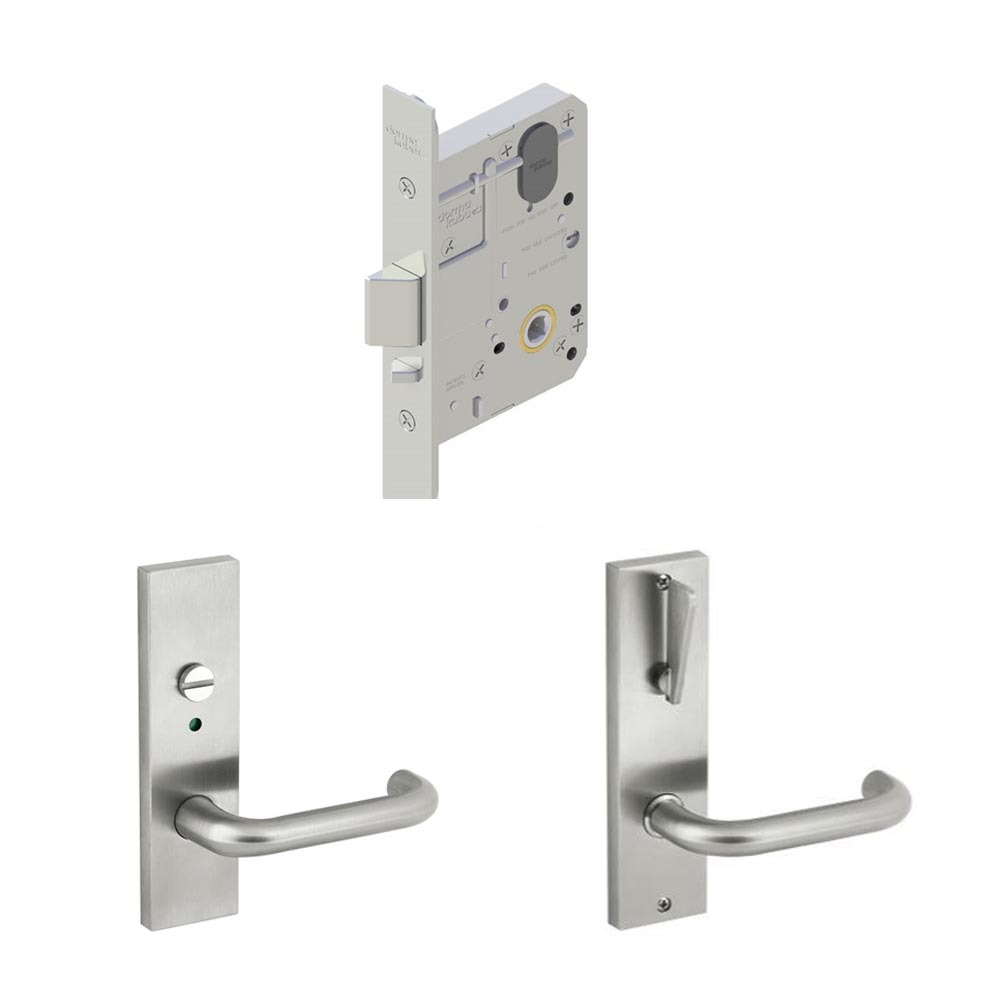

Dormakaba Ambulant Disabled Toilet Lock Pack

Includes:

• 1x Dormakaba MS2 Mortice Door Lock Commercial Grade 60mm Backset Satin Stainless Steel MS2602
• 1x Dormakaba Door Lever Rectangular Square End Plate Furniture Right Hand Satin Stainless Steel 6649/30GR
• 1x Dormakaba Door Lever on Square End Plate Disabled Turn Right Hand Satin Stainless Steel 6607/30GR

Dormakaba Heavy Duty Mortice Lock
MS2602SSS

Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering).

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

• Heavy duty construction with Stainless Steel case, face plate, strike and latchbolt
• Deadlatching and kick-off is standard on all functions
• SCEC Approved- certified to comply with the SL3 rating
• Conforms with Australian Lock Standards SL8 for Security and D8 for Durability
• Fire rated as per Australian Standard AS1905 Part 1 -1997, Fire Resistant Doorsets - 2 hour
• Most functions are non-handed or field changeable/reversible
• Supplied complete with all fixings suit door thickness from 32mm-50mm
• Fabricator kit available to suit aluminium doors
• Universal “T” shape standard lip strike plate (32mm) is supplied as standard, extended lip strikes available
• Accepts standard Australian oval cylinders
• Rebate kit available to suit standard 13mm rebate-part #MA840
• Compatible with most electric strikes
• Standard 60mm backset
• Standard door mortice of 120mm x 87mm x 20mm as for other Australian mortice locks
• Accepts tie bolt rose furniture 38-41mm fixing centres
• Accepts 7.6mm or 8mm furniture spindle

Specications:

• Anti-lockout Function: Yes
• Compatible With Most Restricted Keying Systems: Yes
• Finish: Black
• Holdback Function Built-in: No
• Lock Grade: Commercial
• SCEC Endorsed: SL3 With Approved Keying System Installed
• Backset: 60 mm
• Fire Rated: Yes

Dormakaba Lever on Square End Plate Disabled Turn
DF66073001GR

Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Designed for use with dormakaba DKMS2602SSS series locks
• Rectangular interior square end plate
• Left hand disabled turnsnib with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Door Thickness: 32-50mm
• Height: 165mm
• Width: 45mm
• Projection: 10mm
• Handing: Right Hand
• Screw Fix Spacing: 148mm
• Plate Has A Disabled Turnsnib: Yes
• Plate Has A Lever: Yes
• Plate Has A Turnsnib: Yes
• Finish: Satin Stainless Steel

Compliance:

• Fire Rating Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled Compliance BCA AS1428.1 -2009 compliant leverset.

Dormakaba Door Lever Rectangular Square End Plate Furniture
6649/30GR

Features

• A true rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and
  latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban lever designs
• Standard screws in 5/32 thread to suit door thickness of 32mm-50mm thick doors

Specifications:

• Door Thickness: 32mm to 50mm
• Material: 316 Solid Stainless Steel
• Fire Rated: Yes
• Handing: Right Hand
• Finish: Satin Stainless Steel
