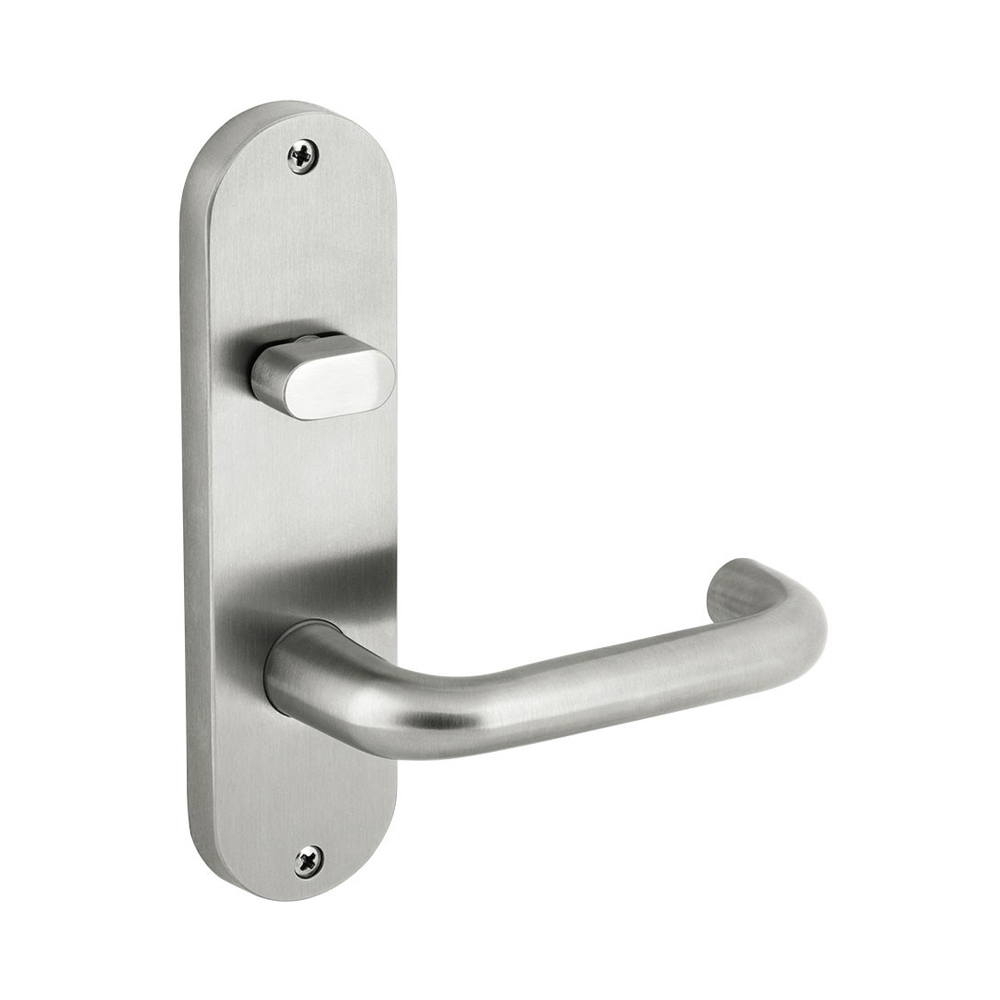

Dormakaba Furniture Round End Plate Door Lever with Turn Snib
6703/30G

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

Features:

• Rectangular interior round end plate
• Standard turnsnib with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Compliance:

• Fire Rating: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled Compliance: Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

Specifications:

• Door Thickness: 32mm - 50mm
• Internal / External: Internal
• Plate Type: Round End
• Fire Rated: Yes
• Material: Stainless Steel

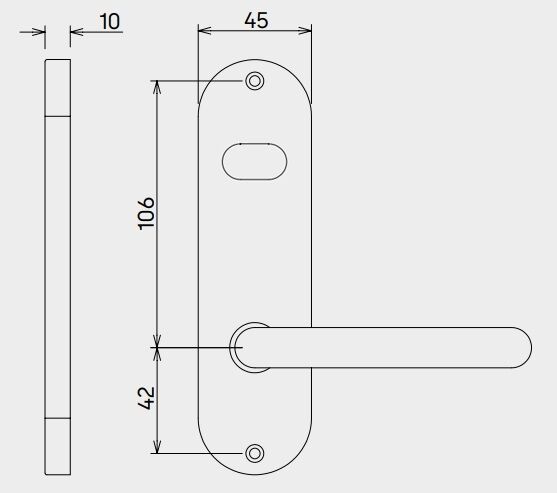

• Length: 165mm
• Width: 45mm
• Depth: 10mm
• Screw Fixing Centres: 148mm
• Plate Has A Lever: Yes
• Plate Has A Turnsnib: Yes
• Finish: Satin Stainless Steel
