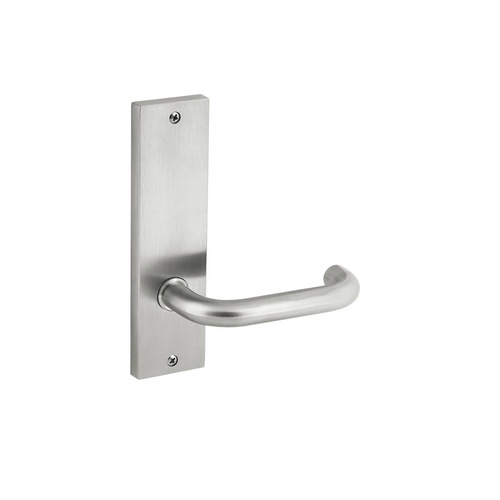

Dormakaba Door Lever on Square End Plate Furniture
6606/30G

Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban lever designs
• The 6600 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
• BCA AS1428.1 -2009 compliant leverset

Specifications:

• Door Thickness: 32mm to 50mm
• Fire Rated: Yes
• Plate Dimension: 165 x 45 x 10 mm
• Material: 316 Stainless Steel
• Finish: Satin Stainless Steel
