Dormakaba EN3 Floor Spring Body Combi Pack For Timber Door
BTS803T

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

Includes:

• 1 x Dormakaba EN-3 Floor Spring Body BTS80EN3 (80120000)
• 1 x Dormakaba Cover Plate 7410 (46020044)
• 1 x Dormakaba Top Centres 8062 (8062)
• 1 x Dormakaba Door Strap 7421 (46010001)
• 1 x Dormakaba Cover Plate 8064 (46700000)
• 1 x Dormakaba Sealing Compound 2300 (45090086)

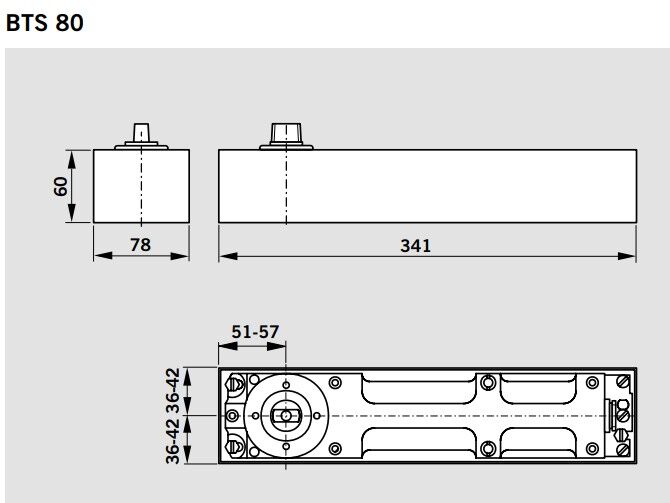

Dormakaba BTS80 EN3 Floor Spring Body
80120000

Features:

• The Dormakaba BTS80 EN3 floor spring body includes cement box and standard spindle
• It is a universal non-handed floor spring for single and double action doors
• With adjustable closing speed and closing action from approx. 175°, with hydraulically controlled closing cycle and mechnical backcheck
• Integral pressure compensation feature allows for temperature-independent hold-open between 75° and 175° (removable)
• Hold-open start point and delayed action is easily adjustable by valve
• Suitable for installation on doors up to 950mm (W) with a max. 300kg leaf weight

Specifications:

• Length: 341mm
• Width: 78mm
• Height: 60mm
• Weight: 7.1kg

Dormakaba 8064 Cover Plate
46020044

Features:

• Cover plate for adjustable top centers
• Suits BTS series floor springs
• Supplied with screws

Specifications:

• Length: 165mm
• Width: 25mm
• Height: 1mm

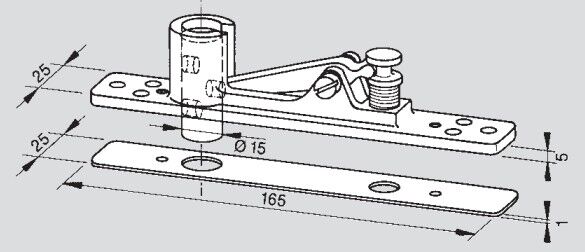

Dormakaba 8062 Top Center
46300003

Features:

• Suitable for double action steel, aluminum and timber doors
• Made of die-cast aluminum
• It comprises of a frame portion with adjustable pin for deep profiles up to a max. 20mm, and a door portion with needle bearing
• Suits BTS 75V

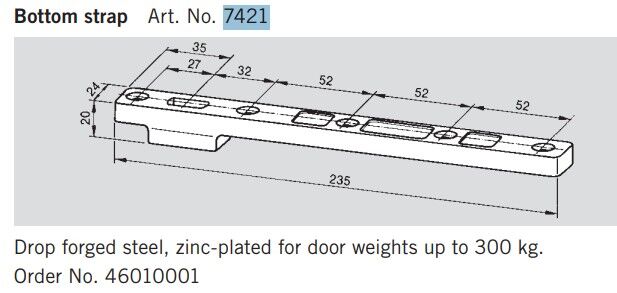

Dormakaba 7421 Bottom Strap for Double Action Doors
46010001

Features:

• Suitable for BTS floor springs for double action doors
• Drop forged steel, zinc-plated for door weights up to 300 kg.

Dormakaba Sealing Compound 2300
45090086

Features:

• Recommended for floor springs exposed to wet conditions
• For filling the cavities between the floor spring body and the cement box to prevent moisture penetration (mandatory according to e.g. VOB regulations for wet rooms).

Notes-icon:

• The contents of the two tins (the basic fluid and the accelerator) are sufficient for one floor spring.

Warning-icon:

• Use compound immediately after mixing. Hardening process takes place after 20 minutes. After 24 hours the sealing compound is fully hardened.

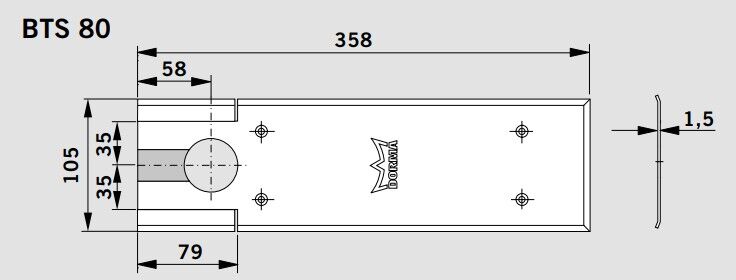

Dormakaba 7410 Cover Plate Satin Stainless Steel Suits BTS80
46700000

Features:

• Adaptable to right or left-hand single action applications by simply snapping off the appropriate pre-blanked corner sections. For double action doors, the corner sections remain in place.
• Supplied with fixing screws and plastic insert
• Suits the BTS 80 floor spring

Specifications:

• Length: 358mm
• Width: 105mm
• Thickness: 1.5mm
• Finish: Satin Stainless Steel
