Dormakaba Entrance Kit Lockpack
SB2212KIT04SSKA

Entrance commonly used on front / back door or any door that you want to lock with a key.

Entrance Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

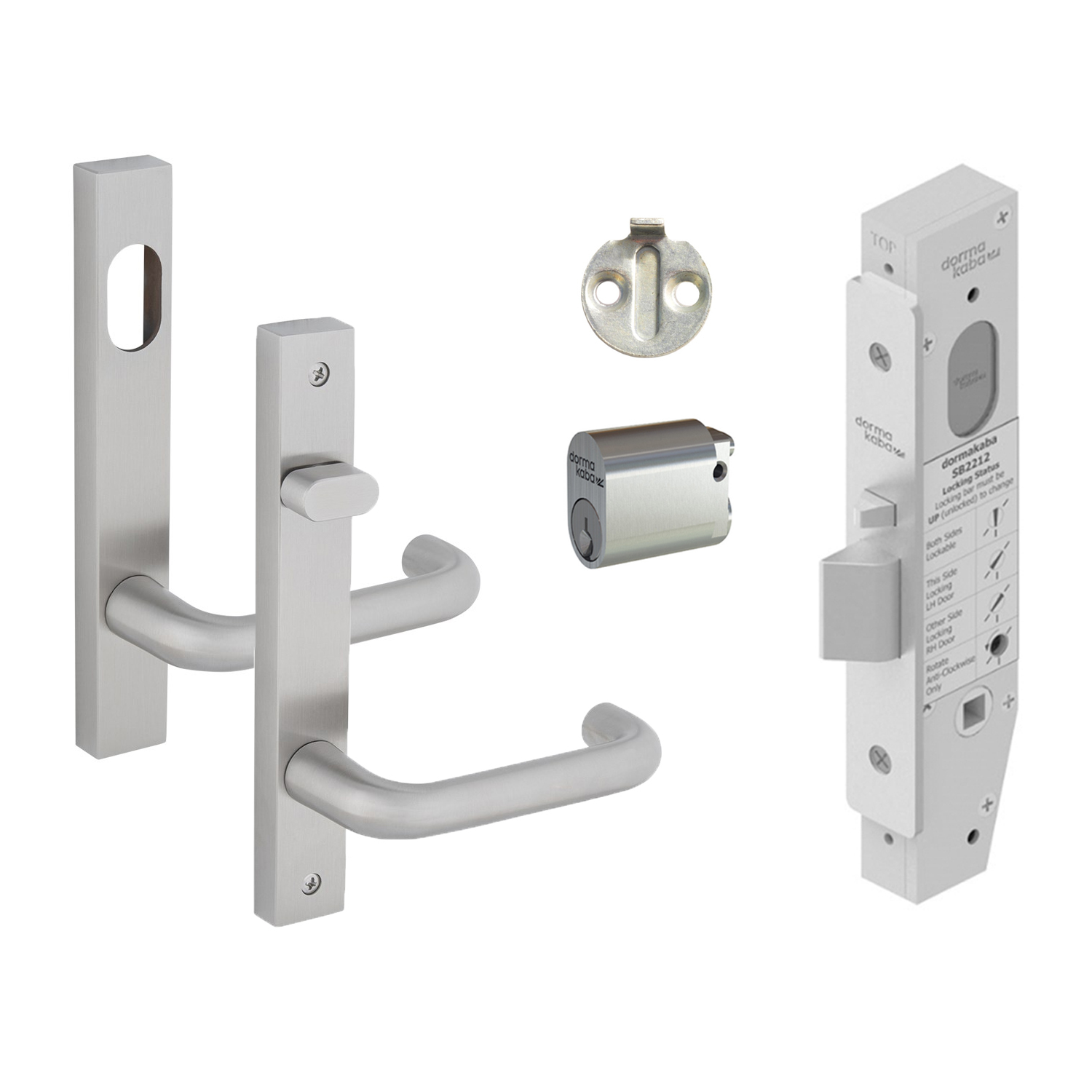

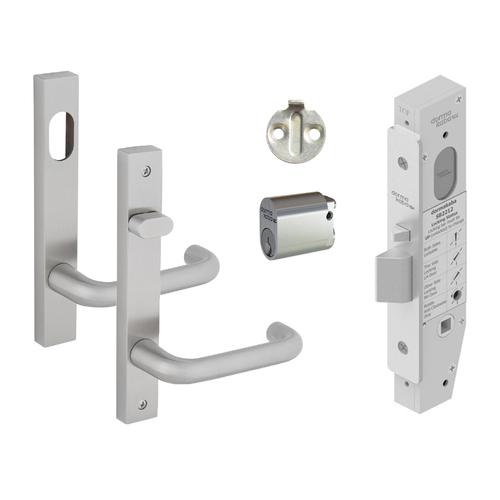

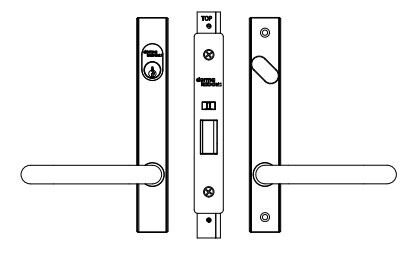

Includes:

• 1 x Dormakaba Narrow Style Mortice Lock 23mm Backset Stainless Steel (SB2212SSS)
• 1 x Dormakaba Narrow Style Plate w/ Cylinder Hole Lever Stainless Steel (6400/30GSS)
• 1 x Dormakaba Narrow Style Plate w/ Turn & Lever  Stainless Steel (6403/30SS)
• 1 x Dormakaba130 Series C4 Oval Cylinder 6 Pin - Keyed To Differ (130C4KASS)
• 1 x Dormakaba Cam KW Turn Adaptor Activation Suit 2600 & 2900 Series Locks (CAMKW)

Recommended Applications:

• Retail complexes
• Offices
• Shop Front Entrances
• Municipal Buildings
• Residential
• Schools
• Hospital

Dormakaba Narrow Style Mortice Lock
SB2212SSKA

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied with cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Backset: 23mm
• Finish: Stainless Steel

Dormakaba 6400 Series Narrow Style Squared Edge Plate Furniture w/ Cylinder Hole & 30 Lever
6400/30GSS

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Designed to fit back to back with either concealed or visible fixing to outside plate
• Tiebolt M5 fixing screws have a cross-recessed head
• Plates and knobs are non-handed with levers reversible on site in most cases

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Stainless Steel

Dormakaba Narrow Style Square End Plate Visible Fix with Turnsnib and Lever
Steel 6403/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks
• BCA AS1428.1 - 2009 compliant leversets
• Narrow interior square end plate
• Standard turnsnib with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 160mm
• AS1428.1 Compliant Lever: Yes
• Internal / External: Internal
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Plate Has A Turnsnib: Yes
• Finish: Satin Stainless Steel

Dorma 130 Series C4 Oval Cylinder
130C4KASS

Features:

• Anti-bump and Anti-drill protection
• Excellent tolerances
• SSS springs as standard
• Mushroom top pin
• Suits restricted profiles
• Solid brass construction
• Pre-drilled for construction keying

Specifications:

• Keying: Keyed Alike
• Pin: 6 pin C4 keyway
• Finish: Stainless Steel

Dormakaba Cam KW Turn Adaptor Activation
CAMKW

Specifications:

• Dormakaba "KW" turn adaptor activation cam.
• Suits adaptor SA-KZ (DKADAPTORKZPK5) when used with MS2600, MS2900, SB2212 and SB2312 series locks.
