Dormakaba Entrance Lock Pack MS2 Mortice Lock Round Ended Furniture & Cylinder

Note: Internal Lever Has Disabled Turn

Entrance commonly used on front / back door or any door that you want to lock with a key.

Entrance Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

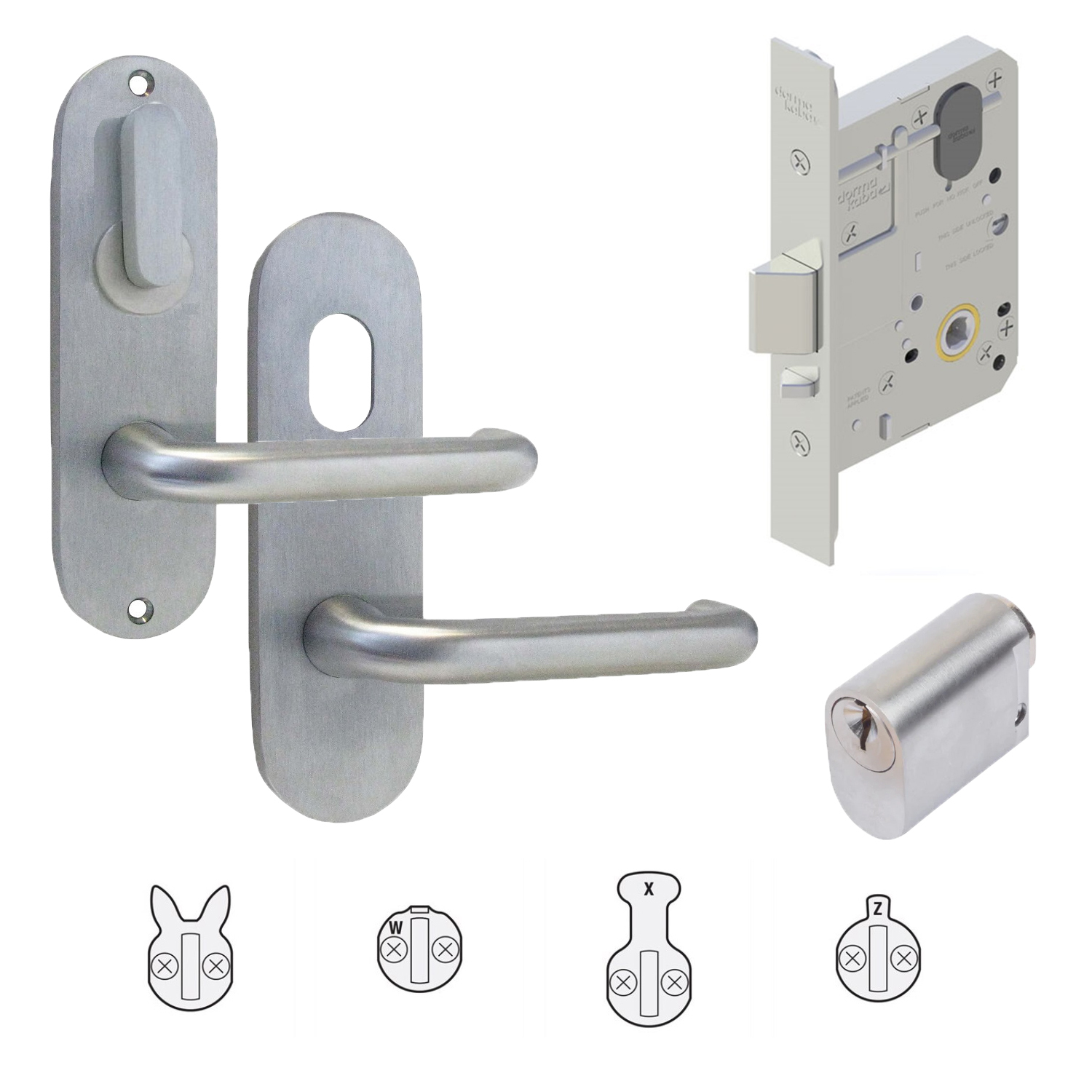

Includes:

• 1 x Dormakaba MS2 Mortice Door Lock Commercial Grade 60mm Backset Satin Stainless Steel (MS2602)
• 1 x 100 Series Plate Furniture w/ Cylinder Hole & 25 Lever (101C-25SCP)
• 1 x 100 Series Plate Furniture w/ Turn Snib & 25 Lever (113VDA-25SCP)
• 1 x 570 Cylinder W Cam (CYLO6LSCKAZ864700)
• 3 x Lockton Cams 3 Pack W X Z & Rabbit Suits Oval Cylinders (410SCCAM)

Dormakaba MS2602SSS Heavy Duty Mortice Lock
MS2602SSS

Features:

• MS2602 primary mortice lock
• Operated by key or handle outside or by turnsnib, key or handle inside
• 14 mm stainless steel reversible latch bolt
• Easily adapted to most functions
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Compatible with most electric strikes
• SCEC approved (SL3)
• Conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008
• Conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008

Specifications:

• Material: 304 Grade Stainless Steel
• Backset: 60mm
• Door Thickness: 32mm - 50mm
• Fire Rated: Yes
• Anti-Lockout: Yes
• Finish: Satin Stainless Steel

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Cylinder Hole & 25 Lever
N601C25SCP

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Designed to fit back to back with either concealed or visible fixing to outside plate
• Tiebolt M5 fixing screws have a cross-recessed head
• Plates and knobs are non-handed with levers reversible on site in most cases

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate

Kaba 100 Series Rounded Edge Plate Furniture w/ Ambulant Turn & 25 Lever
113VDA-25SCP

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate
• Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases
• Door Thickness: Suits door thickness from 32mm minimum to 50mm maximum

Specifications:

• Height: 165mm
• Width: 44mm
• Thickness: 12mm
• Finish: Chrome Plate

Scope Oval Cylinder
CYLO6LSC.KAZ

Specifications:

• Cam: Z
• Number of Pins: 6
• Cylinder Key Number: 864700
• Keying: Keyed Alike
• Finish: Satin Chrome

Lockton Cams 3 Pack W X Z  & Rabbit Suits Oval Cylinders
410-SC-CAM

Includes:

• 1 x Z Cam
• 1 x X Cam
• 1 x W Cam
• 1 x "Rabbit Ear" Cam
