Dormakaba External Round End Plain Plate
6715

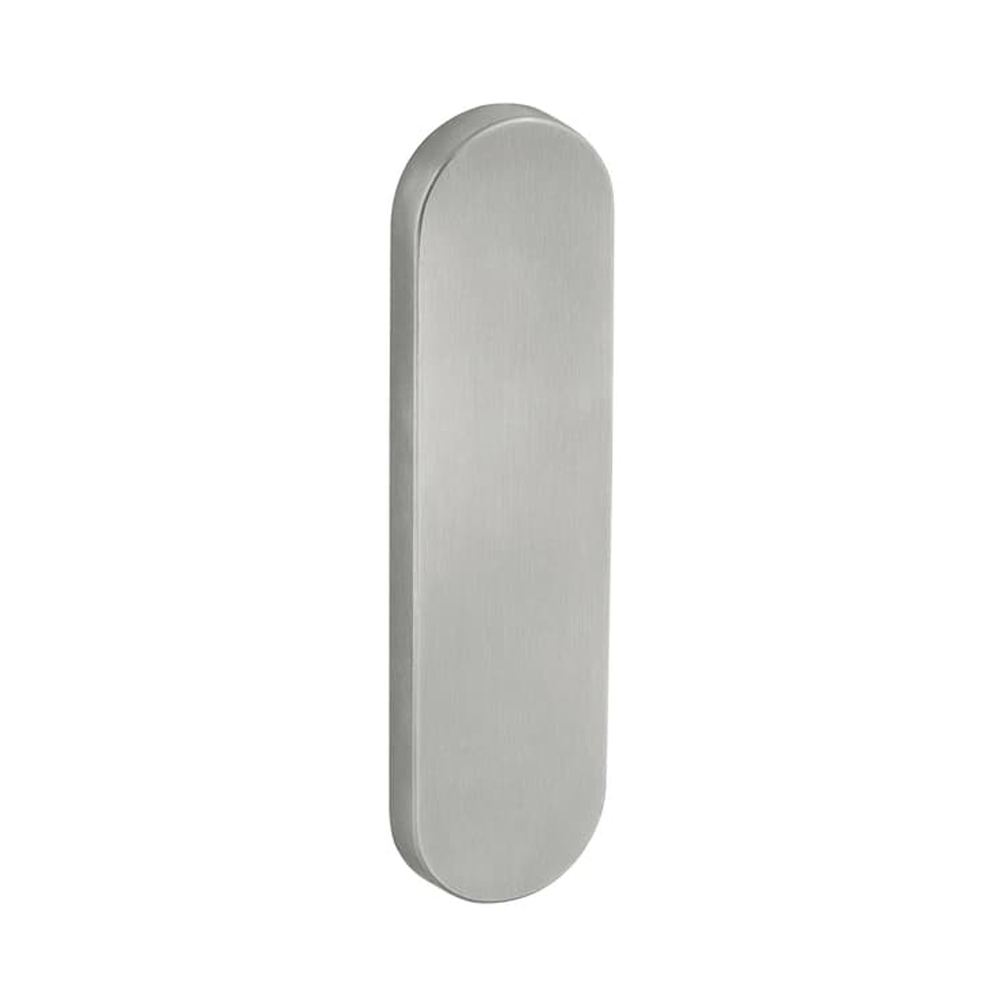

Round End Plate a classic circular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Round End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • External concealed fix plain plates
  • Best suited for commercial applications
  • Levers are mounted on a 165mm high x 44mm wide 316 grade stainless steel base plate projecting 10mm
  • Designed for use with dormakaba mortice locks and latches
  • Also compatible with similar locks and tubular latches

Specifications:

  • Door Thickness: 32mm - 50mm
  • Plate Type: Round End
  • Fire Rated: Yes
  • Material: Stainless Steel

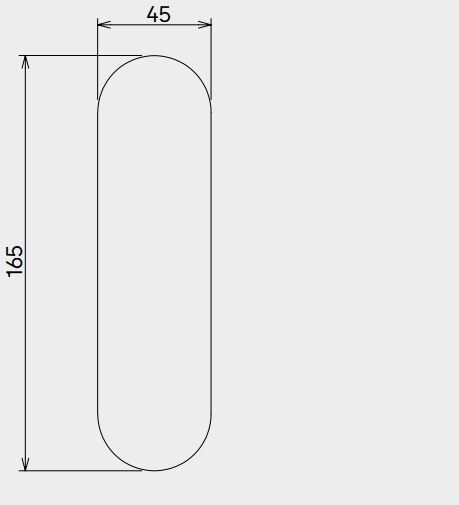

  • Length: 165mm
  • Width: 44mm
  • Depth: 10mm
  • Plate Has A Lever: No
  • Plate Has A Cylinder Hole: No
  • Finish: Satin Stainless Steel



SKU DORMDF67150001
Barcode # 9322844094931
Brand Dormakaba
