Dormakaba Internal Visible Fix Plate with Disabled Turn Snib and 30 Lever
6707/30GR

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

  • Stylish alternative to the rectangular plate displaying clean modern lines with bevelled edges
  • Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
  • Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
  • Extensive range of optional plate functions
  • Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
  • Heavy duty spring mechanism manufactured using the highest grade materials
  • Nylon bush preventing metal to metal wear and providing a smoother friction free movement
  • All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
  • Compatible with all Coastal and Urban series lever designs
  • Standard screws in 5/32 thread to suit

Fire Rating:

  • The 6700 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1

Disabled Compliance:

  • Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

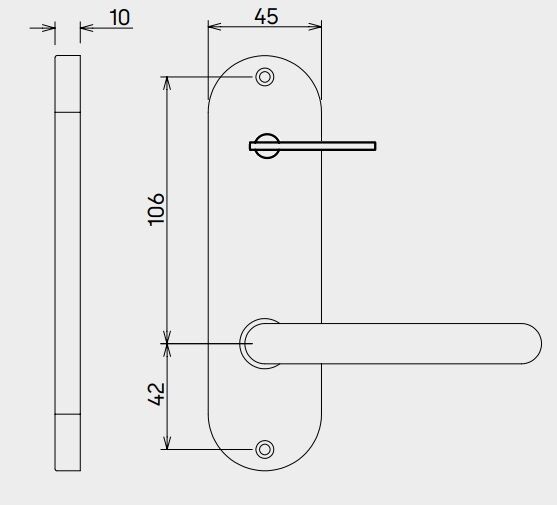

Specifications:

  • Door Thickness: 32mm - 50mm
  • Height: 165mm
  • Width: 45mm
  • Thickness: 10mm thick
  • Fixing Centres: 149.25mm
  • Handing: Right Hand
  • Finish: Satin Stainless Steel
  • Article Number 9400000014511
SKU DORMDF67073001RG
Barcode # 9322844098182
Brand Dormakaba
