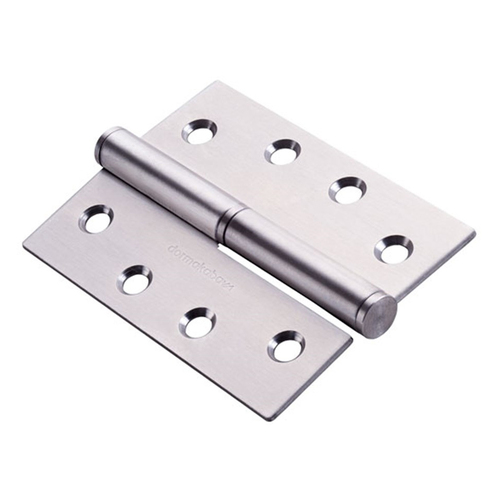

Dormakaba Lift Off Door Hinge - Left Hand
DKH100/75LO LH SSS

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function - a mechanical bearing that allows doors to pivot on one edge when they open and close, allowing for limited rotational movement of the object to which it is attached.

Features:

• Suitable for Timber or Metal doors and Timber or Pressed Metal frame applications
• Allows a door to be removed by someone on the outside in the event of an emergency
• Doors require a gap between the top of the door and the underside of the head of the door frame to allow sufficient movement upwards for door release
• Supplied with (8) x 4.2 x 35mm wood & (4) x M5 x 12mm metal thread screws

Specifications:

• Material: 304 Grade Stainless Steel

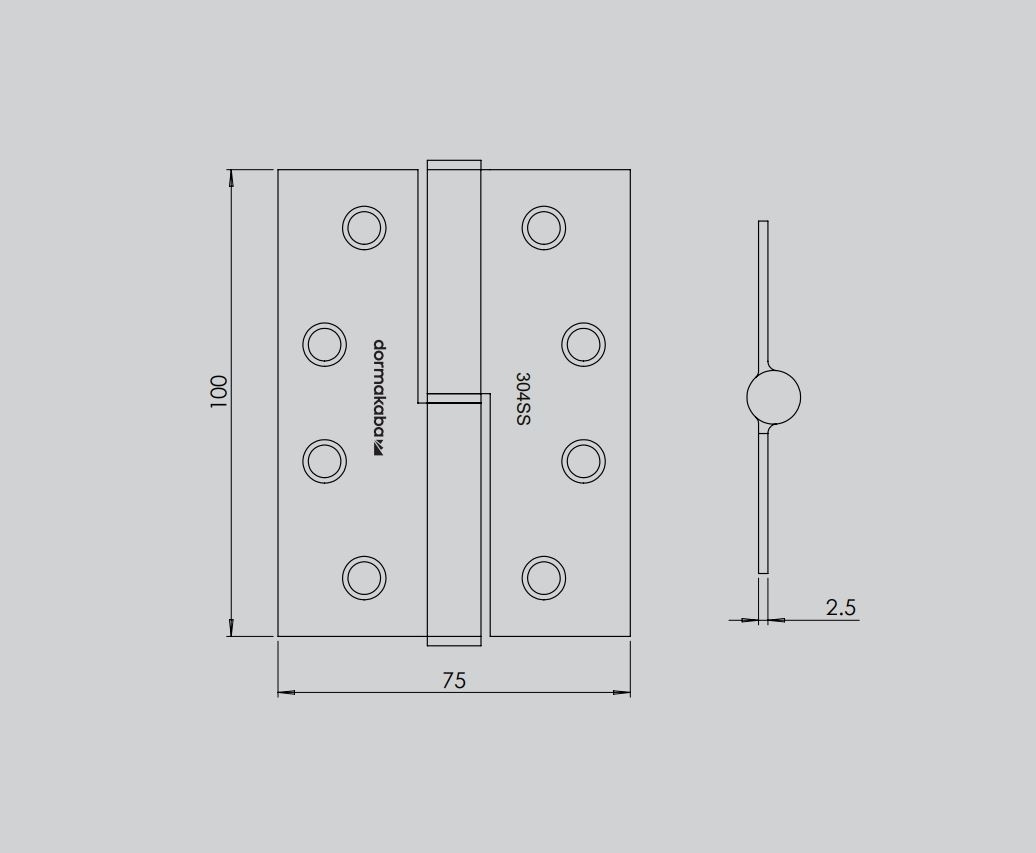

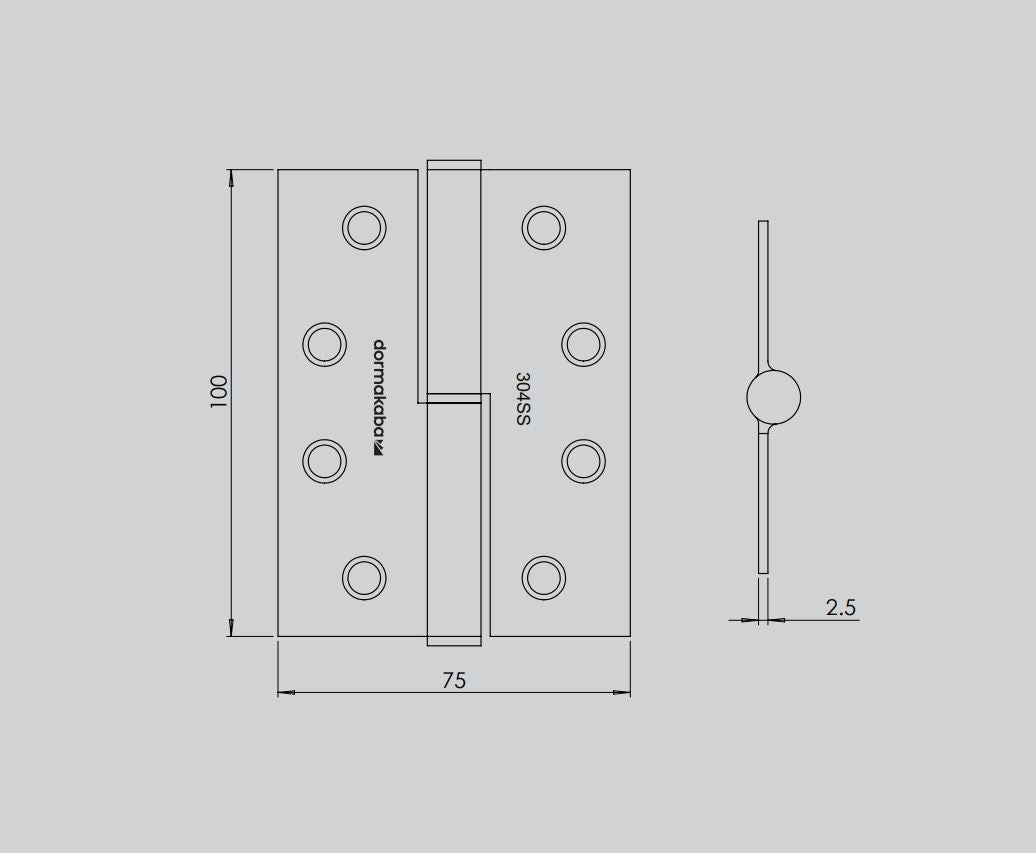

• Size: 100mm x 75mm
• Thickness: 2.5mm
• Pin Size (when you lift off the hinge): 15mm
• Handing: Left Hand
• Finish: Satin Stainless Steel
