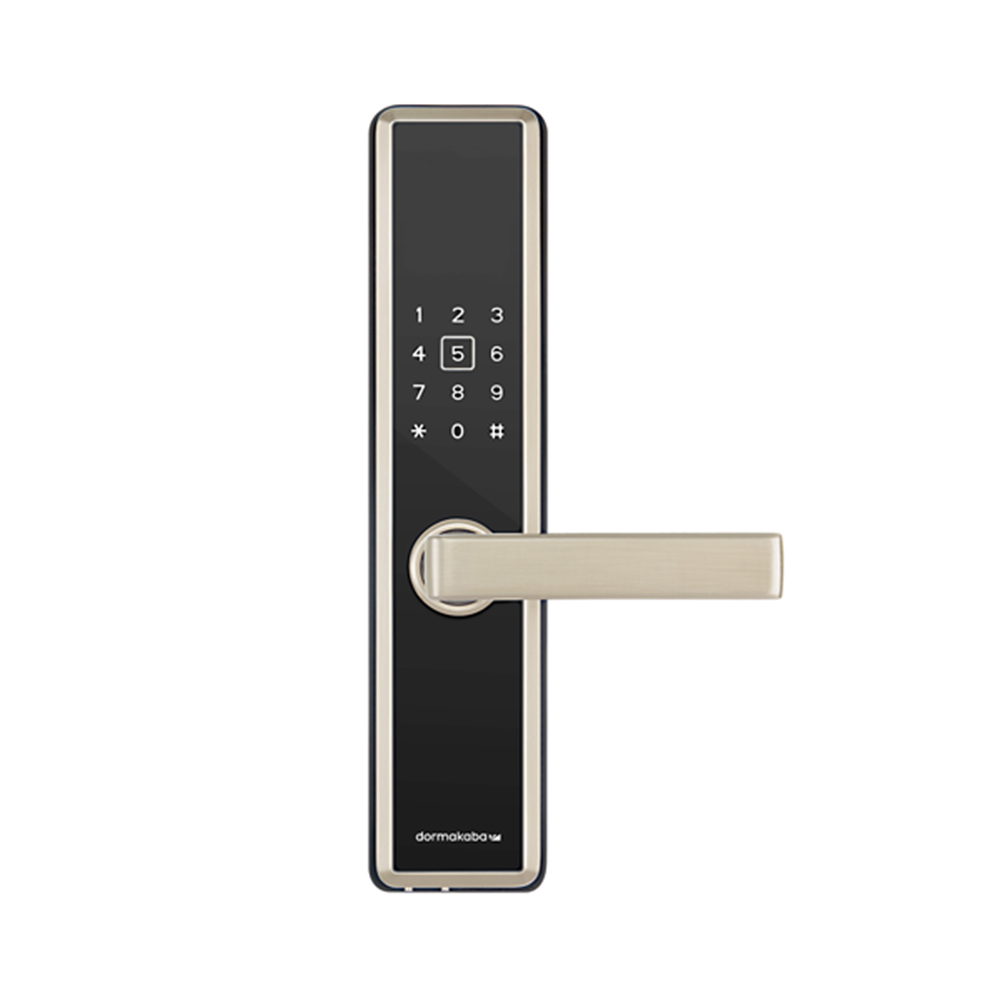

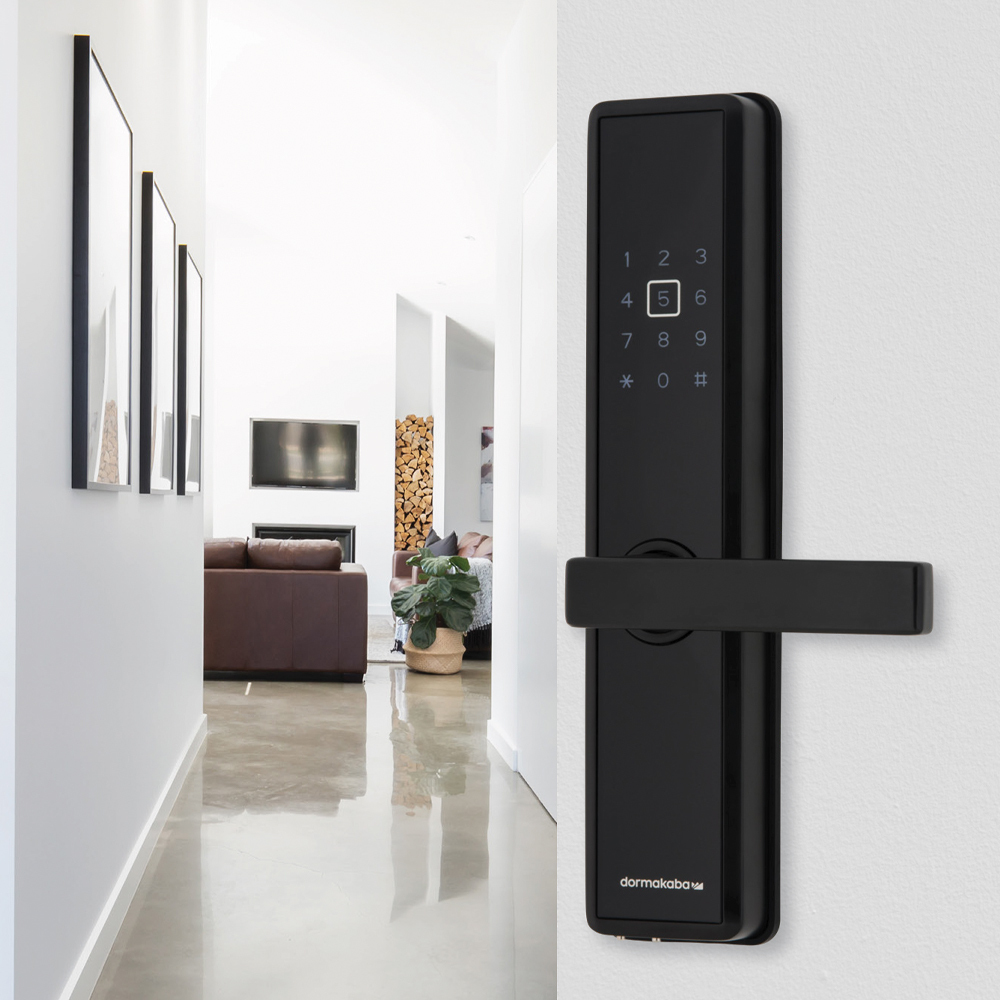

Dormakaba M5 BLE Digital Lock
DKM5BLENIB

Smart DIgital Lock is designed to perform locking and unlocking operations on a door when it receives such instructions from an authorized device using a wireless protocol and a cryptographic key to execute the authorization process.

Smart Digital Lock - allows you to open your door without a physical key. Can be controlled remotely using a smartphone app.

• Allowing you to unlock your door with a PIN, an RFID Card/Fob, a key or a Smart phone via Bluetooth.
• Designed with elegance, matched with the convenience of the smart features and functions whilst not compromising on security, reliability and performance.
• Giving you the ultimate control of your home security.

Features:

• Mobile access.
• Digital touch pad.
• Voice guided programming.
• Programmable administration code/card registration.
• Up to 100 RFID Cards.
• 10 Pin codes.
• Visitor friendly with optional passage mode.
• Wrong try lock-out delay.
• Low battery alert & external emergency power supply.
• Field selectable handing.
• 3 x Mechanical key override.
• Allows the administrator to generate a pin code for a visitor/short term stay guest according to specific time periods. These can then be shared via multiple methods of media, such as email or text messages.
• Providing the reassurance in knowing that by exceeding the highest levels of Australian standard for both mechanical security and durability (AS4145.2) the M Series is truly the best solution for any digital locking solution.
• Requires no additional wiring, providing a quick and easy installation for new or existing homes.
• With the assistance of step by step voice guided programming, setting up and maintaining the M Series is as simple as entering the Administrator PIN and following the voice prompts. An RFID Card/Fob can be added as Administrator once programmed.

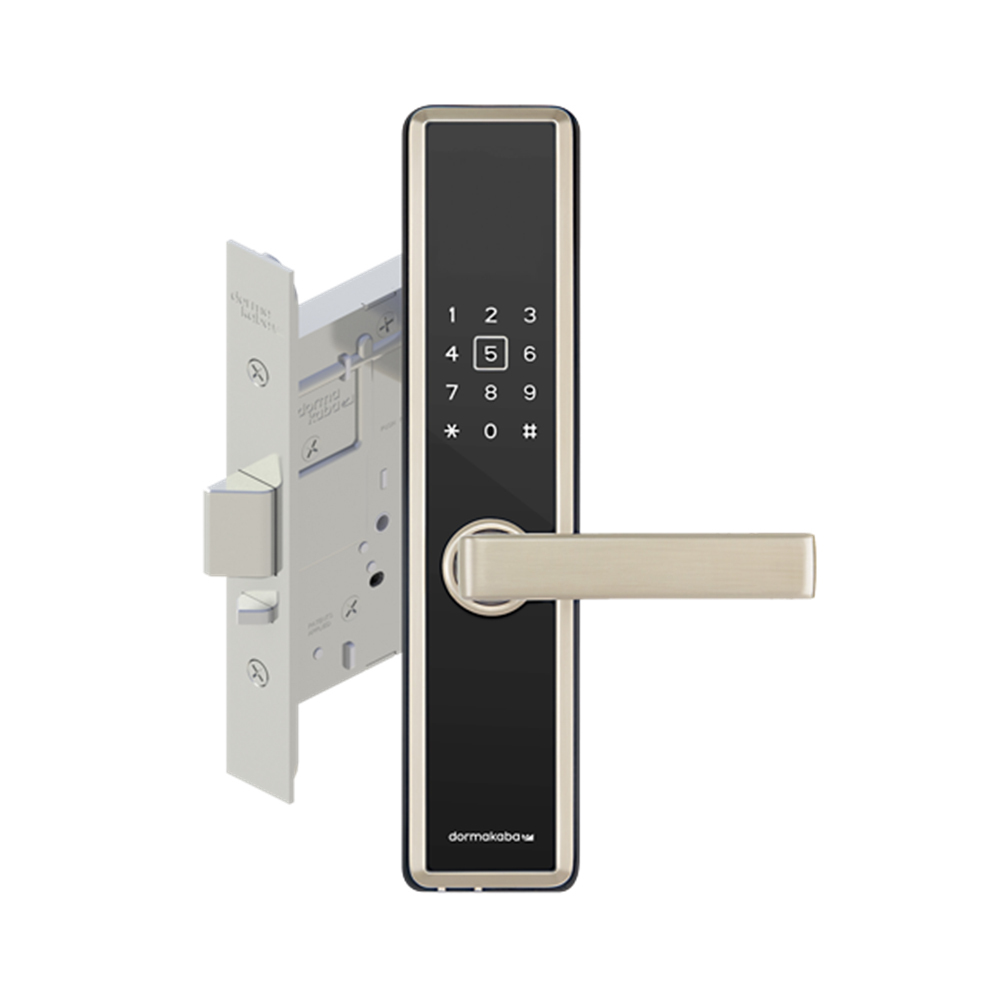

• supplied as standard with the Australian style dormakaba MS2602 Series mortice lock

Specifications:

• Platform:
  • iPhone (iOS 8.0 and above)
  • Android-based Smart phone (Android 5.0 and above)
• Accepts PIN, RFID Cards/Fobs Or Smart Phone: Yes
• Battery Operated Digital Lock: Yes
• Door Thickness: 35mm to 50mm
• Includes: 2 x standard & 2 x small cards
• Has Key Override: Yes
• Has Passage Function: Yes
• On-door Code Change: Yes

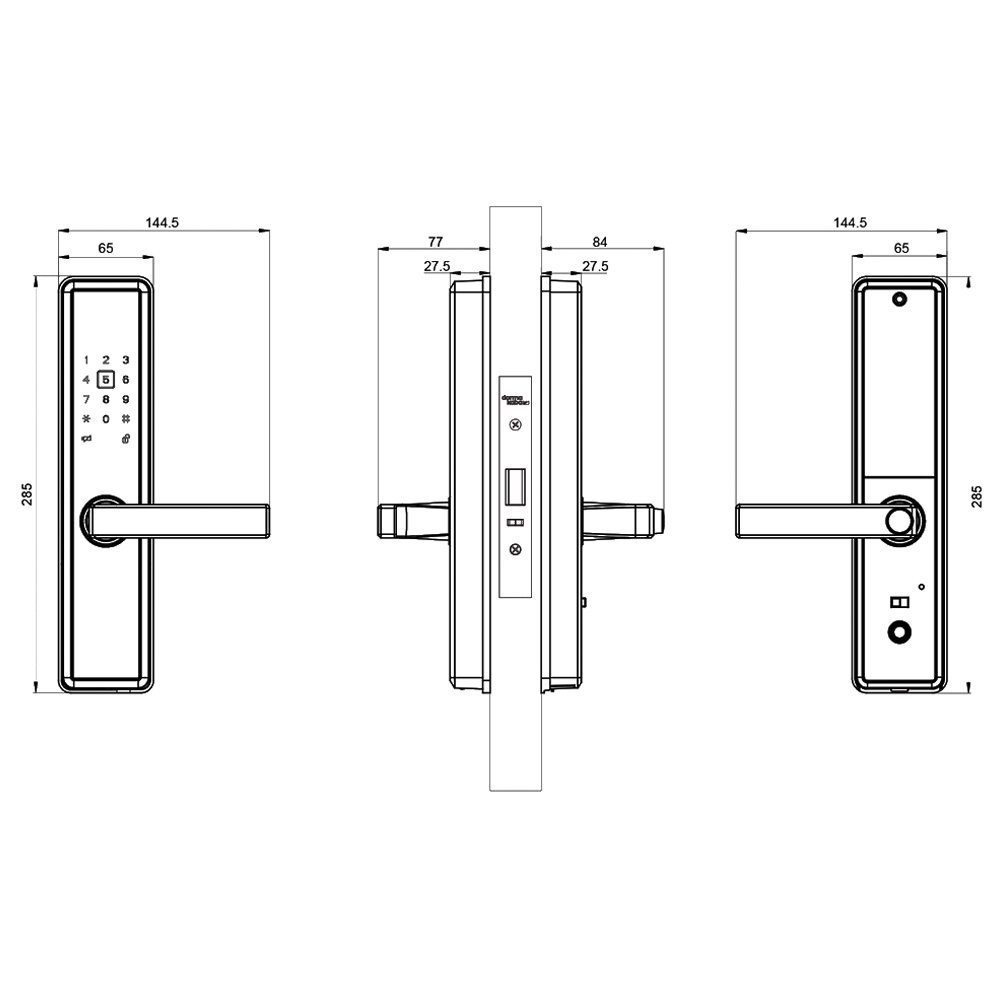

• External Body: 65 x 285 x 27.5mm (W x H x D)
• Internal Body: 65 x 280 x 27.5mm (W x H x D)
• Weather Protection: IP54
• Power Input: 4 x 1.5V AA Alkaline Battery
• Fire Rated: Yes
• Low battery alarm: Yes
• Break-in and tamper alarm: Yes
• Wrong pin code lockout alarm: Yes
• Passage mode: Yes
• One-time password: Yes
• Password sharing: Yes
• Scramble password: Yes
• Finish: Black with Brushed Nickel Rim

Fire Rating:

• M5 Series has been successfully tested on fire door assemblies in accordance with AS1905 Part1: Fire resistance doorsets
